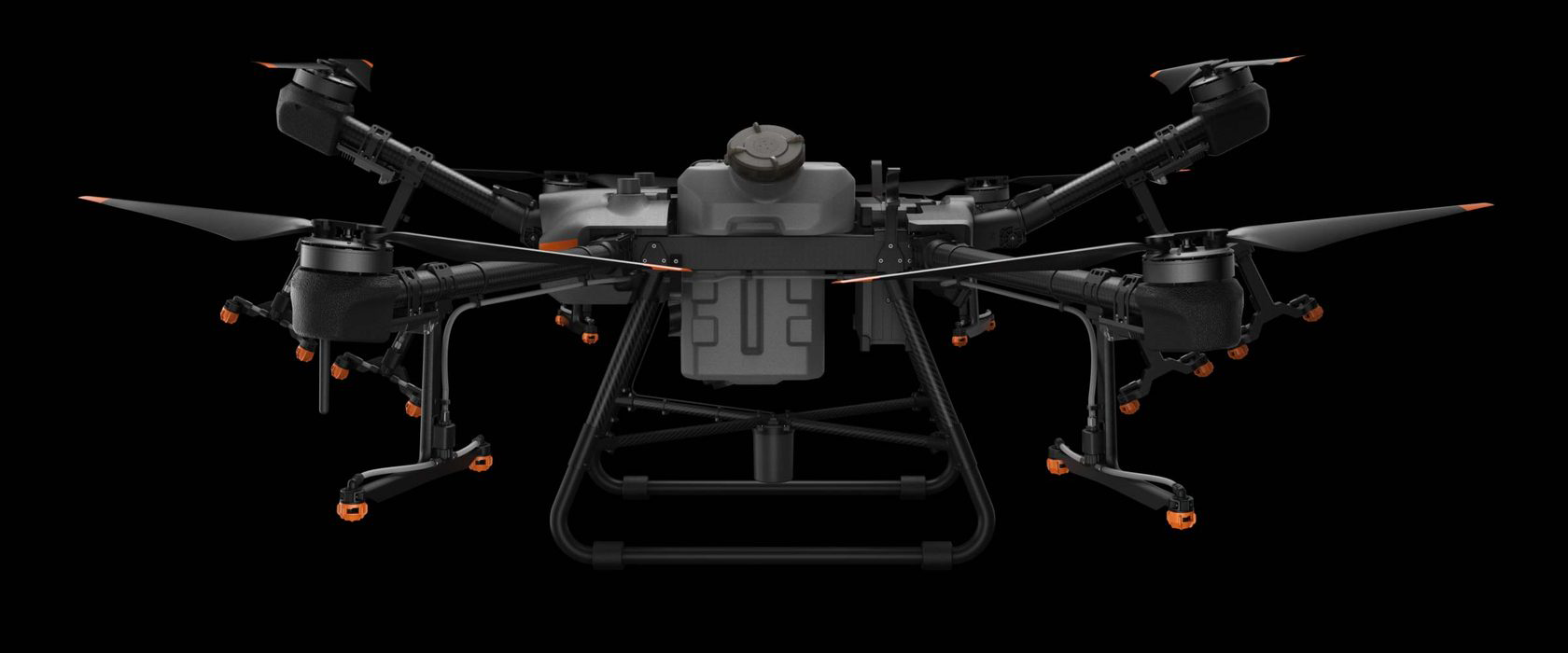

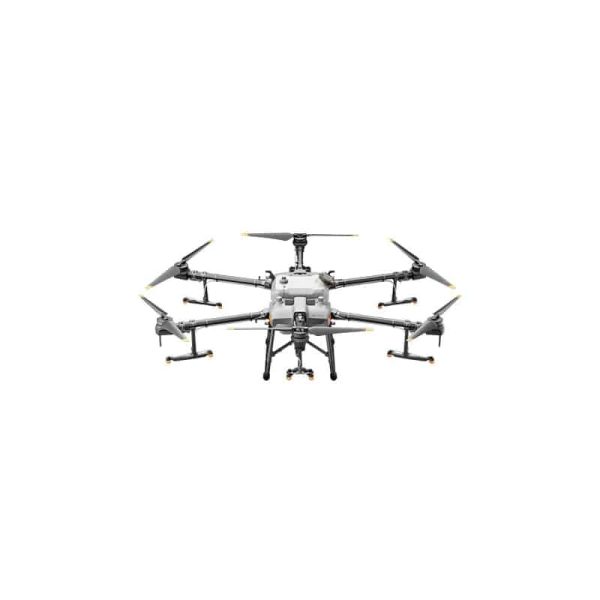

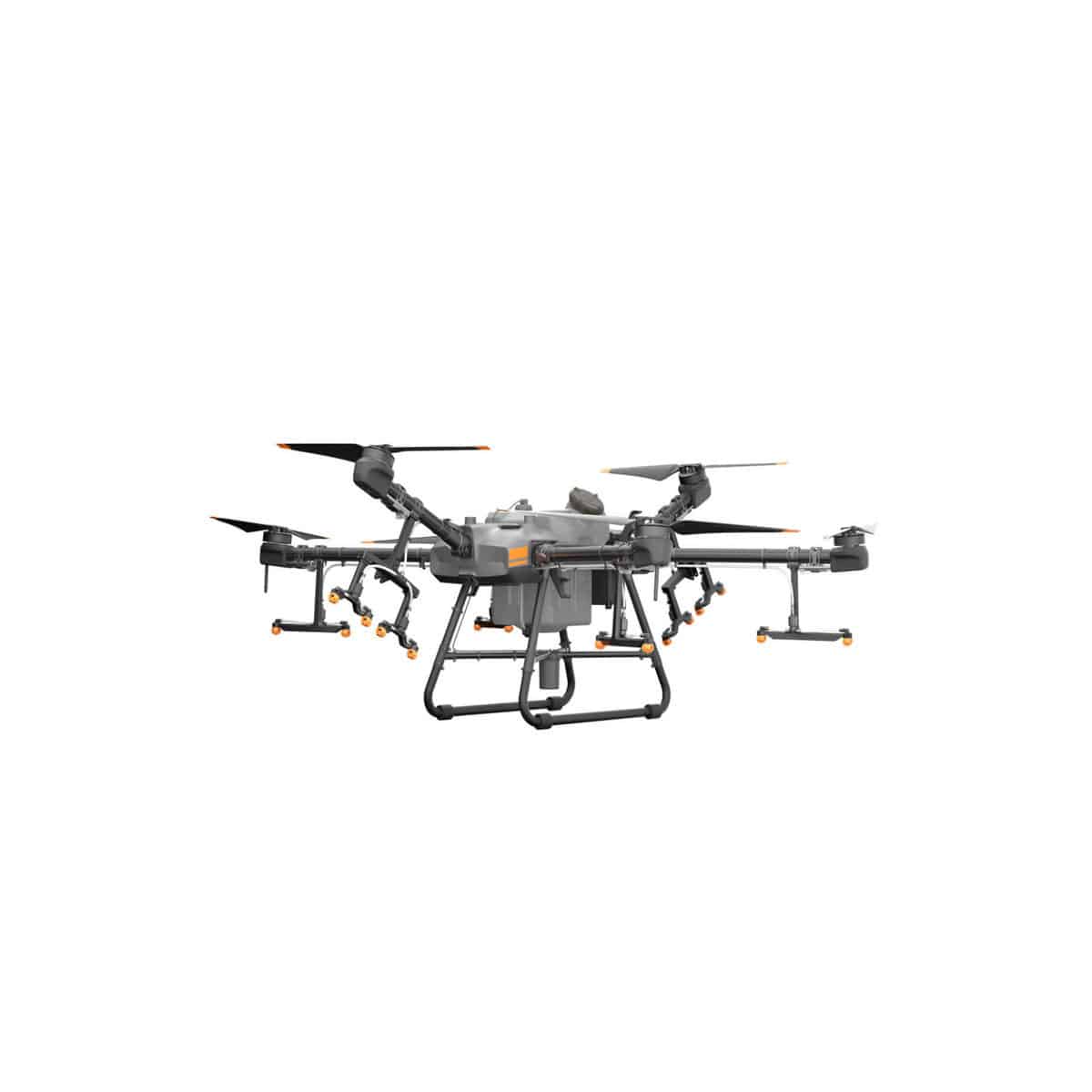

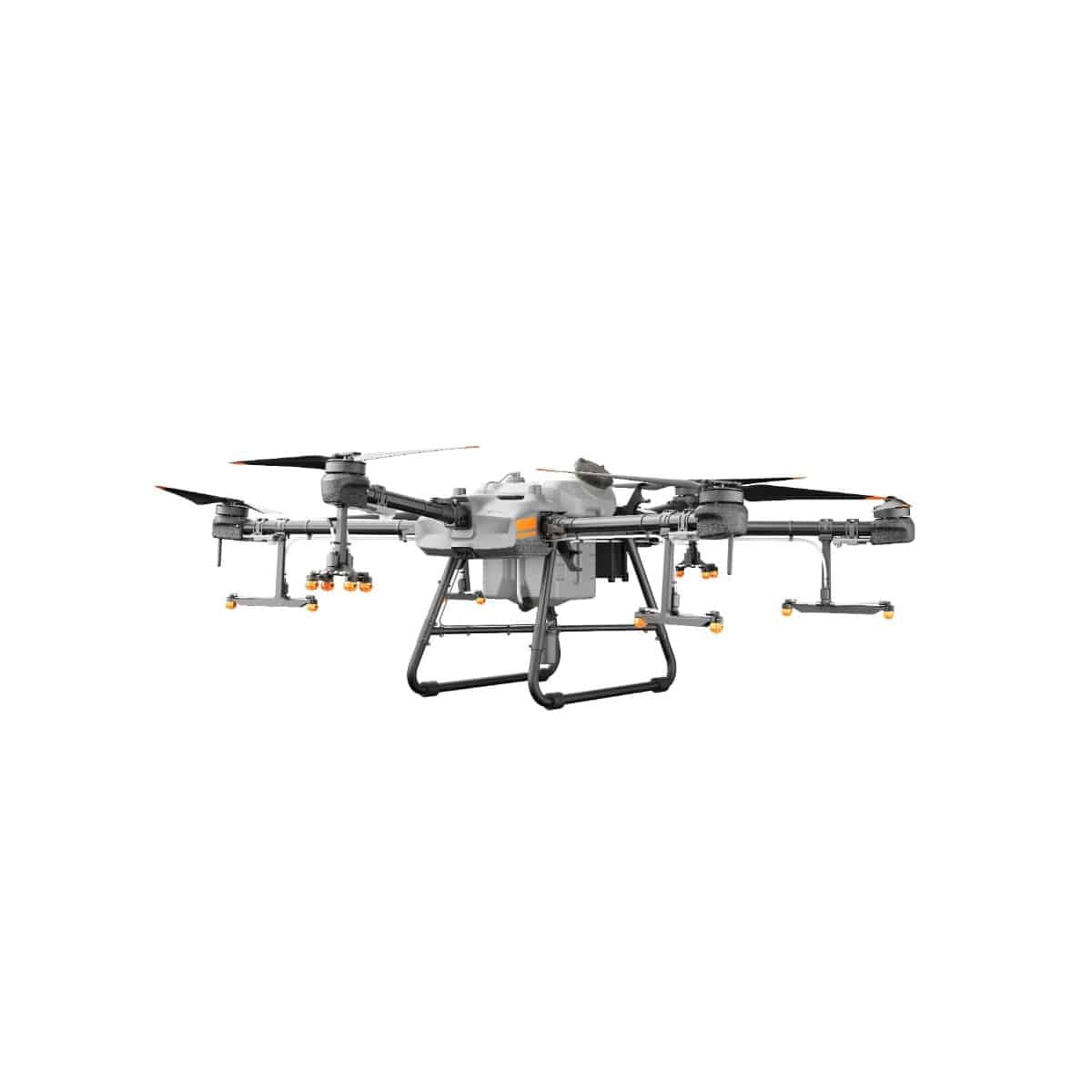

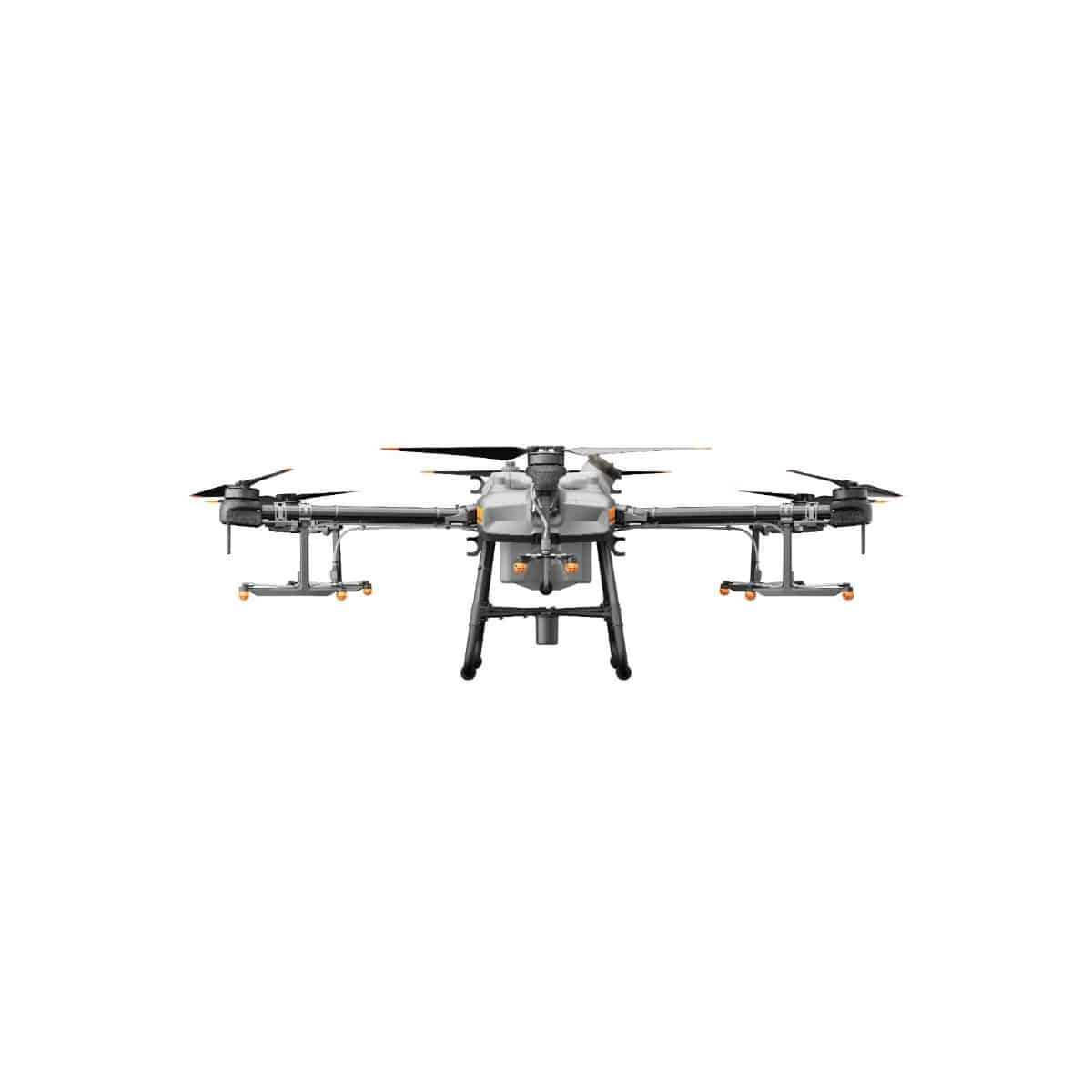

DJI Agras T30
- 16 nozzles and 8 solenoid distribution valves;
- adjustable angle of inclination of the pylons allows processing both the upper and lower parts of plants, which is especially important when processing orchards, vineyards, etc.;
- 2 cameras for monitoring the situation, located in front and behind;ановки, расположенные спереди и сзади;
- the redesigned folding system makes the drone more compact, reducing its size by 80% compared to the working state;
- high security pylon locks; more capacious batteries, etc.
Description
DJI Agras T30
Power, Opportunity, Versatility
and High Security
A New Flagship for Digital Agriculture
With a 30 liter spraying tank, the DJI Agras T30 takes aerial spraying efficiency to new heights. A revolutionary transforming body enables more effective spraying, especially for fruit trees. Using DJI digital agriculture solutions, the T30 helps reduce fertilizer use and increase yield with effective, data-driven best practices.
30L Spray Tank
Spherical Radar System
IP67 Water and Dust Resistance
Dual FPV Cameras for Monitoring
High Precision Operation
Smart Agriculture Cloud Platform
Branch-Targeting Technology for Thorough Penetration
With revolutionary branch-targeting technology and adjustable arms, the Agras T30 penetrates thick canopies with oblique spraying, ensuring an even application of liquid pesticides and doubling the number of droplets. With the help of the Smart Agriculture Cloud Platform and cloud-based mapping, users can manage a 3D digital orchard, making it easy to get started with digital agriculture.
Efficient Spray System
A 16-nozzle layout further improves droplet penetration. Eight sets of solenoid valves enable independent variable frequency control and spraying in turn. The horizontally opposed six-cylinder double plunger pump design provides strong spraying power and a high flow rate of up to 8 liters per minute.
16 Hectares per Hour
Equipped with a large 30kg spray tank, the Agras T30 has a spray width of 9 meters, and field spraying efficiency of 40 acres/hour, 33.3% more than its previous generation.
Eliminate Blind Spots with a Spherical Radar System
The spherical radar system perceives obstacles and surroundings in all environments, weather conditions, and viewing angles, regardless of dust and light interference. Automatic obstacle avoidance and adaptive flight functions help ensure safety during operation.
Dual FPV Cameras for Improved Awareness
Equipped with dual FPV cameras, the Agras T30 provides clear front and rear views and lets you check flight status without needing to turn the aircraft mid-flight. And a bright searchlight doubles the aircraft’s night vision capabilities, creating more nighttime operation possibilities.
Designed for Long Term Service
The Agras T30 control module has a fully enclosed structure for added durability. All critical components have three layers of protection and are IP67 rated. Ideal for long term use of pesticides and fertilizers, and to resist dust and corrosion.
Flexible folding for convenient transportation
The Agras T30 can be folded by 80%, making it easier to transport. This folding mechanism uses quick-snap locking, redundancies, and an in-app alert to help ensure safe operation.
Autonomous Operation with Optimal Route Planning
The new intelligent route mode independently plans the best route for each operation. A gauge indicates the remaining liquid payload amount and estimated time until refill in real-time, letting operators strike the perfect balance between payload and battery life. The aircraft also supports automatic edge sweeping for extensive spray coverage and easier aerial operation.

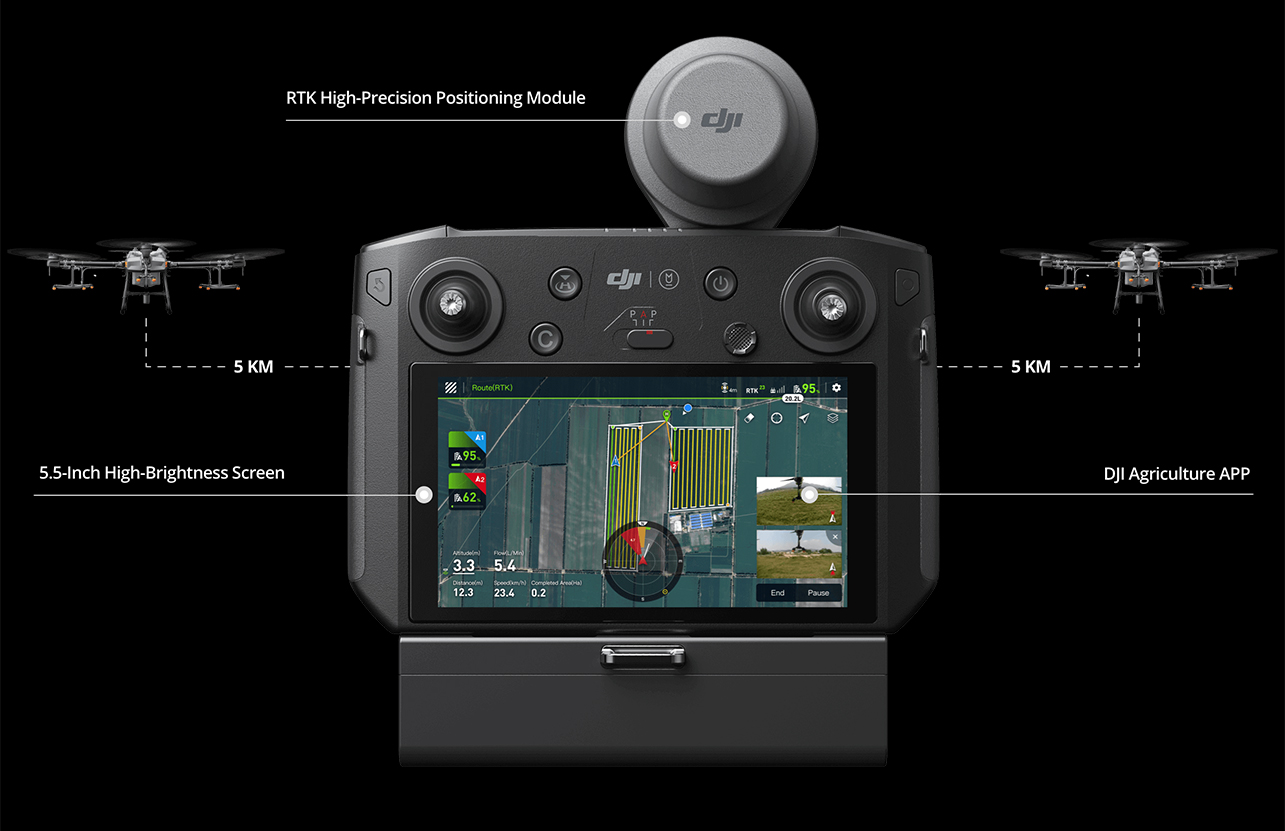

Ultrabright Screen Ultimate Control
An updated remote controller supports stable image transmission from up to 5 km away, 67% more than the previous generation. For increased productivity, one remote controller can operate multiple drones at once. The standard RTK high-precision positioning module implements centimeter-level operation planning. Additional enhancements include stronger signaling, anti-interference, and operational stability. A bright 5.5-inch screen delivers clear visuals , even in harsh lighting conditions. The new DJI Agriculture app provides a smooth user experience and more intuitive operation.
Two Batteries + Charger for Continuous Operation
With fewer supporting components needed, the Agras T30 is easier to transport. A newly designed intelligent battery is covered by warranty for 1,000 charges and 4,942 acres of flight; this ultra-long service life significantly reduces operating costs. The charging station and smart charging hub can fully charge a battery in 10 minutes, allowing for continuous operation with just two batteries and one charger. The standard safety box helps ensure battery safety and easy equipment storage.

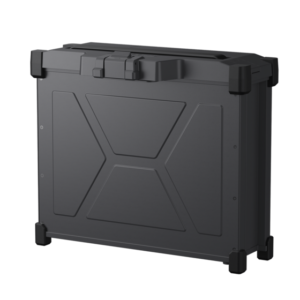

DJI Agras T30 Intelligent Flight Battery
Capacity up to 29000 mAh
1000 guaranteed charge cycles
Waterproof and corrosion resistant.

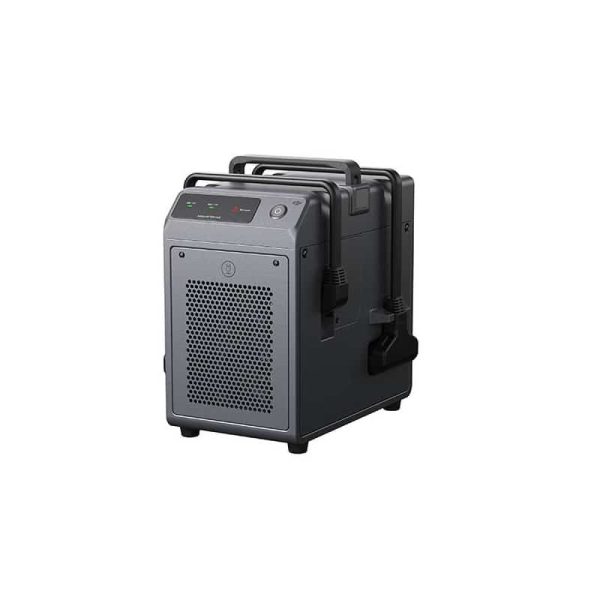

DJI Agras T30 Smart Charging Manager
Charging power 7200W
Super fast charging in 10 minutes
Dual Channel Adaptive Power

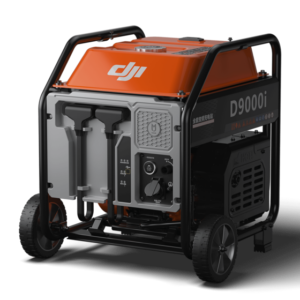

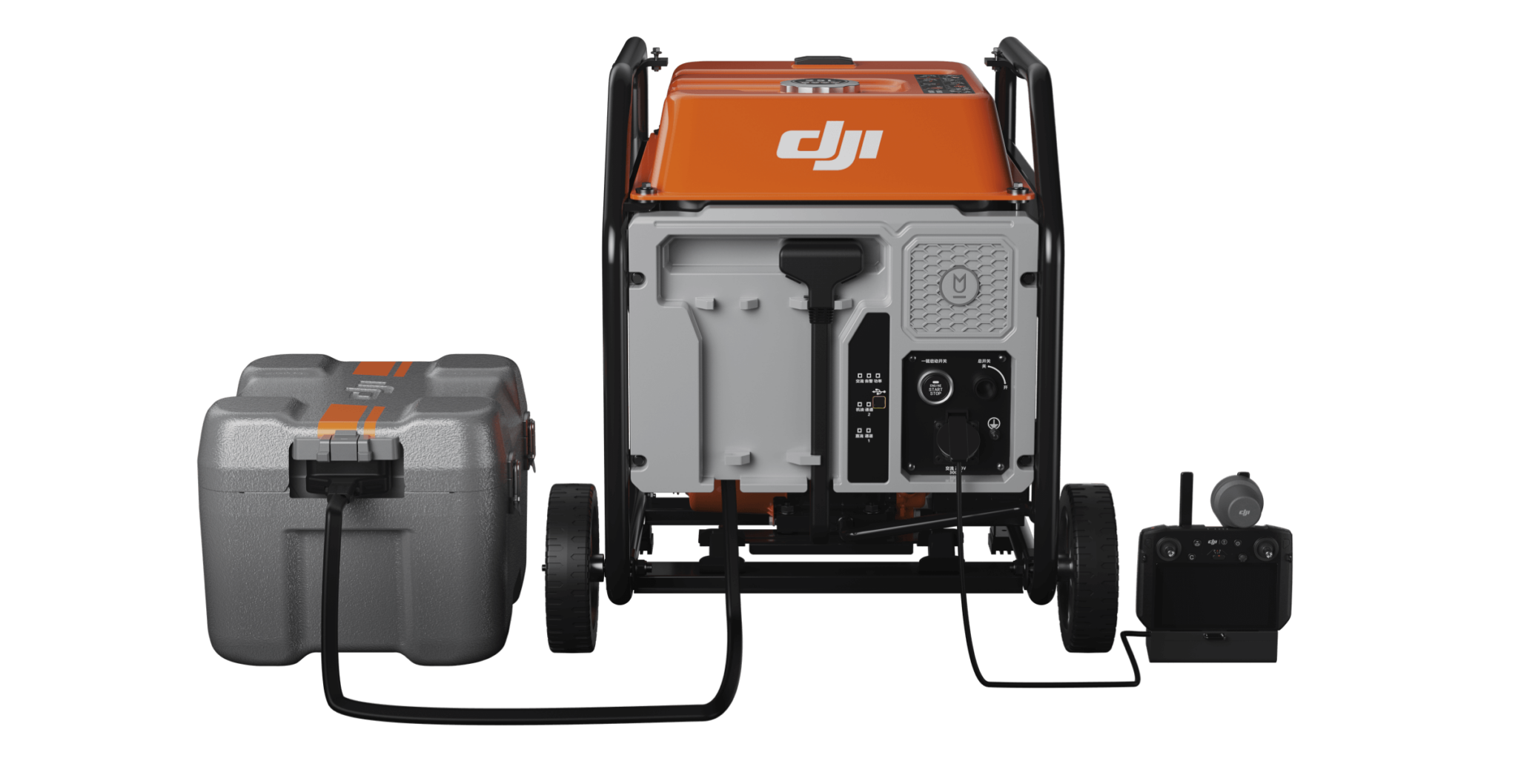

DJI D9000i Charging Station
DC output 7200W
Fuel tank 25 liters
AC output 220
Built-in starter at the push of a button
Efficient Spray System
This updated spreading system has a capacity of up to 40L a spreading width of up to 7 meters, and an hourly spreading capacity of 1 ton. This system also supports real-time weight monitoring and has an anti-rotation sensor, allowing more accurate refill alerts. The T30’s overall water-resistance rating of IP67 rating makes it washable and corrosion-resistant ideal for spraying of fertilizers, seeds, and feed. When used with digital agriculture solutions, the Agras T30 implements variable spreading, reducing fertilizer use while increasing yield.

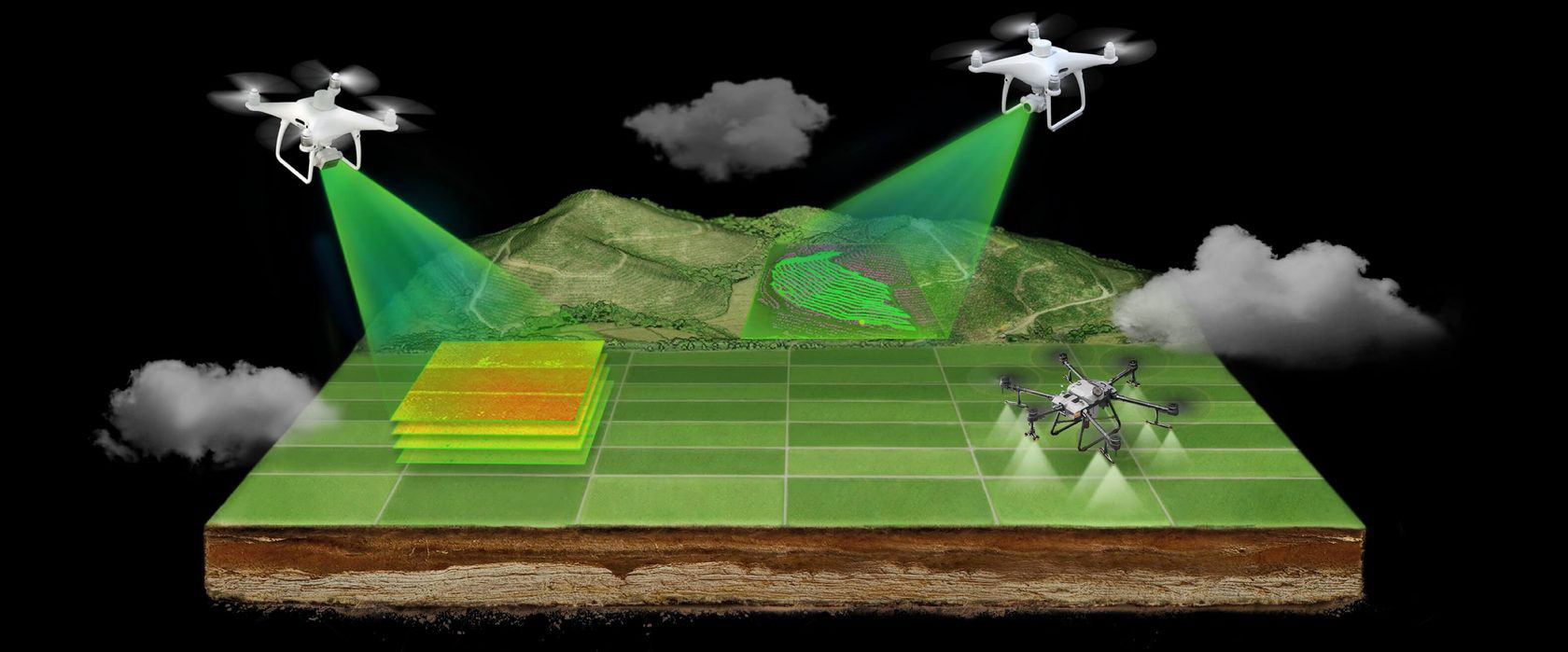

Cloud-Based 3D Farming: Digital Agriculture is Here
With the Smart Agriculture Cloud Platform, users can perform cloud-based mapping of orchard and farmland scenarios to generate smart flightpaths. This platform is equipped with an AI recognition system to patrol fields, identify growth, monitor disease or pests, and monitor agricultural conditions efficiently. Pairing this system with the DJI P4 Multispectral allows users to apply solutions based on specific variables according to an automatically-generated farmland prescription map.
Additional information
| Hourly work efficiency | 16 ha |
|---|---|
| High-precision radar | Spherical Omnidirectional Radar System |
| Remote control planning accuracy | RTK, GNSS |
| Pipe air exhaust | Yes |
| 3D operation planning by the AI smart engine | Yes |
| High-precision flowmeter | Yes (Dual-channel electromagnetic flowmeter with an error of ±2%) |
| Level gauge | Continuous level gauge (with real-time pesticide load detection and intelligent supply-point prediction) |
| Max spray flow | 7.2L/min (with the XR11001 nozzle) |
| Pesticide tank installation method | Stationary |
| Battery installation method | Removable batteries |
| Single remote control for multiple drones | Yes (Single remote control for up to three drones) |
| D-RTK technology | Yes |
| Top-view radar module | Yes |
| Flight laser function | Yes |
| Intelligent endurance/return function | Yes |
| Intelligent supply-point prediction | Yes |
| Front-view FPV | Yes |
| Rear-view FPV | Yes |
| Coordinated turning function | Yes |
| Branch targeting technology | Yes |
| Dimensions in package, mm (L, W, H) | T30: 738x677x683; |
| Total weight (without batteries) | 26.4 kg |
| Max Takeoff Weight | 76,5 kg (near sea level) |
| Max thrust-to-weight ratio | 1.70 @ takeoff weight of 66.5 kg |
| Hovering precision (with good GNSS signal) | With D-RTK enabled: |
| RTK and GNSS frequency bands | RTK: GPS L1/L2, GLONASS F1/F2, BeiDou B1/B2, and Galileo E1/E5 |
| Maximum power consumption | 13000 W |
| Flight time [1] | 20.5min (@29,000 mAh & takeoff weight of 36.5 kg) |
| Maximum pitch angle | 15° |
| Maximum operating flight speed | 7 m/s |
| Maximum level speed | 10 m/s (with good GNSS signal) |
| Maximum tolerable wind speed | 8 m/s |
| Maximum flight altitude | 4,500m |
| Recommended operating ambient humidity | <93% |
| Height maintenance and terrain adaptation [3] | Height measurement range: 1-30 m |
| Obstacle avoidance system | Perceivable distance: 1.5-30 m |
| Operating Frequency | SRRC/NCC/FCC: 24.05 – 24.25 GHz |
| Overhead obstacle avoidance [3] | Perceivable distance: 1.5-10 m. View angle (FOV): 80° |
| EIRP | SRRC: < 13 dBm; NCC/MIC/KCC/CE/FCC:< 20 dBm |
| Max. Battery Life | 2 hours |
| Battery Type | 2S Lipo |
| Capacity | 4,920 mAh |
| Voltage | 7,6 V |
| Energy | 37.39 Wh |
| Output Voltage and Current | 8.7V and 6A |
| Total weight | 11.5 kg |
| Output voltage | 40-60 V |
| Rated Power | 7200 W |
| Charging current | 120 A |
| Output channel quantity | 2 |
| Protection Features | Over-temperature, over-voltage, under-voltage, short-circuit, and fan stall protection |
| Operating Temperature | -20℃ to 45℃ |
| Charging safety | AC wire protection, power wire protection, and charge connector protection |
| Max rotor distance | 2145 mm |
| Stator size | 100×18 mm |
| Maximum Power | 3,600 W/rotor |
| Diameter × pitch | 38×20 inch |
| Max operating current (continuous) | 60 A |
| View angle (FOV) | Horizontal: 129°, vertical:82° |
| Resolution | 1,280×720 15-30 fps |
| Max light intensity | 13.2 lux @ 5-meter direct light |
| Operation tank volume | 30L at full load |
| Operating load [2] | 30 kg at full load |
| Nozzle model | SX11001VS (standard) |
| Nozzle quantity | 16 |
| Maximum spray flow | SX11001VS: 7.2L/min |
| Atomized particle size | SX11001VS : 130 – 250 μm |
| Maximum effective spray width | 4-9 m (with 12 nozzles and a distance of 1.5 to 3 meters to crops) |
| Water pump model | Plunger pump |
| Operating voltage | 60 V |
| Maximum flow | 4 L/min ×1 |
| Measuring Range | 0.25 – 20 L/min |
| Measurement error | << ±2% |
| Measurable liquid | Conductivity > 50 μS/cm, |
| Spreading system weight | 4,1 kg |
| Applicable materials | Solid dry particles with a diameter of 0.5 to 5 mm |
| Spreading tank volume | 40 L |
| Max load of the spreading tank [2] | 40 kg |
| Water-resistance rating | IP67 |
| Input Voltage | Power: 60V |
| Max Power | 60V@250W |
| Recommended operating ambient temperature | 0° to 40°C (32° to 104°F) |
| Model | RM500-ENT |
| Operating frequency of the Ocusync Industry Edition | 2.4000 – 2.4835 GHz |
| Ocusync Industry EditionEffective signal range at the operating frequency (without interference and blockage) | SRRC: 5 km MIC / KCC / CE: 4 km FCC: 7 km |
| EIRP of the operating frequency of the Ocusync Industry Edition | 2,4 GHz |
| Wi-Fi Protocol | Wi-Fi Direct, Wireless Display, and 802.11a/g/n/ac |
| Wi-Fi operating frequency | 2.4000 – 2.4835 GHz |
| Wi-Fi EIRP | 2,4 GHz |
| Bluetooth Protocol | Bluetooth 4.2 |
| Bluetooth Communication Frequency | 2.4000 – 2.4835 GHz |
| Bluetooth EIRP | SRRC/MIC/FCC/CE/KCC:6.5 dBm |
| Positioning | GPS+GLONASS dual mode |
| Display screen | 5.5-inch screen with a resolution of 1920×1080, |
| Operating memory (RAM) | 4GB |
| Storage space (ROM) | A microSD card with 32 GB and extensible storage space for up to 128 GB, transfer speed rated as UHS-I Speed Grade 3 |
| HDMI | HDMI 1.4 |
| Supported drones | Unmanned aerial vehicles for plant protection T30, |
| Operating power consumption | 18 W |
| Operating ambient temperature | 0°C to 45°C |
| Storage ambient temperature | -30℃ to 60℃ |
| Charging ambient temperature | 5℃ to 40℃ |
| Built-in Battery | 18650 lithium-ion battery (5,000 mAh at 7.2V) |
| Battery life | 2 hours |
| Charging method | Use a standard 12V/2A USB fast charger |
| Charging Time | 2.5 hours (use the 12V/2A USB fast charger when the remote control is powered off) |
| Power supply current/voltage of the remote control USB-A port | 5 V / 1.5 A |
| Dimensions | 610 × 520 × 625 mm |
| Weight | 65 kg |
| Output channel | 1. DC output channel |
| DC output parameters | 40V – 60V |
| AC output parameters | 220/100 V (depending on the region of operation) |
| Charging power | 7200 W |
| Battery Charging Time | A full battery charge cycle is 9-12 minutes for T30 batteries |
| Fuel tank capacity | 25 liters |
| Launch Method | Key start, manual start |
| Voltage ripple when charging | 200 mV |
| Max engine displacement | 420 CC |
| Max engine power | 9000 W |
| Engine speed | 3600 RPM |
| Fuel type | 92 octane gasoline |
| Control fuel consumption | 0.6 l/per T30 battery |
| Engine oil brand | SAE 10W-30 |
