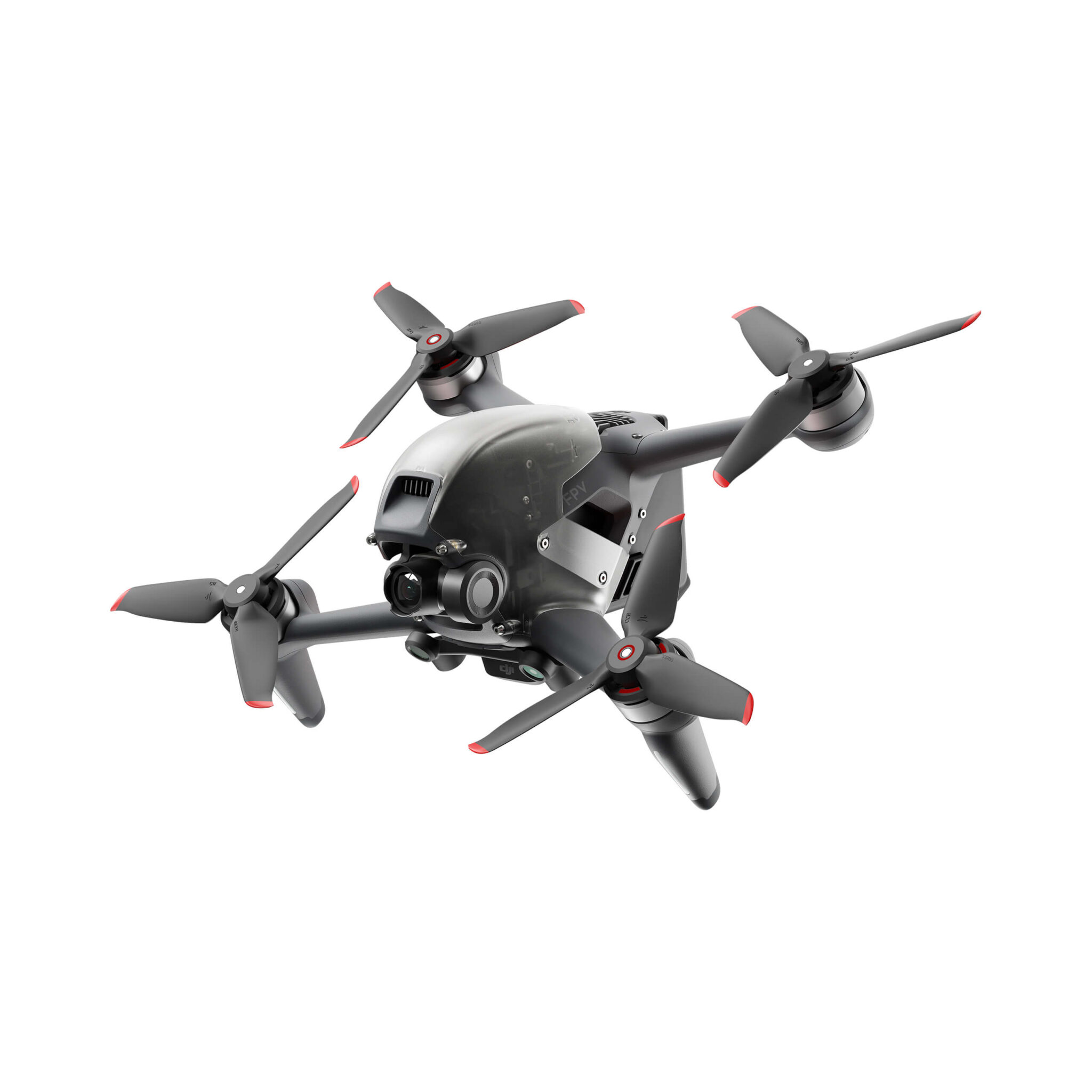

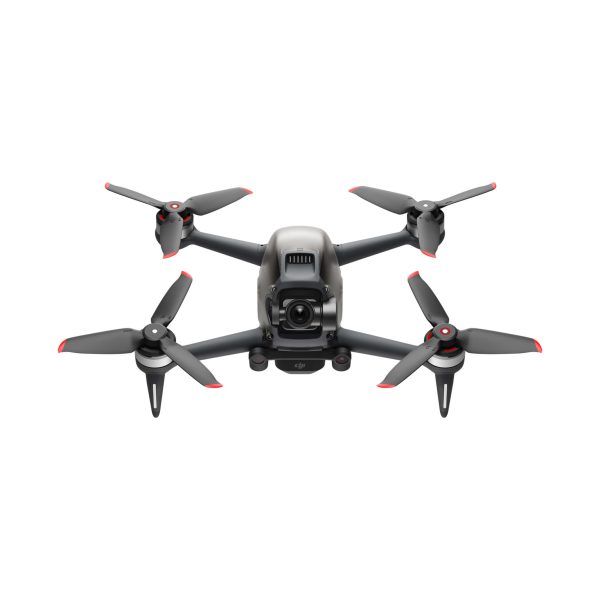

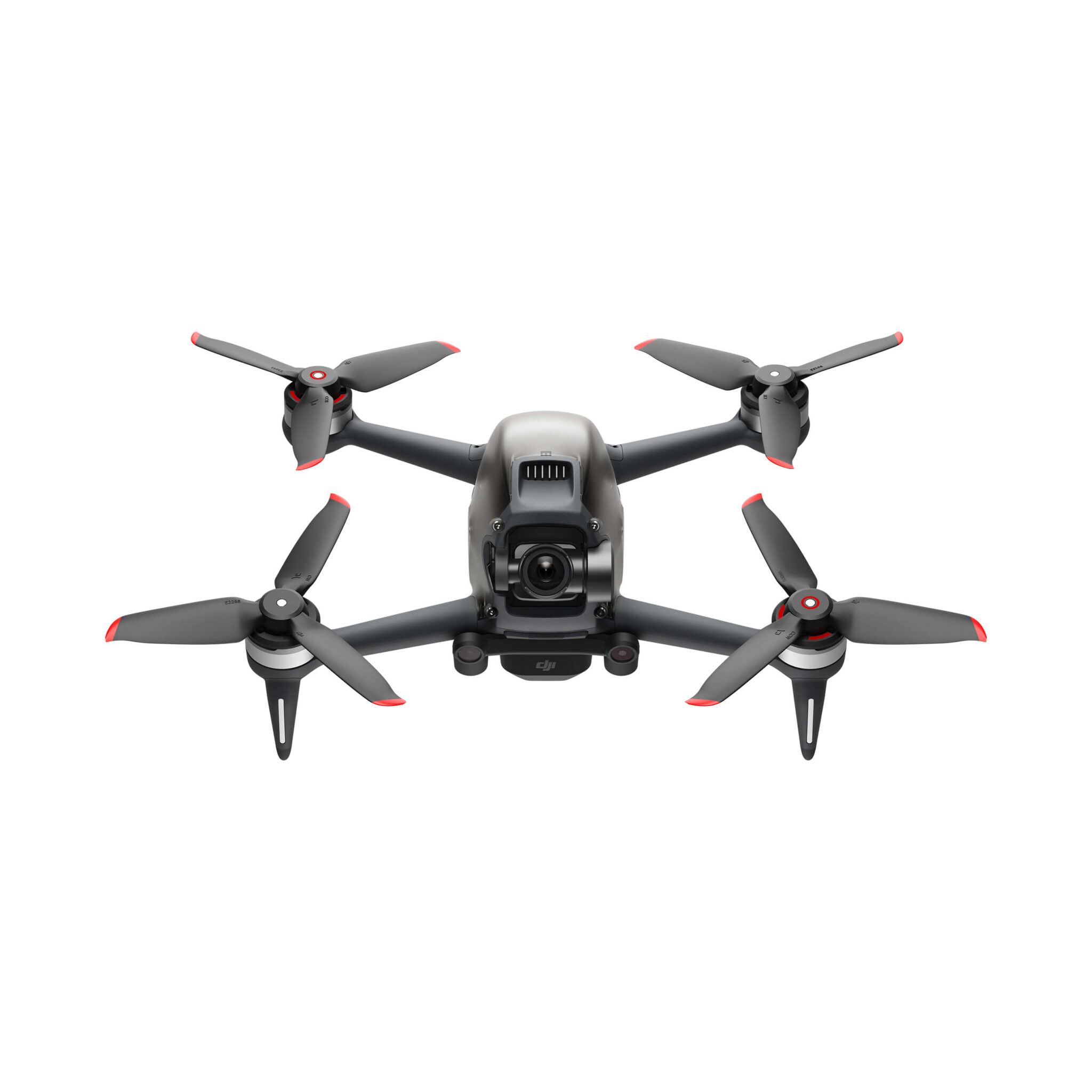

DJI FPV Combo Drone

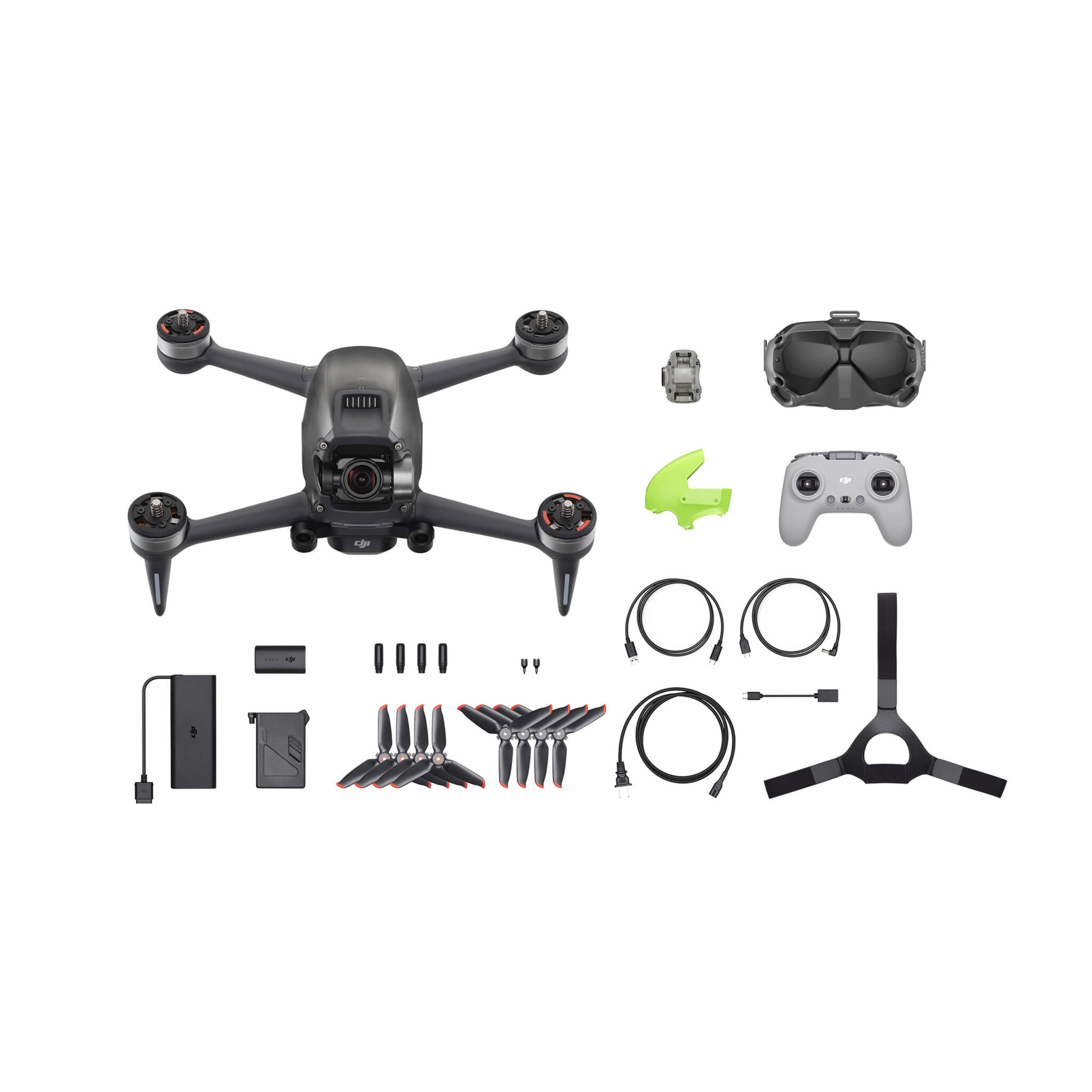

Combo – DJI FPV system kit includes not only a high-speed drone with an excellent camera, new generation FPV goggles, but also additional equipment. Advantages of DJI FPV:
- powerful power plant
- new O3 data communication system (OcuSync 3.0)
- high quality photo and video shooting
- an advanced safety system that will surprise not only experienced pilots, but also beginners
- Incredible piloting and aerial stunts without sacrificing filming
Description
DJI FPV
REDEFINE FLYING
Go into the beyond and redefine flying
DJI FPV will give you a completely new experience and allow you to race through the clouds at incredible speed. However, at the same time, you will not lose your control over the aircraft and make your old dream of flying come true. Piloting will be simple and convenient thanks to the capabilities of the new DJI platform.
Immersive Flight Experience
4K/60fps Super-Wide FOV
HD Low-Latency Transmission
Brand-New S Mode
Intuitive Motion Controller
Emergency Brake and Hover
FPV Has Never Looked This Good

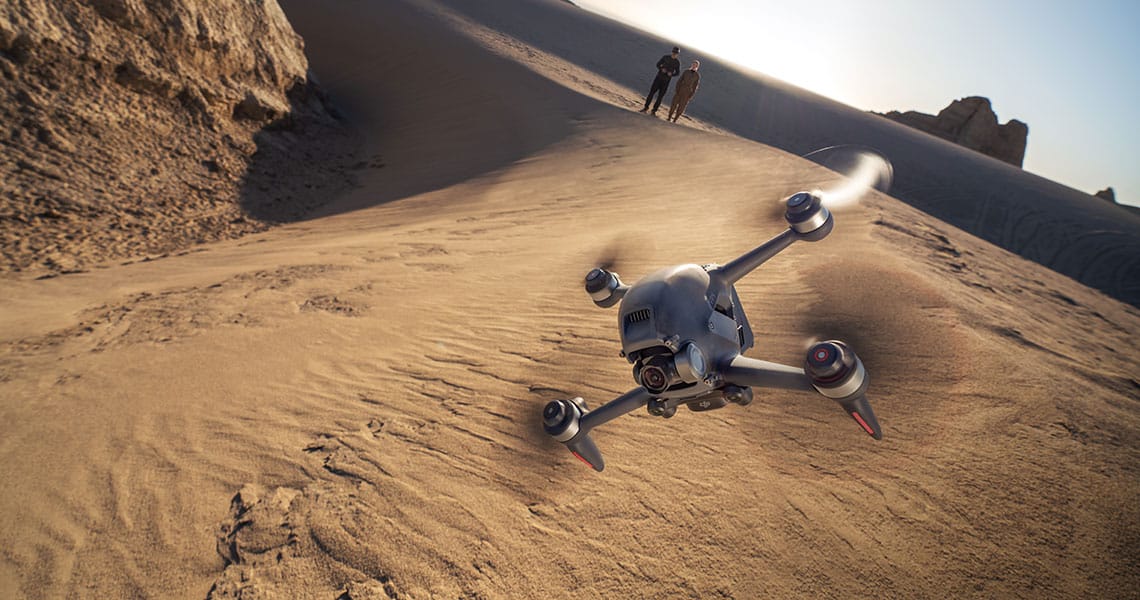

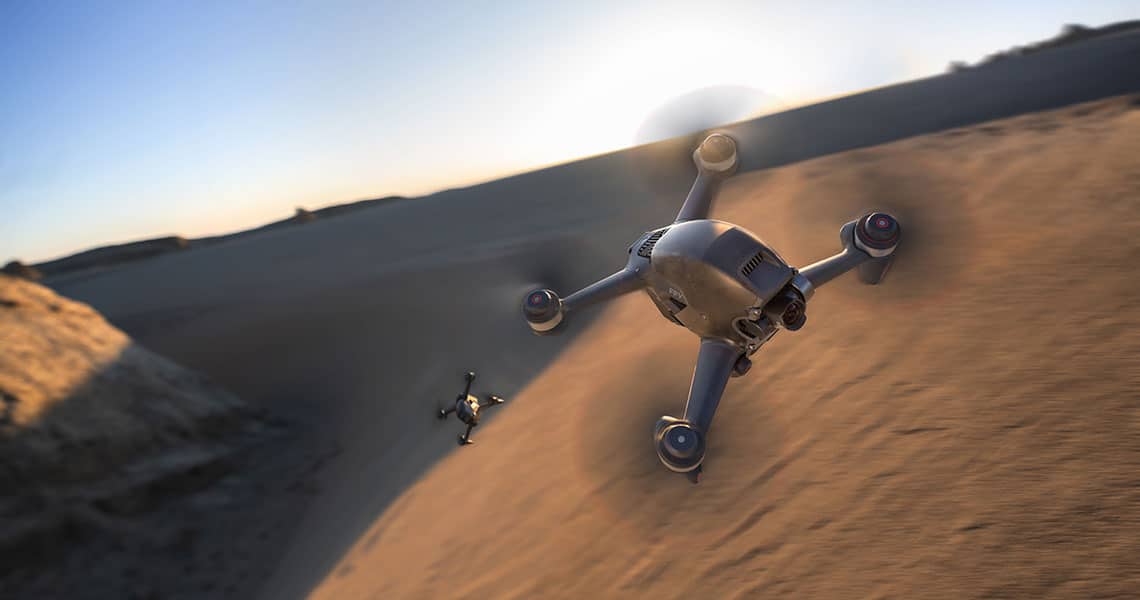

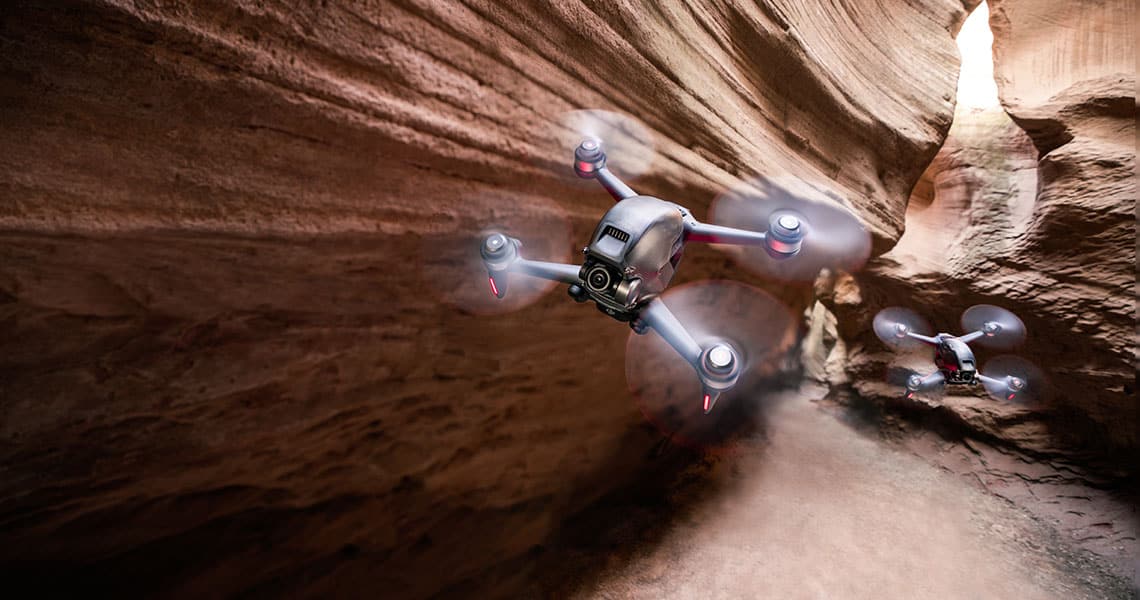

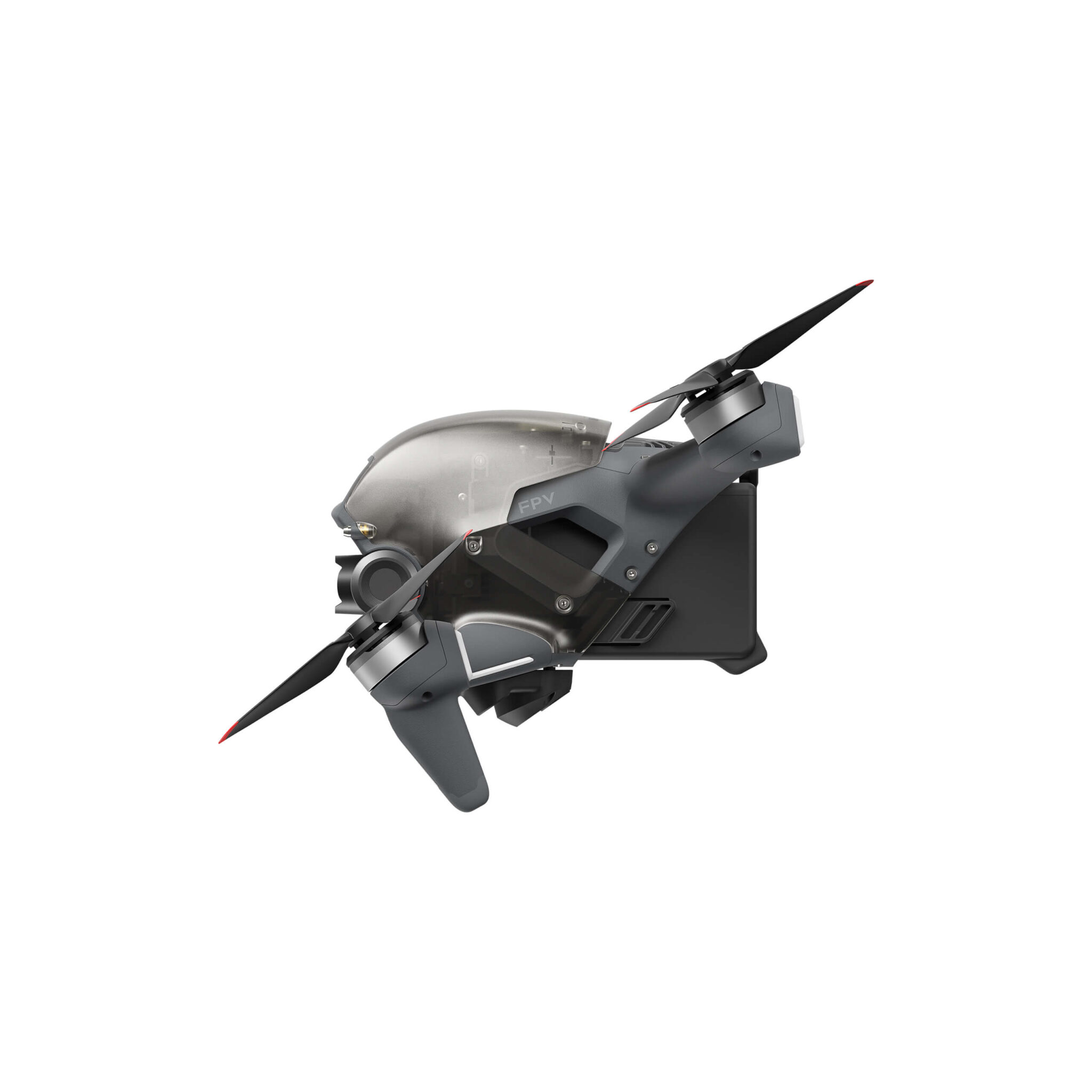

Sleek and aerodynamic, the DJI FPV aircraft delivers powerful propulsion, battery life, and wind resistance making this system as capable as it is visually stunning. DJI FPV stands out in more ways than one.

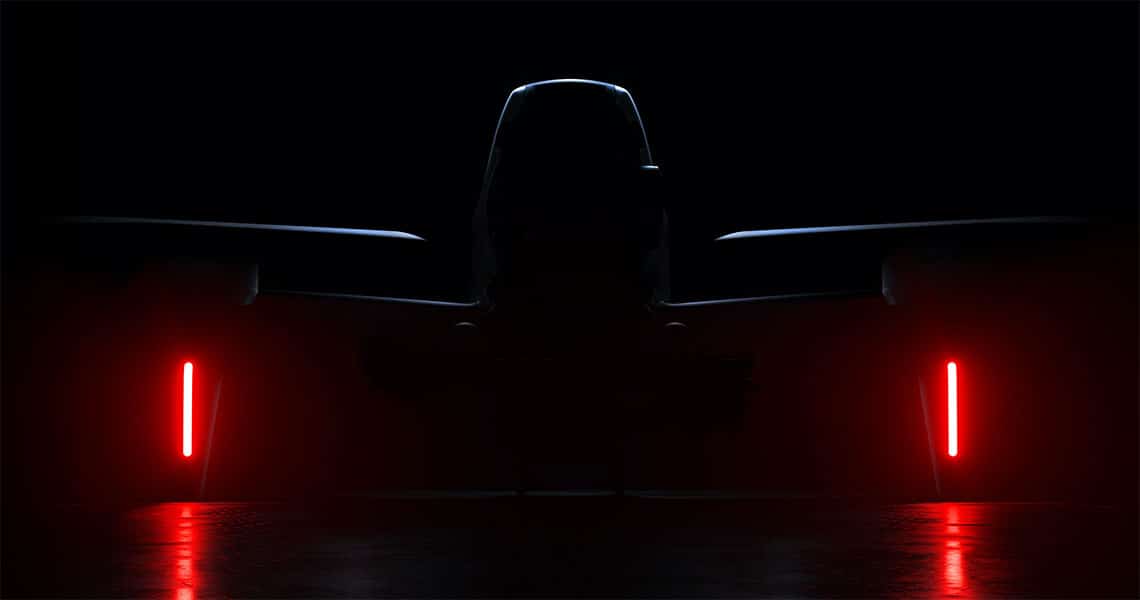

Sporting front LEDs and aircraft arm lights with customizable-color, DJI FPV allows pilots to make their aircraft as unique as they are.
Next-Level Immersion. Unparalleled Control

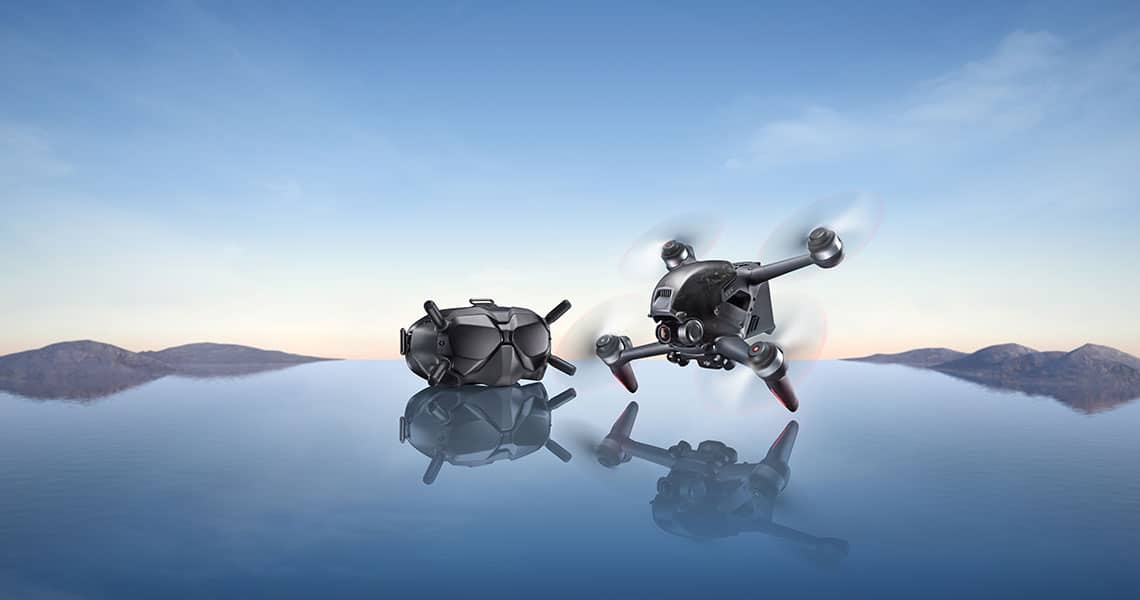

With the new DJI FPV V2 Goggles [1] and 150° ultra-wide field of view [2], we guarantee you the best experience and deepest emotions during your immersive flights. HD video transmission at up to 120fps gives you an ultra-smooth, real-time view of your flight. And this will be the main factor in the smooth viewing of the flight from the first person in real time.
One of the Best Drones for Beginners
DJI FPV is a unique system that will be an amazing discovery for both experienced pilots and beginners. Whether you’re a seasoned FPV pilot or a complete beginner, DJI FPV offers three intuitive flight modes that let anyone fly confidently from day one.
S Mode
Get the dynamic look of FPV footage easily in S mode. This hybrid flight mode combines the freedom of flying manually with the simplified controls of previous DJI drones.
N Mode
Ideal for new users, N mode offers immersive flight with traditional drone flight controls along with DJI safety features like obstacle sensing. [3]
M Mode
Fly in M mode for complete, limitless control and the full FPV flight experience. Customize parameters and enjoy flight and footage unlike anything else. [4]
Stunningly Intuitive
Take your flight experience to new heights with the DJI Motion Controller. This compact device allows the aircraft to maneuver based on your natural hand motions. This isn’t just an FPV innovation. It’s an entirely new way to fly.
Emergency Brake and Hover
Even for experts, manual FPV flight can be intimidating. What can we say about begginers! That’s why DJI FPV comes with an emergency brake and hover feature. Simply press this button on the remote controller while flying in any mode, at any speed. The aircraft will stop and hover stably within a few seconds.
Advanced Safety Features
The DJI FPV drone has become even more comfortable and safe to fly. An auxiliary bottom light, Smart Return to Home (RTH), Low Battery RTH. Also there is forward and downward obstacle sensing. All that integrated into DJI FPV to help ensure a safe flight, even at high speeds. [3]
The Imaging Power You Expect from DJI
The shooting results will correspond to your feelings from the flight. Powerful propulsion capabilities combined with a 150° super-wide FOV provide an unrivaled view. 4x Slow Motion, RockSteady stabilization, and distortion correction give pilots even smoother, more dramatic results.
Unreal Footage
The DJI FPV aircraft can record 4K/60 fps video at up to 120 Mbps. Thanks to this, you will be able to receive footage with high quality details and more. Aerial footage look as exhilarating as the flight.
RockSteady Stabilization
Many pilots want not only to capture great aerial views, but also to perform various tricks with their drone. No matter how dynamic your maneuvers get, RockSteady EIS technology ensures your footage is ultra-smooth. H.264 and H.265 video coding formats are both supported, giving you more video editing options. [5]
Meet O3
The DJI O3 (OcuSync 3.0) Transmission System was adapted to match the unique needs of DJI FPV. Enjoy crystal-clear real-time video transmission, even at distances of up to 10 km. DJI FPV supports auto-switching between 2.4 and 5.8GHz frequencies and provides a video transmission bitrate of up to 50 Mbps [8]. It`s helps to reduce stutter and compression artifacts. High-gain antennas on the aircraft include two transmitters and four receivers to enhance signal, resulting in a stable, reliable video feed. In this case, DJI FPV will automatically return to you if communication problems begin.
The DJI Fly App
Smartphone Live View
The DJI Fly app can display the live view from the goggles on a smartphone when connected via cable. [11]
Edit and Share
With the DJI Fly app, you can playback footage, edit, and share your work on social media, all with just a few taps.
Popular Places[12]
Search for popular shooting locations near you.
1. Before flying DJI FPV, check local laws and regulations. Ensure that your flights are conducted safely and in accordance with all local laws and regulations.
2. The 150° FOV is only applicable when shooting at 50 or 100 fps.
3. Obstacle sensing is only available when the aircraft is in N mode. In this mode, DJI FPV will automatically decelerate when it detects obstacles, but it will not automatically stop.
4. To ensure flight safety when using M mode, it is recommended to have another person present to observe the flight environment. To obtain a more precise control experience when using M mode, adjust the F1 screw on the back of the thrust control stick (right side if flying in Mode 1, left side if flying in Mode 2) to disable recentering.
5. The DJI FPV aircraft supports two video coding formats, while the DJI FPV Goggles V2 only supports H.264.
6. In 810p/120fps Low-Latency mode, the video transmission latency is lower than 28ms; in 810p/60fps High-Quality mode, the video transmission latency is lower than 40ms.
7. FCC-compliant. Measurements were taken in unobstructed environments free of interference. Fly your drone within your visual line of sight unless otherwise permitted. Always follow local rules and regulations.
8. The highest video transmission bitrate is 50 Mbps. Measured in an open, outdoor environment with no obstacles or interference.
9. DJI Care Refresh (DJI FPV) is a service plan that provides you with greater peace of mind during flight. DJI Care Refresh (DJI FPV) provides replacements for a small additional cost. If you purchase DJI Care Refresh (2-Year Plan), you will also enjoy an extension of the original warranty by up to two years (extension duration varies by region).
10. The DJI Virtual Flight app currently supports only iOS devices.
11. This feature is only available when using DJI FPV. Transmitted images from the goggles to the app can be sent to a smartphone via cable (USB-C to USB-C or USB-C to lightning).
12. The Fly Spots feature is currently available only in Mainland China. All flight locations displayed by the Fly Spots feature are based on voluntarily-shared location tags from SkyPixel users. DJI never collects or shares user data without user consent. Always check and follow the applicable rules wherever you fly.
Additional information
| Взлетная масса | около 795 г |
|---|---|
| Размер по диагонали | 245 мм |
| Макс. скорость набора высоты | Режим M: Без ограничений |
| Макс. скорость снижения | Режим M: Без ограничений |
| Макс. скорость | 140 км/ч |
| Макс. ускорение | 0-100 км/ч: 2 с (в идеальных условиях при полете в режиме M) |
| Макс. высота полета над уровнем моря | 6000 м |
| Макс. время полета | Прибл. 20 минут (измерено при полете со скоростью 40 км / ч в безветренную погоду) |
| Макс. время остановки в воздухе | Прибл. 16 минут (при полете в безветренную погоду) |
| Макс. расстояние полета | 16,8 км (при полете в безветренную погоду) |
| Макс. допустимая скорость ветра | 39-49 км/ч (25-31 миль/ч) |
| Количество антенн | 4 |
| Спутниковые системы позиционирования | GPS + ГЛОНАСС + Галилео |
| Точность позиционирования | В вертикальной плоскости: |
| Типы карт памяти | microSD (до 256 Гбайт) |
| Матрица | CMOS 1/2,3 дюйма |
| Объектив | Угол обзора: 150° |
| ISO | 100-12800 |
| Выдержка | 1/50-1/8000 с |
| Режимы статической фотосъемки | Покадровая съемка |
| Макс. размер изображения | 3840×2160 |
| Фотоформат | JPEG |
| Разрешение видео | 4K: 3840 × 2160 при 50/60 кадрах в секунду |
| Видеоформаты | MP4/MOV (H.264/MPEG-4 AVC, H.265/HEVC) |
| Цветовые профили | Стандартный, D-Cinelike |
| Cистема RockSteady EIS | Доступно |
| Коррекция искажений | Доступно |
| Поддерживаемые форматы файлов | exFAT (рекомендуется) |
| Размеры | 184×122×110 мм (без антенн) |
| Размер экрана | 2 дюйма (× 2) |
| Частота обновления экрана | 144 Гц |
| Частота связи [1] | 2,4–2,483 ГГц |
| Дальность передачи сигнала [2] | 10 км (FCC), 6 км (CE), 6 км (SRRC), 6 км (MIC) |
| Видеоформат | MP4 (видеоформат: H.264) |
| Поддерживаемые форматы видео и аудио | MP4, MOV, MKV (видеоформат: H.264; Аудиоформат: AAC-LC, AAC-HE, AC-3, MP3) |
| Входная мощность | Специальные аккумуляторы для очков DJI или другие аккумуляторы 11,1–25,2 В. |
| Угол обзора | Угол обзора: от 30° до 54°; Размер изображения: 50–100% |
| Межцентровое расстояние | 58–70 мм |
| Модель | FC7BMC |
| Макс. дальность передачи сигнала(на открытом пространстве, без помех) | 10 км (FCC); 6 км (CE/SRRC/MIC) |
| Диапазон рабочих температур | −10…+40°C |
| Механический диапазон углов вращения | Наклон: −65°…+70° |
| Рабочий диапазон углов вращения | Наклон: −50°…+58° |
| Стабилизация | Одна ось (наклон), электронная ось крена |
| Макс. управляемая скорость | 60°/с |
| Диапазон угловых вибраций | ±0,01° (режим N) |
| Электронная ось крена | Доступна (стабилизирует видео при наклоне дрона до 10°) |
| Спереди | Диапазон точного измерения: 0,5–18 м |
| Снизу (два видеодатчика + датчики Time of Flight) | Высота эффективного обхода препятствий: 10 м |
| Дополнительная подсветка снизу | Один светодиодный индикатор |
| Условия функционирования | Неотражающие различимые поверхности |
| Вход | 100–240 В, 50/60 Гц, 1,8 А |
| Выход | Интерфейс зарядки аккумулятора: |
| Номинальная мощность | 90 Вт |
| Емкость аккумулятора | 2000 мАч |
| Макс. напряжение зарядки | 25,2 В |
| Тип аккумулятора | Литий-полимерный 6S |
| Скорость разряда | Стандартный: 10C |
| Пропускная способность связи | 40 МГц (макс.) |
| Режим просмотра в реальном времени | Режим низкой задержки сигнала: (810p/120 кадров/с): не более 28 мс |
| Макс. битрейт видео | 50 Мбит/с |
| Дальность передачи сигнала | 10 км (FCC), 6 км (CE), 6 км (SRRC), 6 км (MIC) |
| Поддержка передачи аудио | Да |
| Емкость | 1800 мАч |
| Напряжение | Макс. 9 В |
| Вид | Литий-полимерный 2S |
| Энергетика | 18 Вт·ч |
| Диапазон температур зарядки | 0…+45°C |
| Макс. мощность зарядки | 10 Вт |
| Диапазон рабочих частот | 2,4–2,483 ГГц |
| Мощность передатчика (ЭЭИМ) | 2,4–2,483 ГГц |
| Макс. дальность передачи сигнала | 10 км (FCC), 6 км (CE), 6 км (SRRC), 6 км (MIC) |
| Размеры стабилизатора | 190×140×51 мм |
| Масса | 346 г |
| Время работы аккумулятора | Приблизительно 9 часов |
| Время зарядки | 2,5 часа |
| Совместимые карты памяти | Макс. 256 Гбайт |
| Совместимые карты памяти microSD | SanDisk High Endurance U3 V30 64 Гбайт microSDXC |
| Примечания | 1. Всегда проверяйте местные правила и законы перед полетом. Они могут меняться со временем. |
