Комплект міцного дрона Autel Robotics EVO II Pro 6K V3
- EU C2 Class Certificate
- Autel Smart Controller SE 6.4”OLED Screen
- Autel Skylink 2.0 15KM Video Transmission
- Moonlight Algorithm 2.0
- Excel in Low Light
- 1-Inch CMOS Sensor
- 6K Video & 20MP Photo
- 360° obstacle avoidance
- 40-Min Max Flight Time
Опис

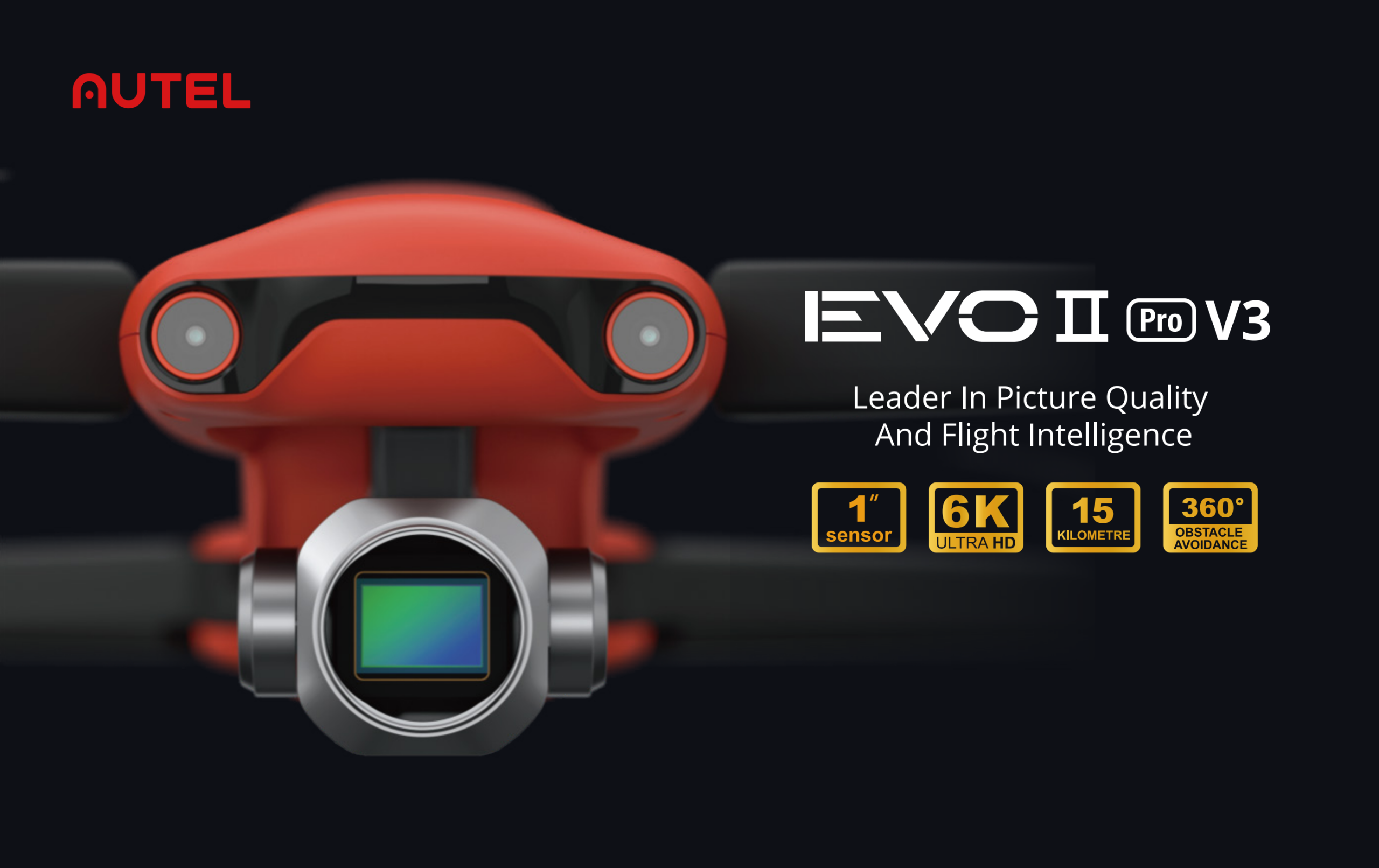

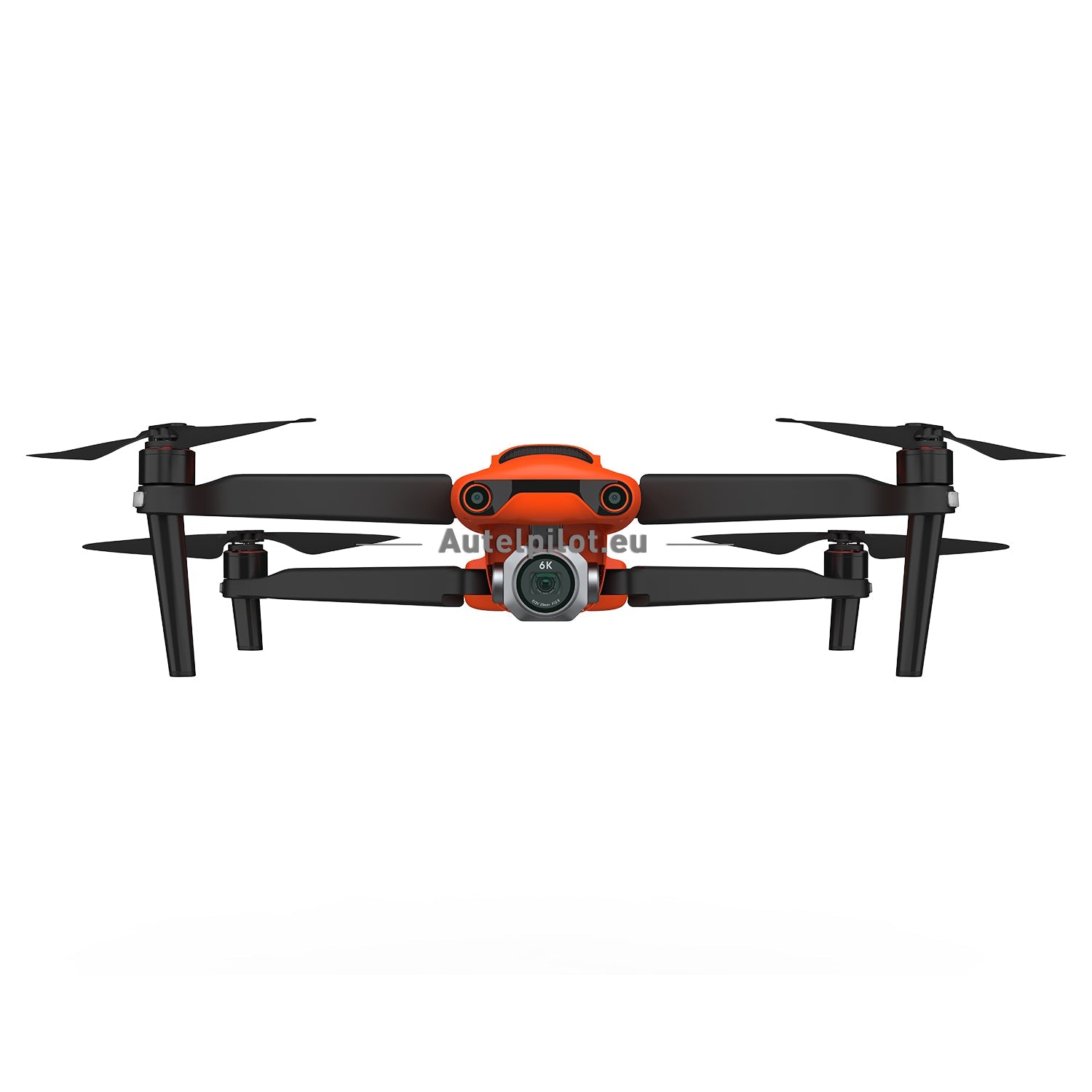

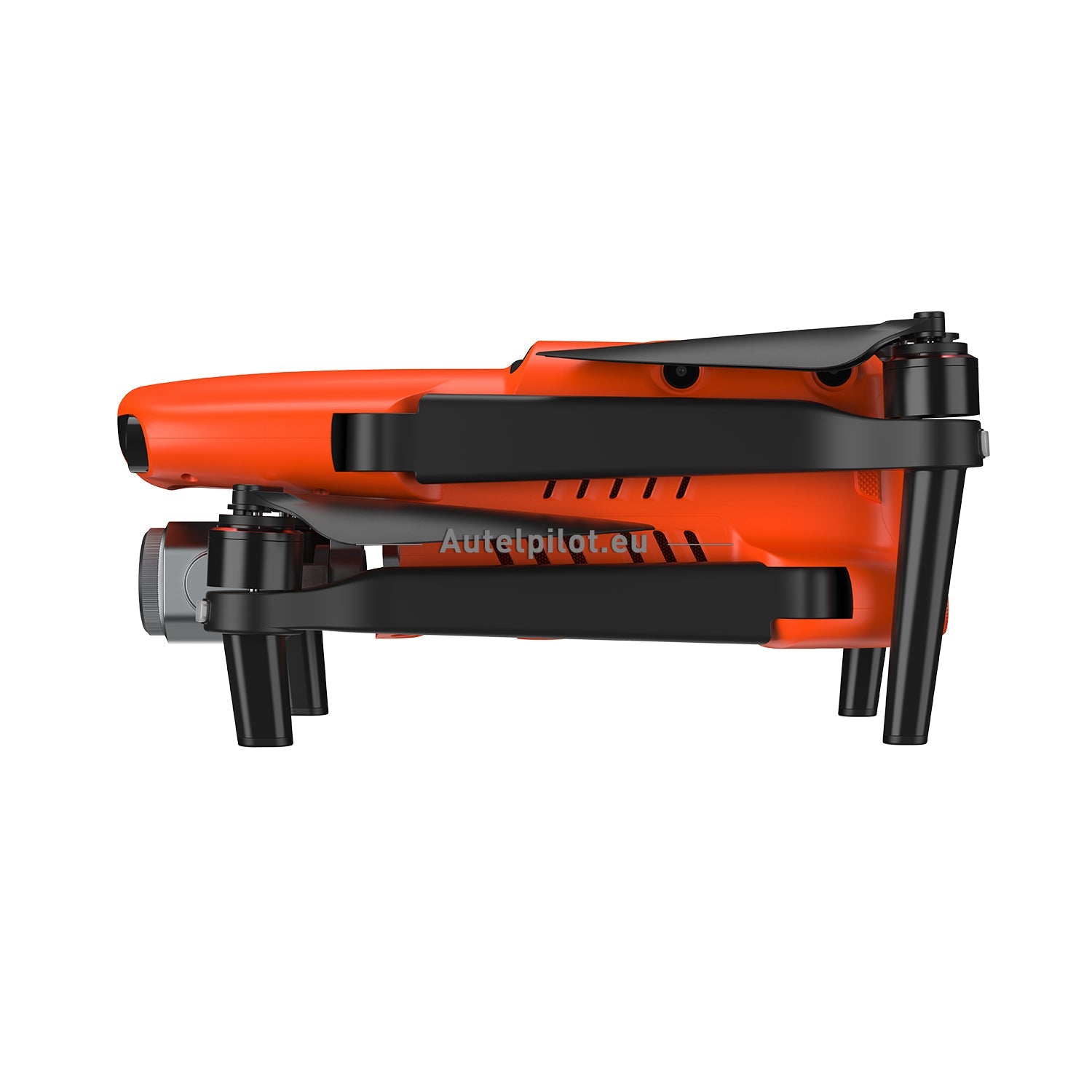

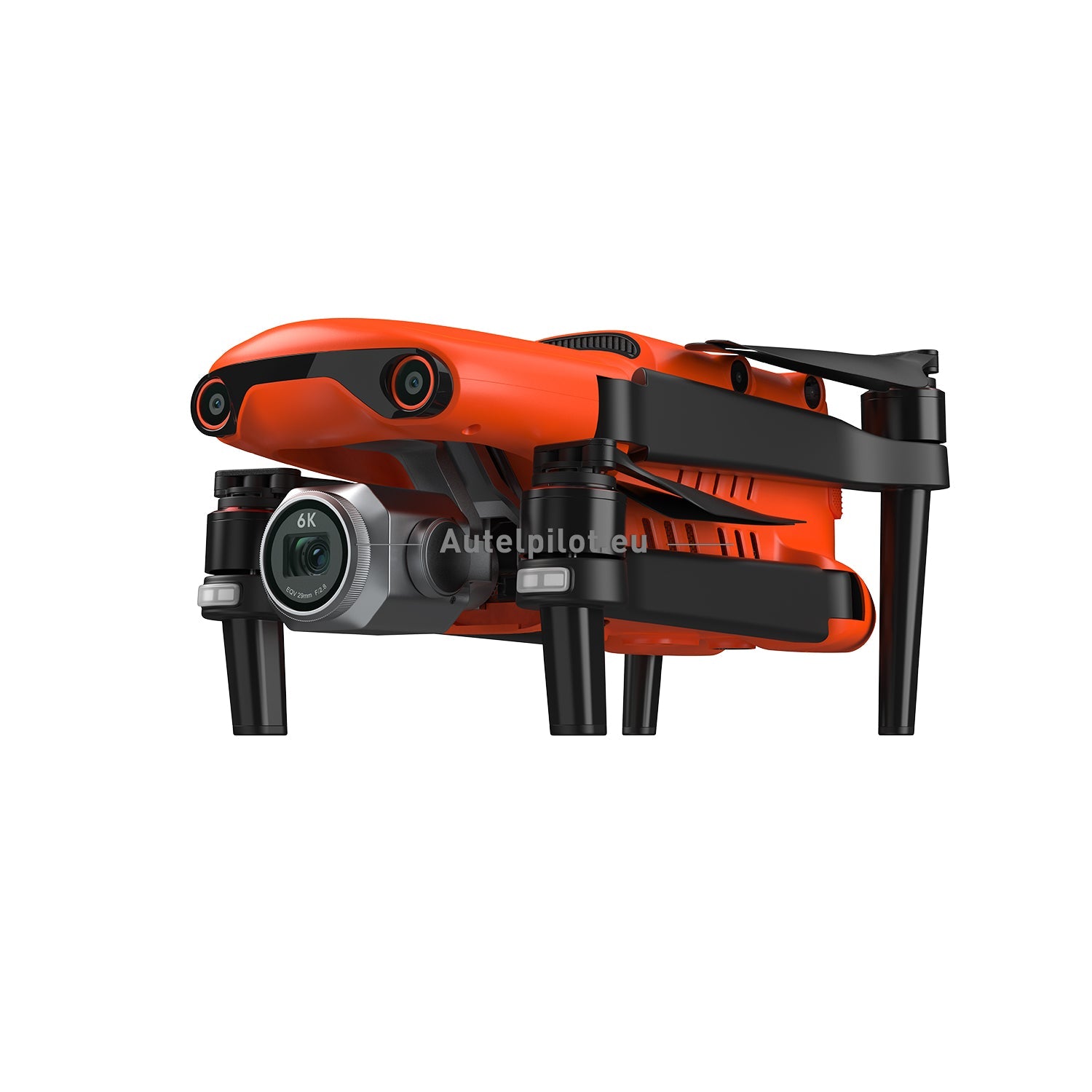

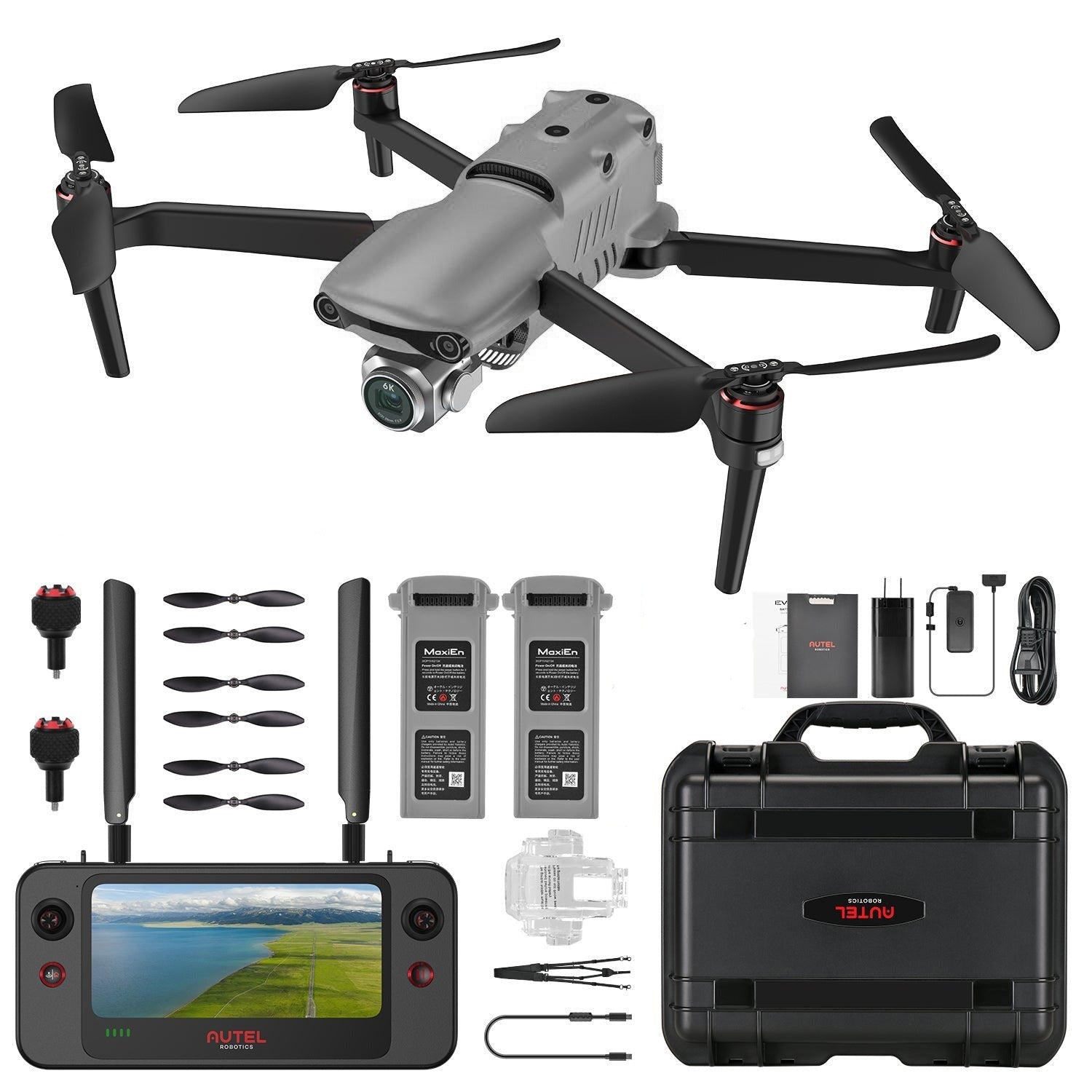

Autel EVO II Pro V3 Rugged Bundle
Autel Latest Released V3 Autel EVO II Pro V3 Rugged Bundle,with Sony’s new 20 megapixel 1 inch CMOS image sensor,supports up to 6K video resolution with greater dynamic range, stronger noise suppression, higher frame rates. Succeed in night photography with EVO II Pro V3’s 6K 1″ CMOS and Autel Robotics’ Moonlight Algorithm 2.0.
Exceptional Image Quality
With Sony’s new 20 megapixel 1-inch CMOS image sensor, the EVO II Pro V3 supports up to 6K video with greater dynamic range, stronger noise suppression, and higher frame rates. The f/2.8-f/11 adjustable aperture and 44000 maximum ISO gives photographers enhanced creative control.
Moonlight Algorithm 2.0
Equipped with Autel NEWEST Moonlight Algorithm 2.0 system, the V3 camera ISO can be up to 44000 for the night photography, also with 12-Bit DNG photos which is capable of recording up to 68.6 billion colors with 64 times, allowing the drone has greater flexibility in post-production.
Excel in Low Light
EVO II Pro V3 brings you Autel’s Moonlight Algorithmn 2.0 with additional noise reduction processing. Paired with EVO II Pro V3’s upgraded CMOS, succeed in operations with minimal lighting or in harsh lighting situations at night.
4K HDR Video
The EVO II Pro V3 pairs the brilliance of 4K clarity with the brightness, color and detail of HDR. Previously hidden areas of dark shadow and sunlight are now full of clarity and details.
Post-Production Flexibility with 12-bit DNG
The EVO II Pro V3 can take 12-bit DNG photos and is capable of recording up to 68.6 billion colors with 64 times the color rendering power of 10-bit, allowing greater flexibility in post-production.
6K Hyper-Lapse Photography
You can enjoy your favorite moments at any time, free from post-processing as 6K mobile time-lapse as video can be exported right after recording, and JPEG/RAW format are also supported.
16x Zoom in for the Details: EVO II Pro V3 supports 3x lossless zoom and 16 times digital zoom. Obtain clear intel from farther away without suspicion.
Accident Reconstruction:The EVO II Pro V3 is excellent for accident reconstruciton, andis compatible with Pix4d, Drone Deploy, and Skyebrowse.

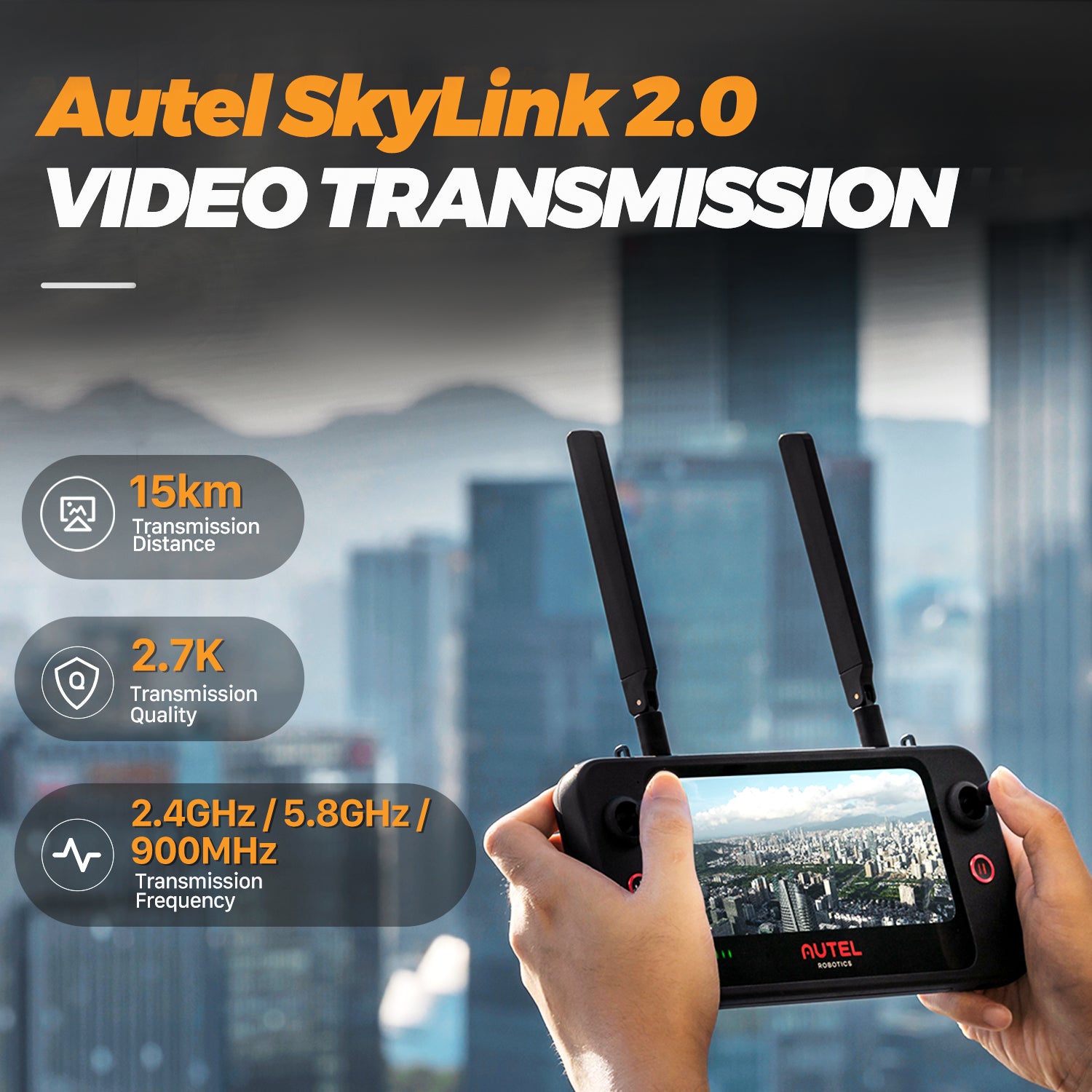

Skylink 2.0 Video Transmission
The EVO II PRO V3 is upgraded with Autel’s all new skylink 2.0 Video Transmission technology.
15KM HD video Transmission QHD Critical details with QHD video within 1km
2.4G/5.8G Less signal breakups and enhanced anti-inter-ference capabilities.

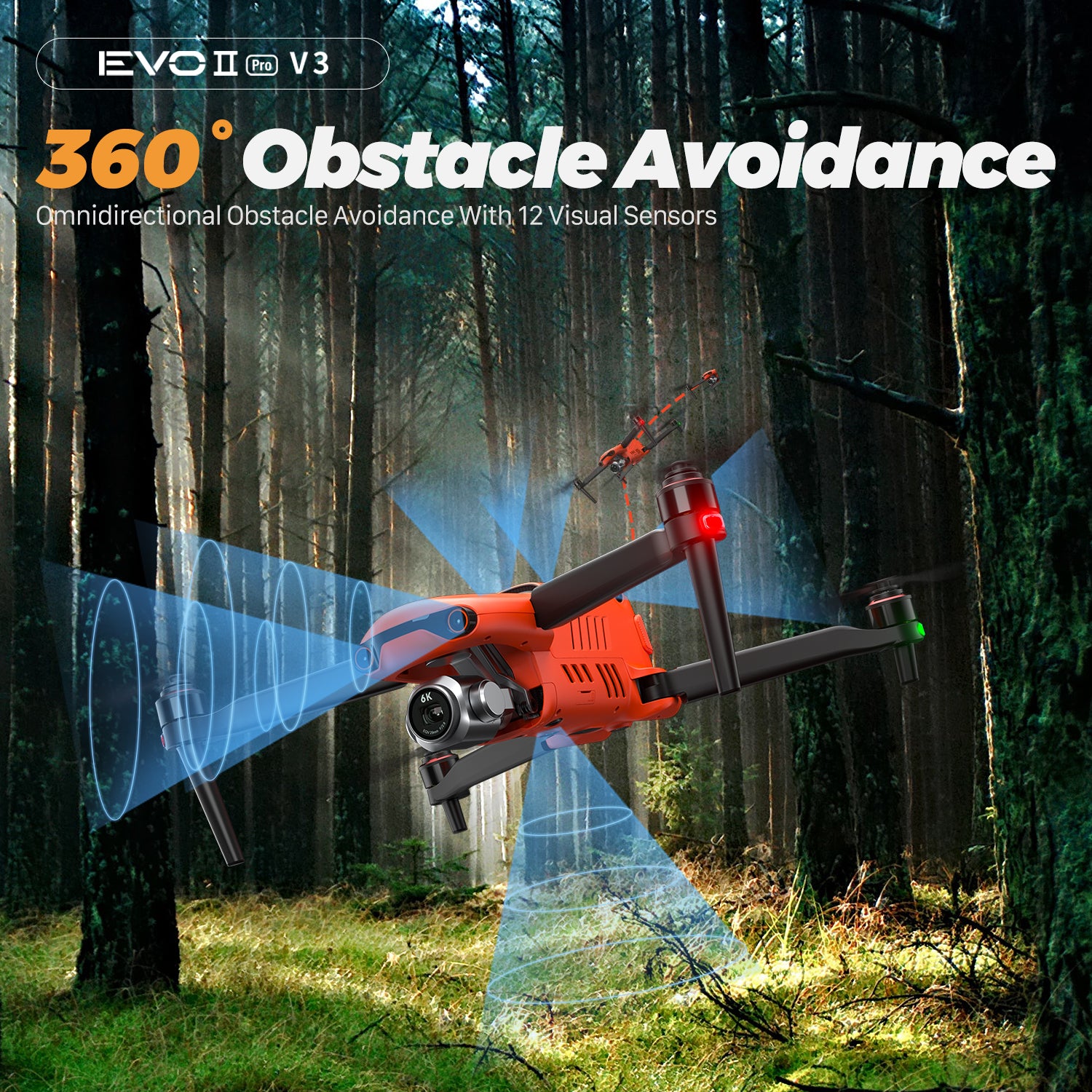

360° Obstacle Avoidance
EVO II Pro V3 is equipped with 12 visual optical sensors, which integrates 19 sets of sensors including the main
camera, ultrasonic wave, and IMU to build a three-dimensional map of the drone and its surroundings in real time.

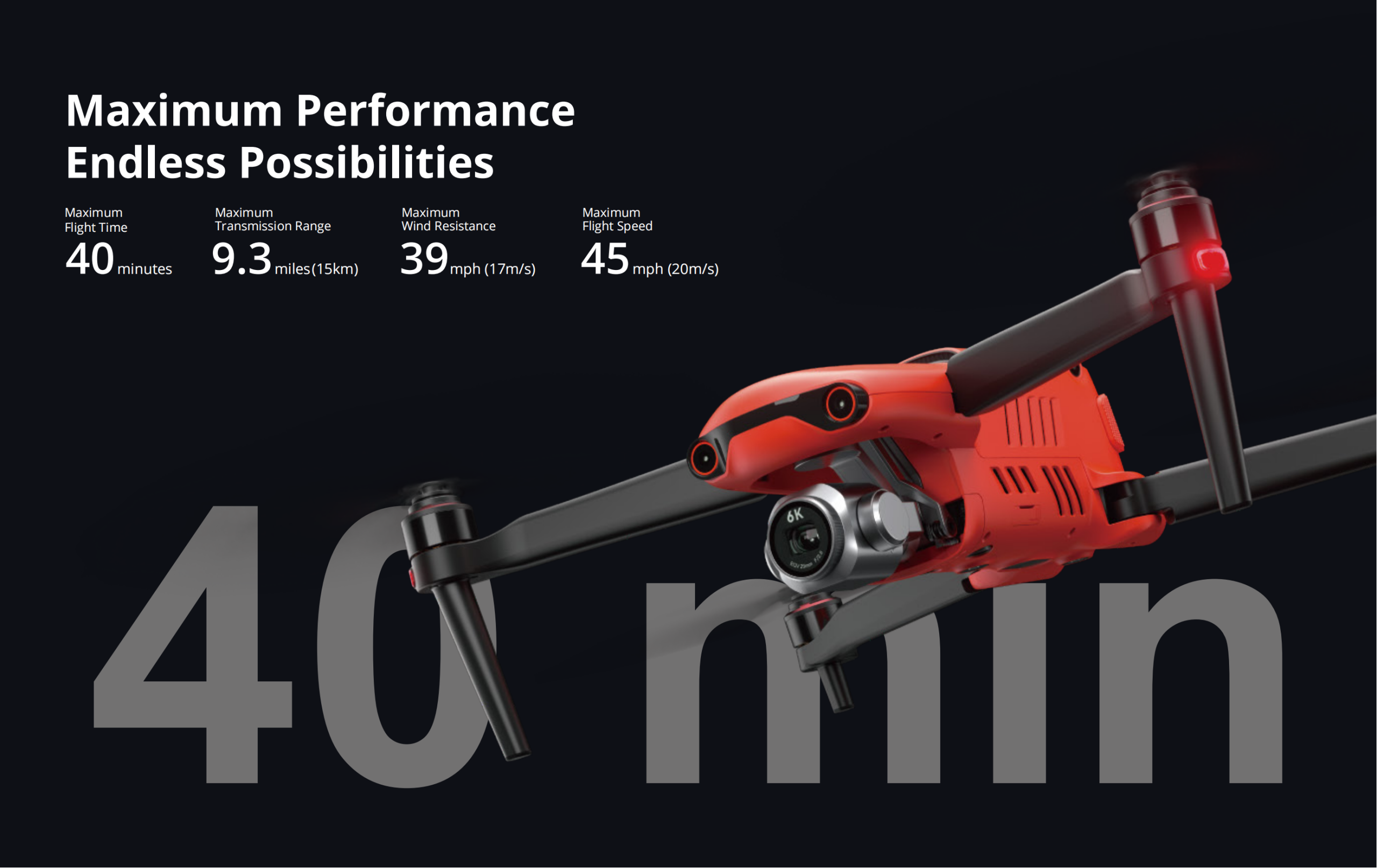

Maximum Performance Endless Possibilities
40 Min Maximum Flight Time 20m/s Maximum Flight Speed
17m/s Maximum Wind Resistance 920g Maximum Lift Capability
Practical and Convenience Features
Deploy Rapidly : The EVO II Pro V3 takes 45 seconds from
launch to takeoff without fuss.
No Forced Updates : EVO II Pro V3 does not need to be on the latest
hardware or app version in order to take off unlike others.

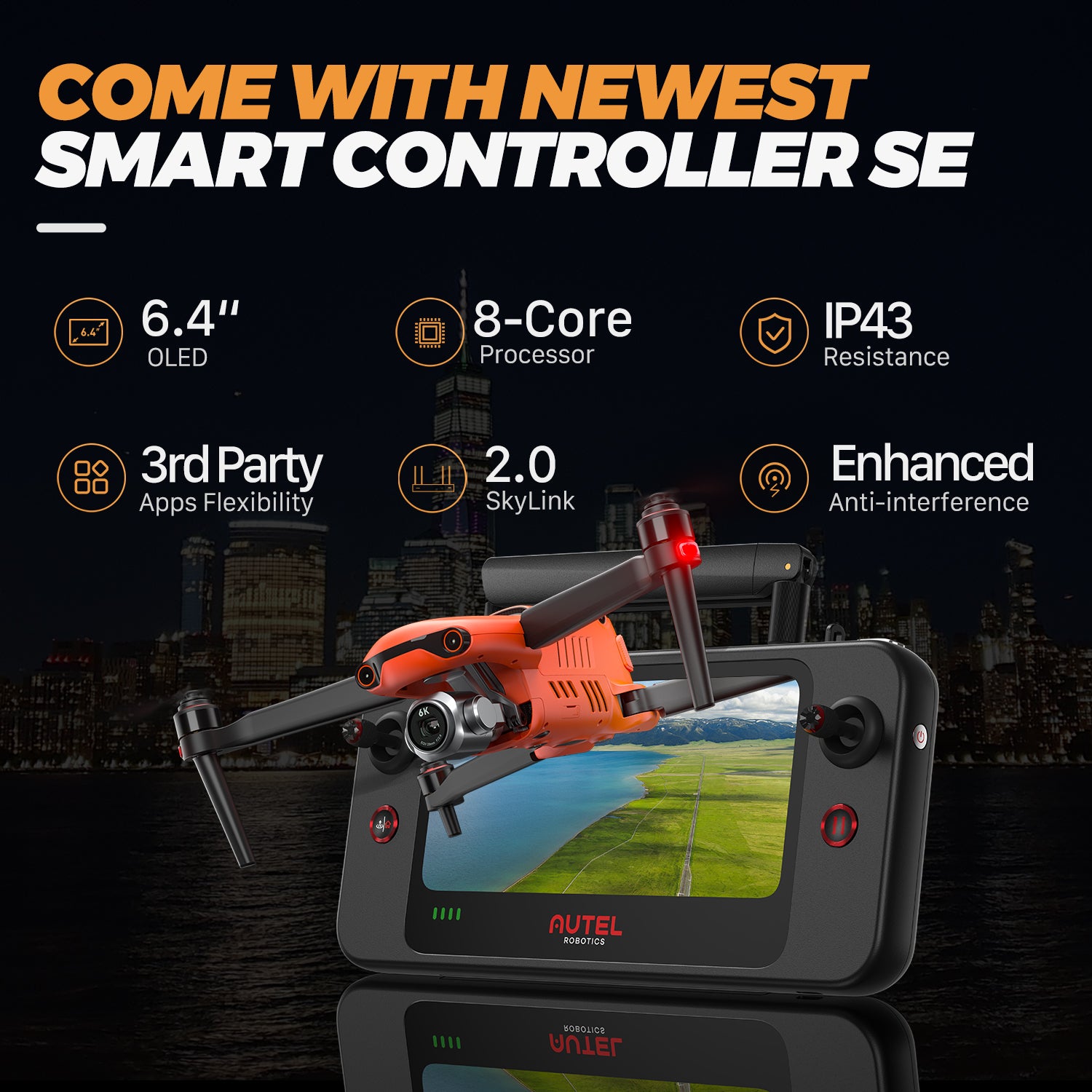

Autel Smart Controller SE
EVO II Pro V3 is packed with Autel 2023 Smart Controller SE which comes with a 6.4-inch OLED touch screen and latest gen 8-core processor for HD image transmission, which guarantees operations from up to 15km away and enhances anti-interference abilities with triple band frequency hopping. The customized Android system allows for additional flexibility with 3rd party Apps and an IP43 rating ensures all weather performance.

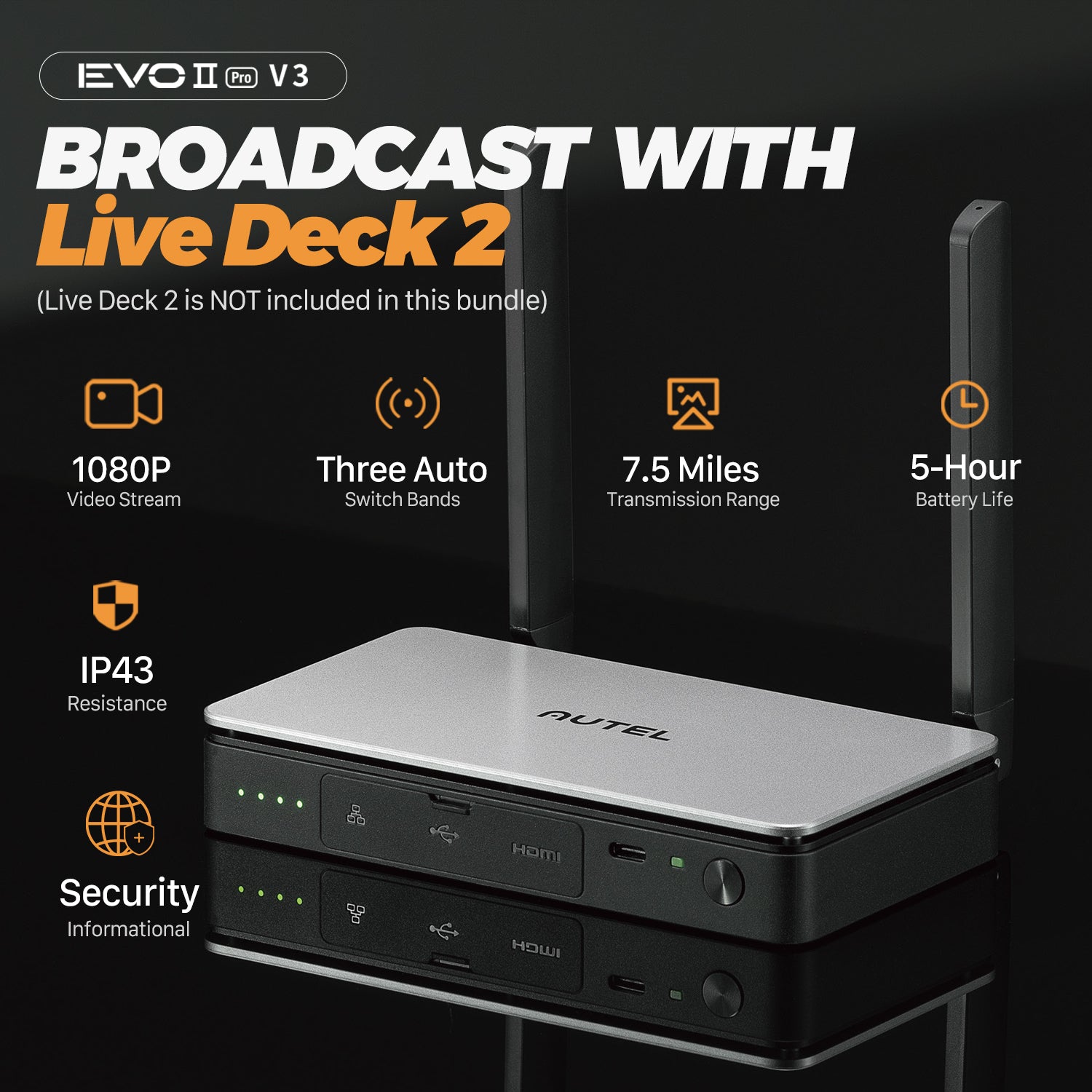

Broadcast with Live Deck 2
EVO II Pro V3 supports multi-port HDMI real-time output to meet the requirements of projection monitoring and live streaming with Live Deck 2.
Додаткова інформація
| Max takeoff weight | 2000 g |
|---|---|
| Колісна база | 397 мм |
| Size(L*W*H) | 230x130x108 mm (folded) 457x558x108 mm (unfolded) |
| Maximum service ceiling altitude | 7000 m |
| Max ascent speed | 8 m/s (Ludicrous) |
| Max descent speed | 4 m/s (Ludicrous) |
| Max horizontal flight speed | 20m/s (Ludicrous) |
| Max flight distance (no wind) | 25 km |
| Max tilt angle | 33° (Ludicrous) |
| Max angular velocity | 120°/s |
| Max flight time (no wind) | 40 min |
| Max hovering time (no wind) | 35 min |
| Діапазон робочих температур | -10℃ ~ 40℃ |
| Maximum resistance to wind | 12 m/s (Take-off and landing) |
| Hovering accuracy | Vertical: ±0.1 m (when the visual positioning is working normally);±0.5 m (when GPS works normally)Horizontal: ±0.3 m (when the visual positioning is working normally);±1.5 m (when GPS works normally) |
| ГНСС | GPS/Beidou/Glonass/Gallieo |
| SD storage | max. support 256GB (UHS-3 or Class 10) |
| Гімбал | 3-axis stabilization |
| Mechanical range | Tilt: -135° to +45°;Pan: -100° to +100° |
| Контрольований діапазон обертання | Tilt: -90° to +30°;Pan: -90° to +90° |
| Max control speed (Tilt) | 300°/с |
| Діапазон кутових коливань | ±0.005° |
| Operating frequency | 902-928MHz (FCC Only)2.400-2.4835GHz5.725-5.850GHz (non-Japan)5.650-5.755GHz (Japan Only) |
| Transmission power | FCC：≤33dBmCE：≤20dBm@2.4G，≤14dBm@5.8GSRRC：≤20dBm@2.4G，≤33dBm@5.8G/5.7G |
| Максимальна відстань передачі (без перешкод, без перешкод) | FCC：15kmCE：8km |
| Display screen | 2340×1080 60fps |
| Акумулятор | 1900mAh |
| Operating time | ~2 hours (Max. Brightness)~3 hours (50% Brightness) |
| Внутрішня пам'ять | ROM 128GB + expandable storage via micro-SD card |
| Sensing system type | Omnidirectional sensing system |
| Вперед | Accurate measurement range: 0.5-18 mEffective sensing speed:<12m/sViewing angle: Horizontal: 60°, Vertical: 80° |
| Назад | Accurate measurement range: 0.5-16 mEffective sensing speed:<12m/sViewing angle: Horizontal: 60°, Vertical: 80° |
| Вгору | Accurate measurement range: 0.5-10 mEffective sensing speed:<5m/sViewing angle: Horizontal: 65°, Vertical: 50° |
| Вниз | Accurate measurement range: 0.5-10 mEffective sensing speed:<5m/sViewing angle: horizontal: 100°, vertical: 80° |
| Left and right | Accurate measurement range: 0.5-10 mEffective sensing speed:<5m/sViewing angle: horizontal: 65°, vertical: 50° |
| Операційне середовище | Forward, Backward and Sides:Surface with clear pattern and adequate lighting (lux > 15)Upward:Detects diffuse reflective surfaces (>20%)(walls, trees, people, etc.)Downward:Surface with clear pattern and adequate lighting (lux > 15)Detects diffuse reflective surfaces (>20%)(walls, trees, people, etc.) |
| Датчик | 1 inch CMOS; 20M pixels |
| Лінза | FOV: 82°Equivalent focal length: 29 mmAperture: f/2.8 – f/11Focus range: 0.5 m to infinity |
| Діапазон ISO | Video: 100-44000Photo: 100-6400 |
| Витримка | Photo mode: 1/8000 ~ 8sOther: 1/8000 ~ 1/frame rates |
| Збільшити | 1-16x (up to 3x lossless zoom) |
| Максимальний розмір фотографії | 5472*3648 (3:2)5472*3076 (16:9)3840*2160 (16:9) |
| Image Format | JPG (default) / DNG / JPG+DNG |
| Photo mode | 5472x3076P30/P25/P243840x2160P60/P50/P48/P30/P25/P242720x1528P60/P50/P48/P30/P25/P241920x1080P60/P50/P48/P30/P25/P24 |
| Формат відео | MP4 / MOV (MPEG-4 AVC/H.264, HEVC/H.265) |
| Max bitrate | 120 Мбіт/с |
| Supported file system | FAT32/exFAT |
| Місткість | 7100 мАг |
| Тип батареї | Літій-полімерний акумулятор 3S |
| Енергія | 82 Вт·год |
| Вага | 365 g |
| Температура та вологість зберігання | -10~30℃，65±20%RH |
| Recommended storage temperature | 22-28℃ |
| Max charging power | 93W |
| Час заряджання | 90 minutes |
| Вхід | 100-240 V, 50/60 Hz, 1.5A |
| Вихід | 13.2 V ⎓ 5 A5V⎓3A 9V⎓2A 12V⎓1.5A |
| Номінальна потужність | 66W |
| Напруга | 13.2 V |
| Charging temperature range | 5℃ to 45℃ |
