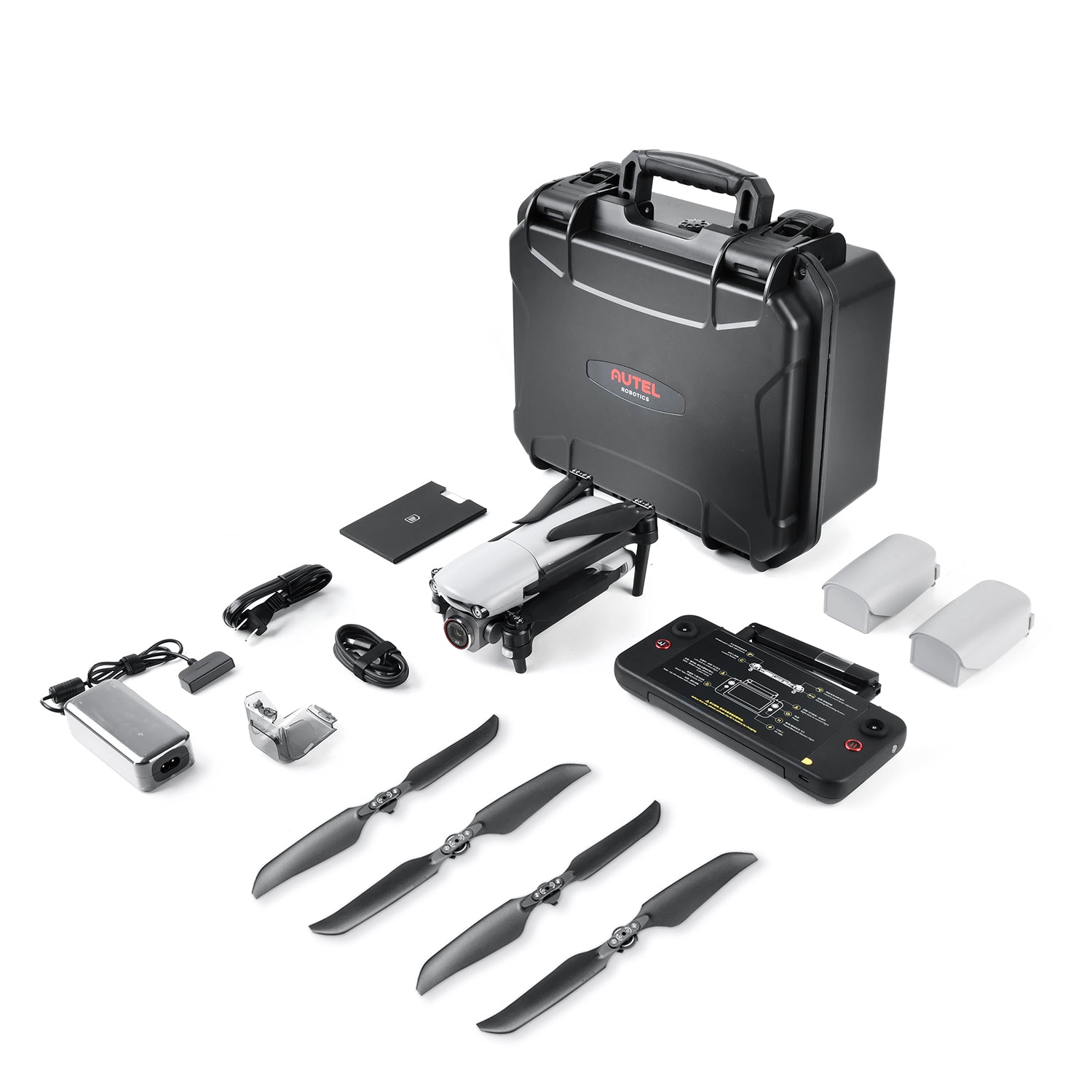

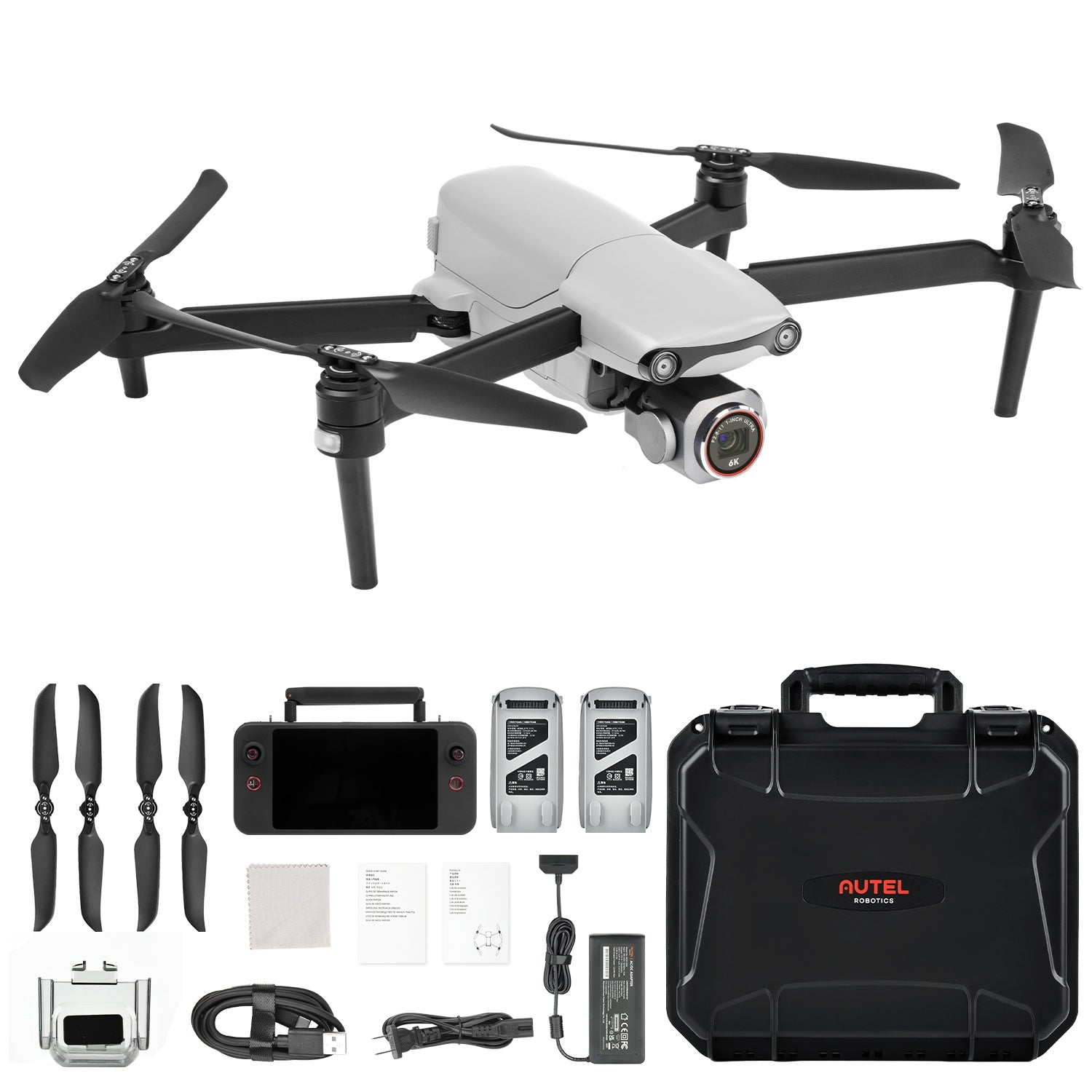

Преміум-пакет дрона Autel Robotics EVO Lite 6K Enterprise
Опис

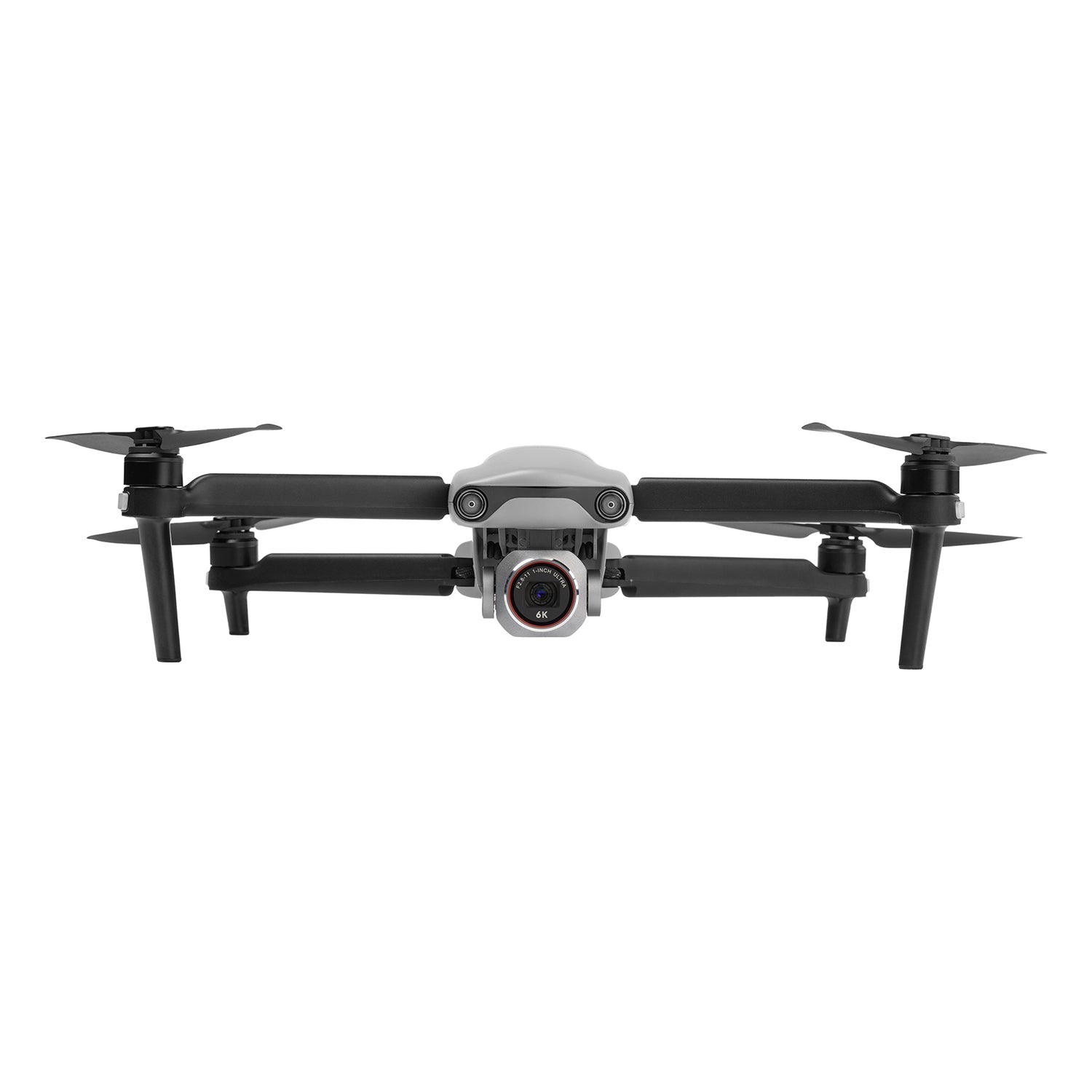

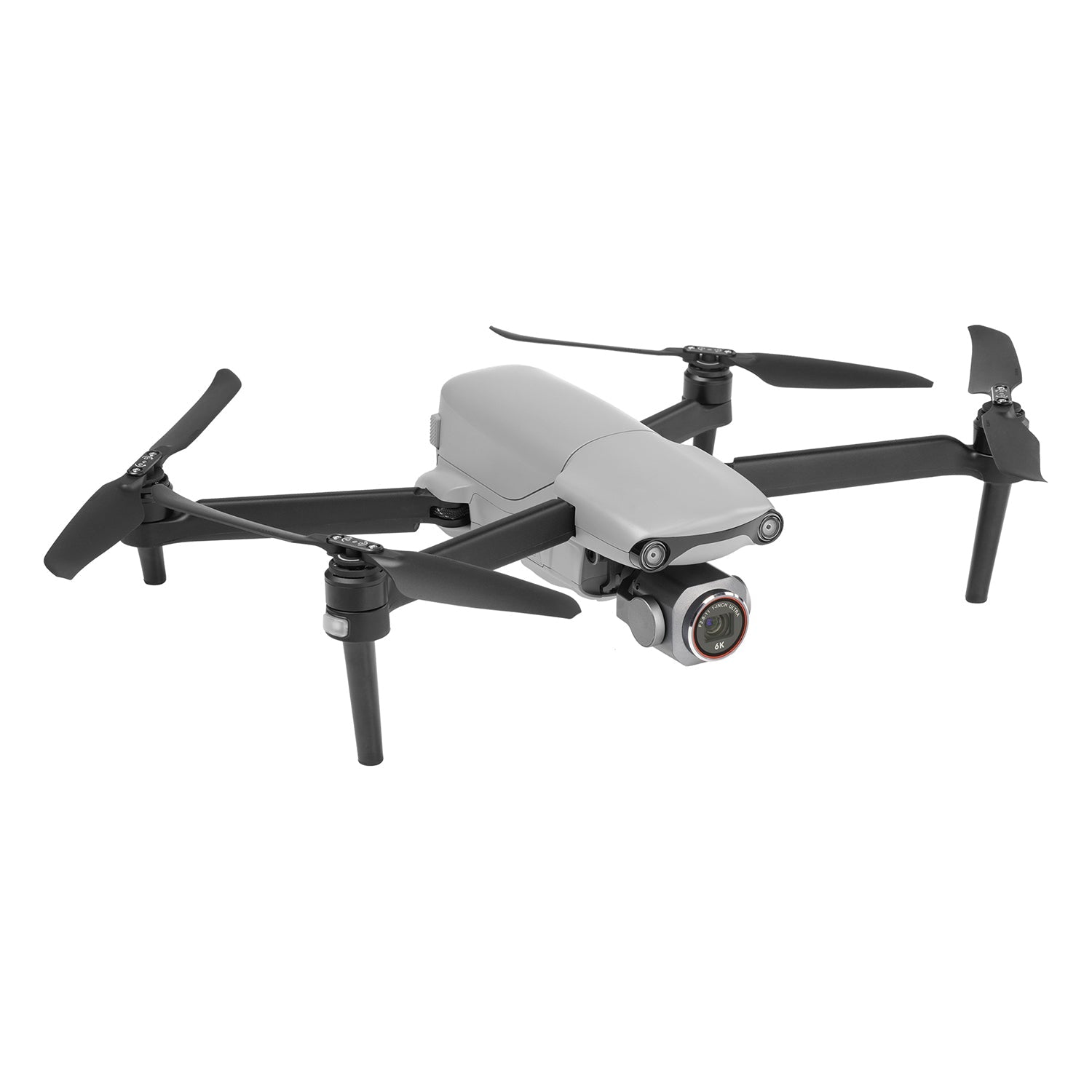

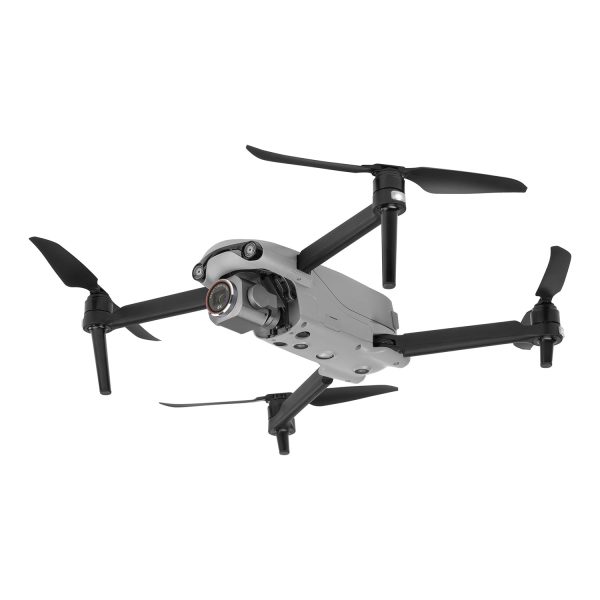

Autel Robotics EVO Lite 6K Enterprise
The EVO Lite 6K Enterprise is equipped with a 1-inch CMOS visible-light camera, offering outstanding sensitivity for excellent image quality. Paired with the Autel Enterprise professional flight software, it offers easy operation, user-friendly interaction, flexible single-person deployment, and efficient application in scenarios such as public safety and emergency rescue.
Основні характеристики
- Lightweight and Portable
- 6K Resolution
- 12km Video Transmission Range
- 40-Minute Flight Endurance
- Three-Way Binocular Vision Obstacle Avoidance
- AI Target Recognition and Positioning
- Simple Control With Smart Controller SE V2
Легкий та портативний

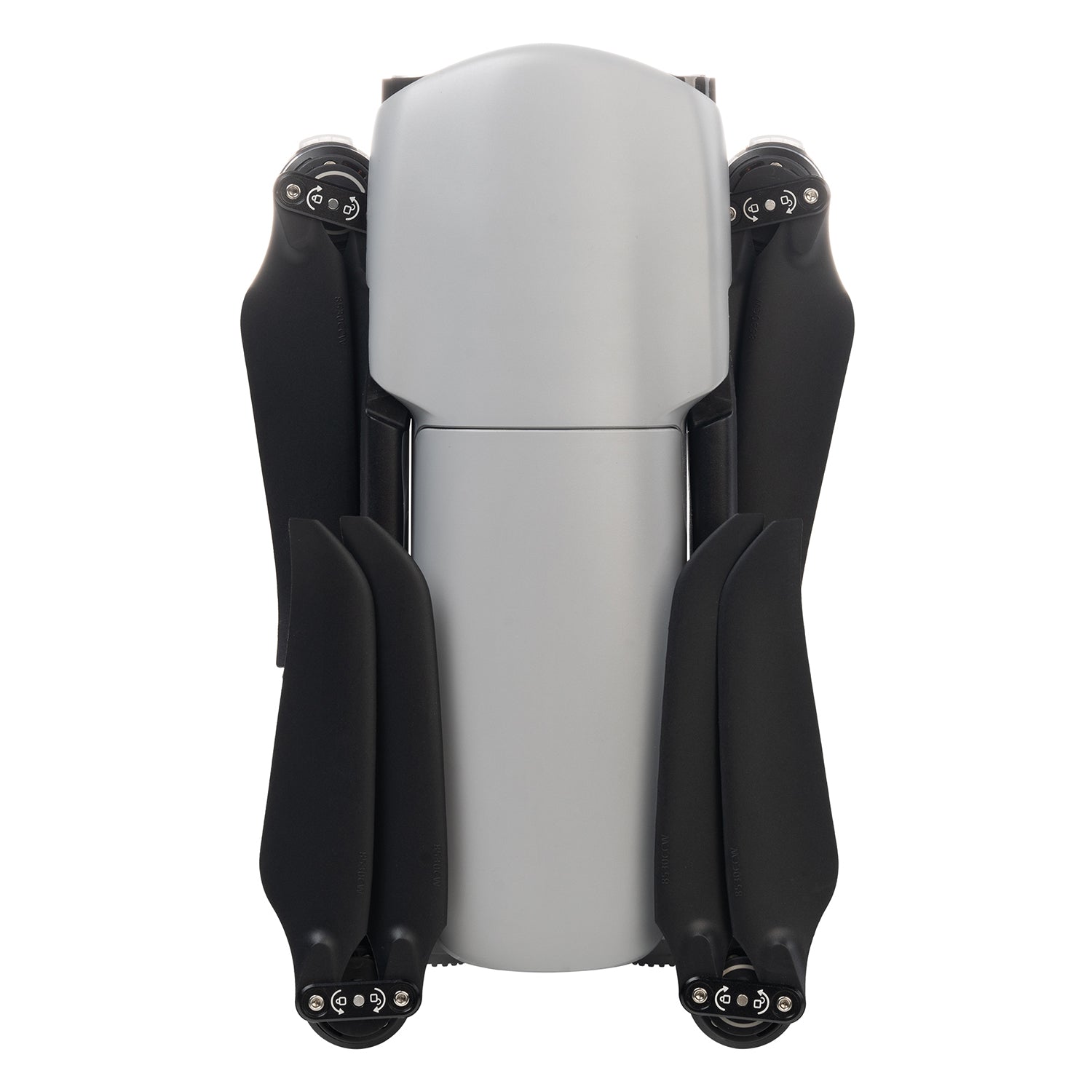

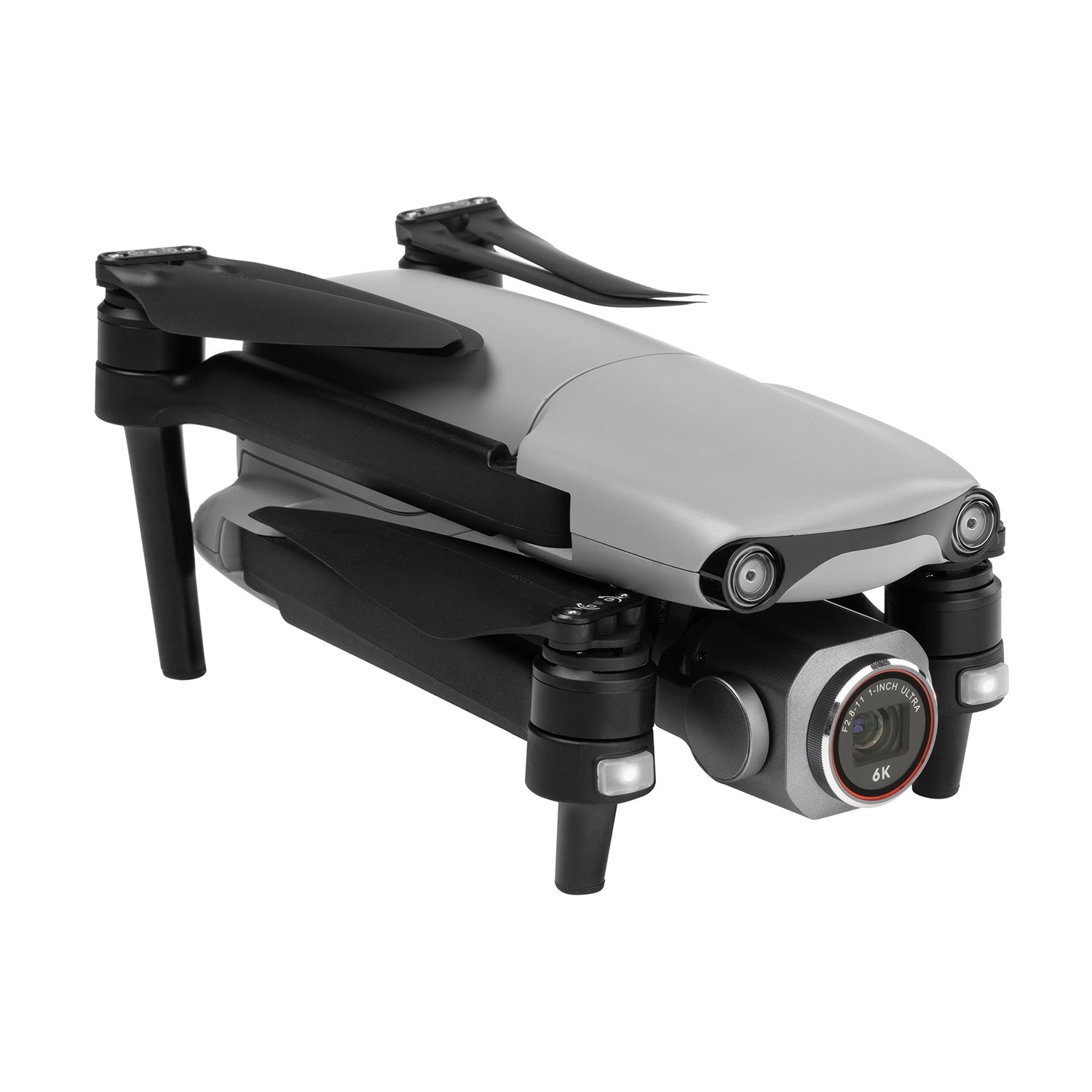

The EVO Lite Enterprise Series aircraft weigh only 866 grams and have folded dimensions of just 210*123*95mm, making them easy to carry in a backpack. With a simple operation, they are ideal for efficient execution of missions by a single operator.
Autel Enterprise App
Autel Enterprise is a professional flight mission software designed for industry applications by Autel Robotics. It features an optimized interaction design for simple and efficient operation, an editable toolbar design for intuitive use, and integrates intelligent and professional functions to fully utilize the industry value of the EVO Lite Enterprise Series aircraft.
Split-Screen Display: Visible light, infrared, or map support dual-channel simultaneous output on the screen, providing comprehensive information through comparison.
Customizable Toolbar: Customize the menu toolbar in the app for quick access to frequently used functions, meeting personalized usage needs.
Offline Maps: Addresses the issue of map loading failures in no-network or weak-network environments by supporting offline maps, aiding in precise flight positioning.
AI Target Recognition and Positioning
Utilizing wide-angle or infrared lenses combined with intelligent AI algorithms and a self-learning system, the aircraft can automatically recognize and locate, including people, cars, and boats, projecting their positions on the map.

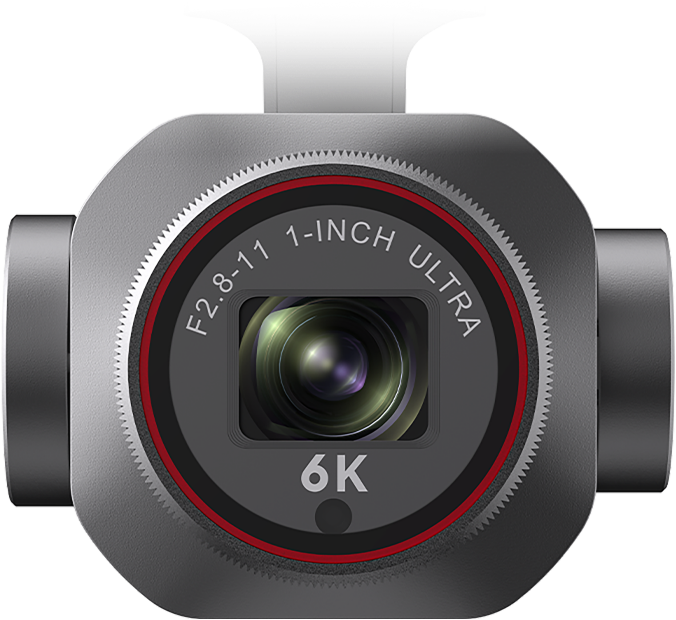

EVO Lite 6K Enterprise Gimbal
Equipped with a 6K visible-light camera, it can still capture high-definition, low-noise images in low-light environments, providing insights into targets and empowering police enforcement, patrol inspection, search, and rescue scenarios.
Visible Light Camera
1-inch CMOS sensor // 20 million pixels // 16x digital zoom
Adjustable aperture from F2.8 to F11
ISO support up to 48,000 (night mode)
Photo resolutions of 5472*3076 / 3840*2160
Maximum video resolution of 4K 30P
High-Definition Video Transmission
Equipped with Autel SkyLink image transmission technology for a dual-signal, dual-reception system, the image transmission anti-interference capability improved, and the transmission distance reaches up to 12 kilometers. It supports 2.4GHz/5.2GHz/5.8GHz adaptive frequency hopping transmission, automatically selecting the best channel based on electromagnetic interference, providing strong anti-interference capability.And 1080P/30FPS real time image transmission quality.Less 200 Milliseconds latency.
Visual Perception System

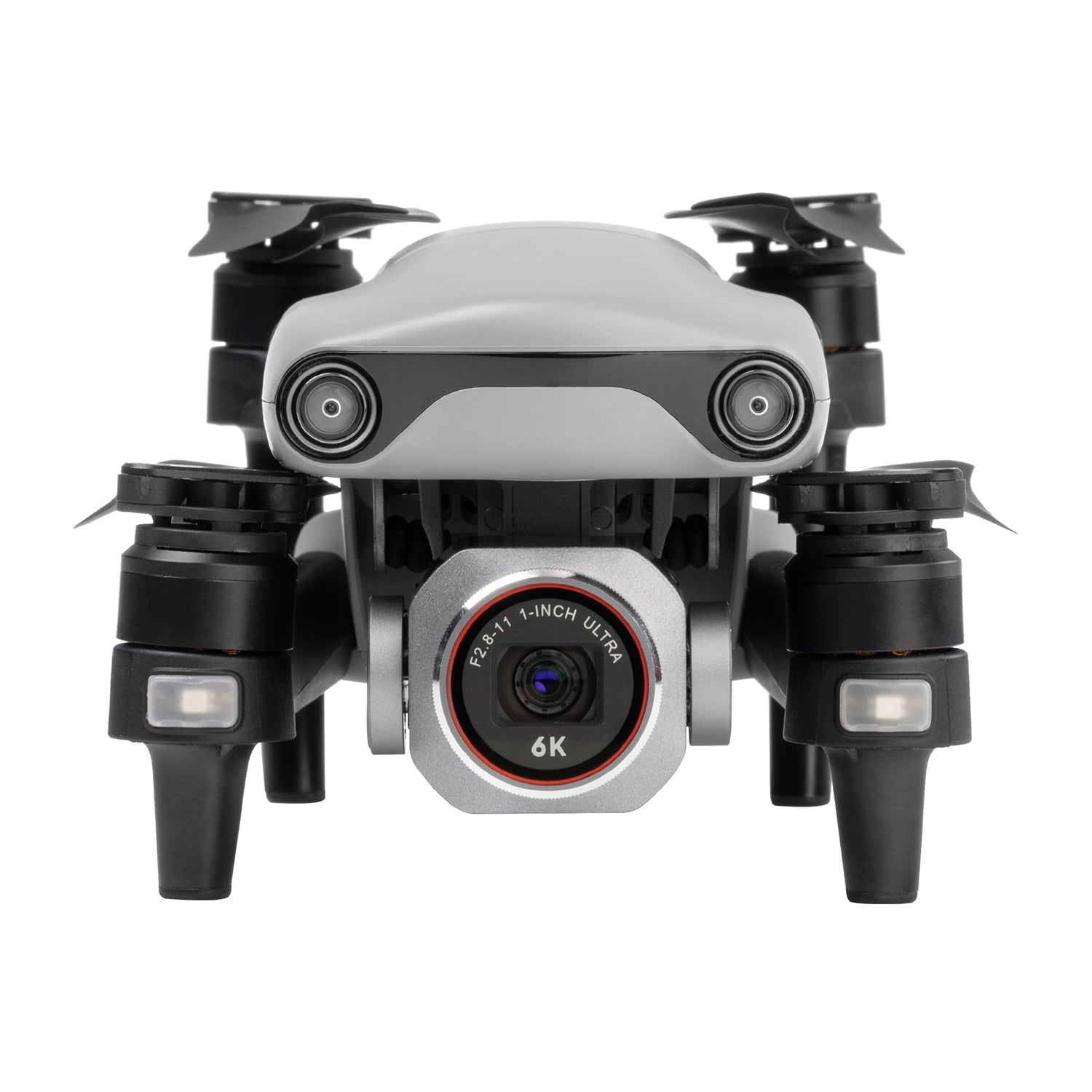

The drone is equipped with wide-angle vision sensors at the front, back, and bottom, ensuring reliable flight safety.
Льотні характеристики
Born small but mighty. The outstanding flight performance of the EVO Lite Enterprise Series drones effortlessly tackles various challenges across multiple scenarios, significantly enhancing the efficiency of single-person mission flights.
40 minutes of endurance
18 meters per second Maximum horizontal flight speed
3000 meters Maximum takeoff altitude
SDK Ecosystem
The open Mobile SDK provides efficient, versatile, and easy-to-use control and service interfaces, enhancing development efficiency and enabling the creation of custom solution scenarios.
Data Security with Multiple Protections
Privacy Protection: Flight logs, locations, and other user privacy data require user consent to upload.
Encrypted Storage: Supports AES encryption for photos, videos, and flight logs, requiring a password for access.
Video Live Streaming: Supports RTMP and GB28181* protocols for live streaming, allowing for remote real-time viewing and analysis. *The GB28181 video live streaming protocol feature is pending future updates.
Додаткова інформація
Maximum takeoff weight | 866 g |
---|---|
Max. rotation speed | 8000 rpm |
Колісна база | 368 mm |
Propeller Dimension | 8.5 inch injection molded propeller. Spec: 8530 |
Propeller weight | 7.5 g |
Maximum ascent speed | Slow:3 m/sSmooth:3 m/sStandard: 5 m/sLudicrous: 6 m/s |
Maximum descent speed | Slow:3 m/sSmooth:2 m/sStandard: 3 m/sLudicrous: 4 m/s |
Maximum horizontal flight speed(no wind near sea level) | Slow :3 m/sSmooth:5 m/sStandard: 10 m/sLudicrous: 18 m/s |
Maximum Service Ceiling Above Sea Level | 3000 meters |
Maximum flight altitude | EU: no more than 120 metersUS: no more than 400 feetNote:In the flight application UAV, it can be set from 0 to 800 meters. To set beyond height required by law, you need to obtain authorization from authority. |
Maximum flight time(no wind) | 40 minutesNote: Tested in lab with nearly no wind when aircraft flies at speed of 10 m/s and only for reference. |
Maximum flight mileage | 24 km |
Maximum hover time(no wind) | 37 minutesNote: Tested in lab with nearly no wind when aircraft hovers and only for reference. |
Maximum wind resistance level | Fresh breeze |
Maximum tilt angle | Slow: 15°Smooth: 30°Standard: 30°Ludicrous: 33° |
Maximum rotation angular speed | Smooth: 60°/sStandard: 120°/sLudicrous: 200°/s |
Working temperature | -10℃~40℃ |
Battery hot replacement | Not support |
Hover accuracy | Vertically:±0.1 meters (when visual positioning is working normally)±0.3 meters (when GNSS is working normally)Horizontally:±0.15 meters (when visual positioning is working normally)±0.3 meters (when GNSS is working normally) |
Maximum signal effective distance(No interference, no obstruction) | FCC: 12 kmCE: 6 km |
Effective transmitter power( EIRP) | 2.4G: ≤30dBm (FCC/ISED/RCM); ≤20dBm(CE/SRRC/UKCA)5.2G: ≤30dBm (FCC)5.8G: ≤30dBm(FCC/SRRC/ISED/RCM); ≤14dBm(CE/UKCA) |
Sensing range | Forward: 0.2~23 metersEffective obstacle avoidance speed: <10m/sBackward: 0.2~30 metersEffective obstacle avoidance speed: <10m/sDownward: 0.2~20 meters |
Поле зору | Forward:75° horizontally, 87° verticallyBackward:35° horizontally, 45° verticallyDownward:99° horizontally, 83° vertically |
Effective use of the environment | Front, rear: The surface has rich texture and sufficient lighting conditions (>15 lux, normal indoor fluorescent lighting environment)Below: The ground is richly textured and the lighting conditions are sufficient (>15 lux, normal indoor fluorescent lighting environment) The surface is made of diffuse reflective material and the reflectivity is >20% (such as walls, trees, people, etc.) |
Image sensor | 1 inch CMOS, 20 million pixels |
Лінза | DFOV: 82°Equivalent focal length of 35mm: 29 mmAperture: f/2.8-f/11Focus distance: 0.5 meter ~ ∞ |
Діапазон ISO | Auto/Manual: ISO100 ~ ISO6400 |
Витримка | 1/10000 ~ 1/60 seconds |
Defog mode | Support |
Збільшити | 1 – 16x digital zoom |
Максимальний розмір фотографії | 5472×3076, 3840×2160 |
Photo format | JPG |
Роздільна здатність відео | 3840×2160 P30 |
Формат відео | MP4/MOV |
Video coding format | H.265/H.264 |
Support file system | FAT32/exFAT |
Mechanical scope | Pitch: -135°~45°Roll: -45°~45°Yaw: -90°~90° |
Контрольований діапазон обертання | Pitch: -90°~30° |
Стабільна система | Three-axis stabilization |
Maximum control speed (pitch) | 100°/с |
Angualr vibration range | ±0.003° |
Material | PC+ABS |
Розміри | 226.3×137.7×31.5 mm (antennas folded)226.3×215.4×31.5 mm (antennas unfolded) |
Температура зберігання | +15°C ~ +25°C (within a year)0°C ~ +30°C (within three months)-20°C ~ +45°C (within a month) |
Рейтинг захисту | IP43 |
Внутрішня пам'ять | Built-in storage of 32GBAvailable storage: 24GB |
MicroSD Extension | Підтримується |
Operating System | Based on Android 6.0.1 |
Application Installation | Supports the installation of third-party Android apps |
USB -C | Charging: supports PD/QC fast charging, up to 65W |
USB -A | USB2.0 |
ГНСС | GPS/Galileo/BDS/GLONASS |
Протокол Wi-Fi | 802.11a/b/g/n/acSupports 2×2 MIMO Wi-Fi |
Робоча частота Wi-Fi | 2.4G:2.400 – 2.476GHz*, 2.400 – 2.4835GHz5.8G:5.725 – 5.829GHz*, 5.725 – 5.850GHz*Only applicable to SRRC regionsNote: Some frequencies are only available in some regions or only used in door. For details, please refer to local law and regulations. |
Wi-Fi Effective IsotropicRadiated Power (EIRP) | 2.4G:≤30dBm (FCC/ISED); ≤20dBm (CE/SRRC); ≤12.14dBm (MIC)5.8G:≤30dBm (FCC/SRRC/ISED); ≤14dBm (CE) |
Bluetooth | Bluetooth 4.2 |
Робоча частота Bluetooth | 2.400-2.4835GHzNote: Some regions specify frequency ranges. For details, please refer to local laws and regulations. |
Bluetooth Effective IsotropicRadiated Power (EIRP) | ≤20dBm |
Антена | Dual antennas, 1T2R, detachable design |
Робоча частота | 900M: 902 – 928MHz*2.4G: 2.400 – 2.476GHz**,2.400 – 2.4835GHz5.2G: 5150-5250MHz***5.8G: 5.725 – 5.829GHz**,5.725 – 5.850GHz*Only applicable to FCC and ISED regions**Only applicable to SRRC regions***Only applicable to FCC and RCM regionsNote: Some frequencies are only available in some regions or only used in door. For details, please refer to local law and regulations. |
Effective Isotropic Radiated Power(EIRP) | 900M:≤30dBm (FCC/ISED)2.4G:≤30dBm (FCC/ISED/RCM); ≤20dBm(CE/SRRC)5.2G:≤30dBm (FCC/RCM)5.8G:≤30dBm (FCC/SRRC/ISED/RCM); ≤14dBm(CE) |
Maximum Transmission Distance(Without Interference and Blocking) | FCC: 12 kmCE/SRRC: 8 km |
Роздільна здатність | 1440×720 |
Частота оновлення | 60Hz |
Сенсорне керування | Supports 10-point touch |
Час заряджання | About 90 minutes(charging time is related to actual remaining power) |
Battery Endurance | 1.5 hours (Max brightness)2.5 hours (50% brightness) |
Battery Replacement | Підтримується |
Робоча температура | 0 ~ +40℃ |
Тип батареї | Літій-полімерний акумулятор 3S |
Номінальна ємність | 6175 mAh |
Енергія батареї | 68.7 Wh |
Напруга | 11.13 V |
Обмеження напруги заряджання | 12.75V |
Rated Charging Power | 78W |
Вага | 309g |
Battery charging temperature | +5-+45℃(When the battery temperature is below 5℃, the battery stops charging. When the battery temperature is above +45℃, the battery stops charging.) |
Ideal storage environment | + 22℃ ~ +28℃ |
Температура та вологість зберігання | – 10℃ ~ +30℃, 65 ± 20%RH |
power input | 100-240V ~ 50/60 Hz, 1.5 A |
Output port | Battery charging interface/USB-A |
Battery charging interface | 12.75V⎓5A |
USB charging port | 5V⎓3A, 9V⎓2A, 12V⎓1.5A |
Номінальна потужність | 63.75W Max |
