DJI AeroScope

В наявності

Coverage with a radius of up to 5 km
Compatible with most drones
Locating the drone and remote controller*
Definition of a home point
Identification time 2 seconds

* If there is no communication between the drone and the remote control, it will not work.

Опис
Додаткова інформація

Опис

DJI AeroScope

COMPLETE DRONE DETECTION PLATFORM

While the popularity of consumer drones continues to increase, it has posed potential safety and security challenges for areas such as airports, prisons, nuclear power plants, and various government facilities and infrastructure. Traditional protections in these locations may not be able to adequately detect and monitor UAVs to prevent consequential incidents. AeroScope is able to identify the vast majority of popular drones on the market today by monitoring and analyzing their electronic signals to gain critical information, allowing users to protect the integrity of their flight-sensitive environment.

Effective Detection System

AeroScope is a comprehensive drone detection platform that rapidly identifies UAV communication links, gathering information such as flight status, paths, and other information in real-time. This monitoring data stream helps users make an informed response as soon as possible. Drone identification technologies are nascent and may be subject to various laws and regulations that continue to evolve. It is the customer’s responsibility to comply with any applicable laws concerning the use of AeroScope within the jurisdiction(s) of operation.

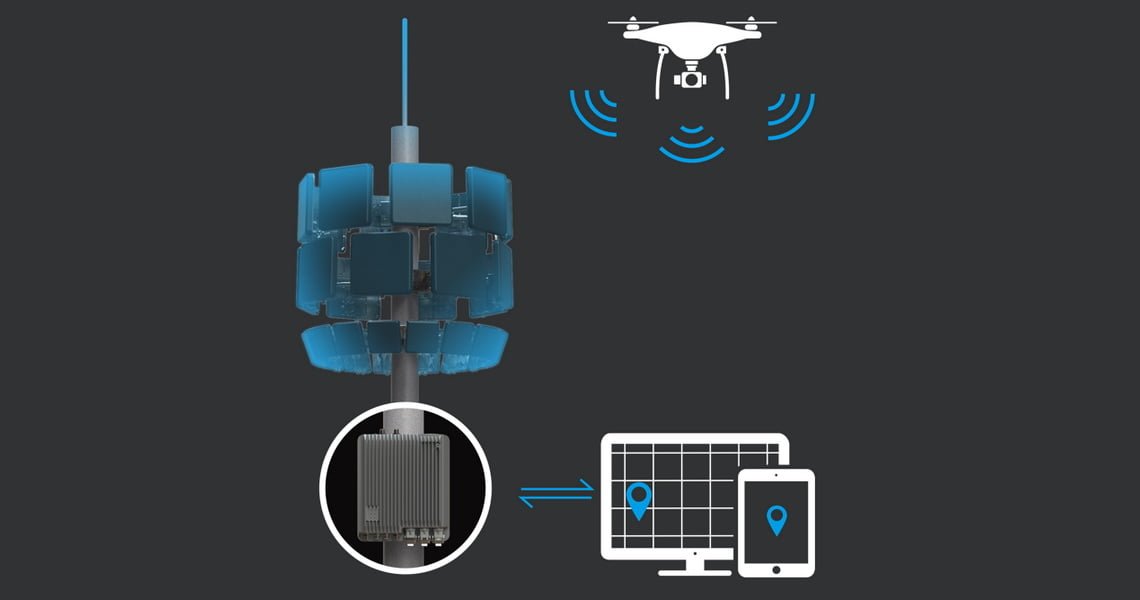

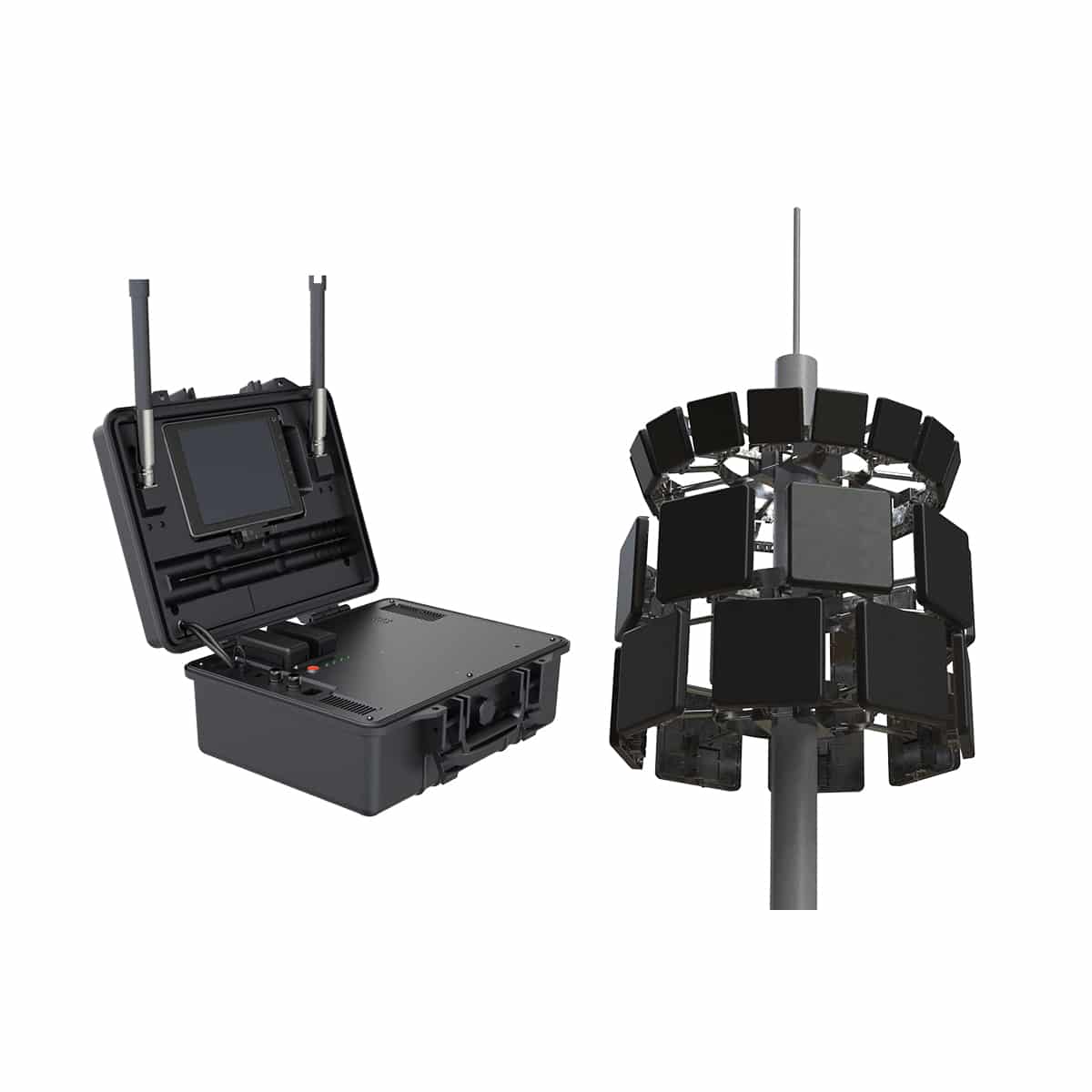

AeroScope Stationary Unit

Designed for continuous protection of large-scale sites, the AeroScope stationary unit supports customization and construction according to the specific site and user demands to completely cover the surrounding airspace. Under ideal conditions, the system can monitor a range of up to 50 km and obtain key information from drones in as fast as 2 seconds. Monitoring data can be integrated with users’ existing security systems to efficiently provide an integrated monitoring system.

This system also supports public cloud, private cloud, and local deployment, capable of meeting specific needs such as off-site monitoring and data segregation.

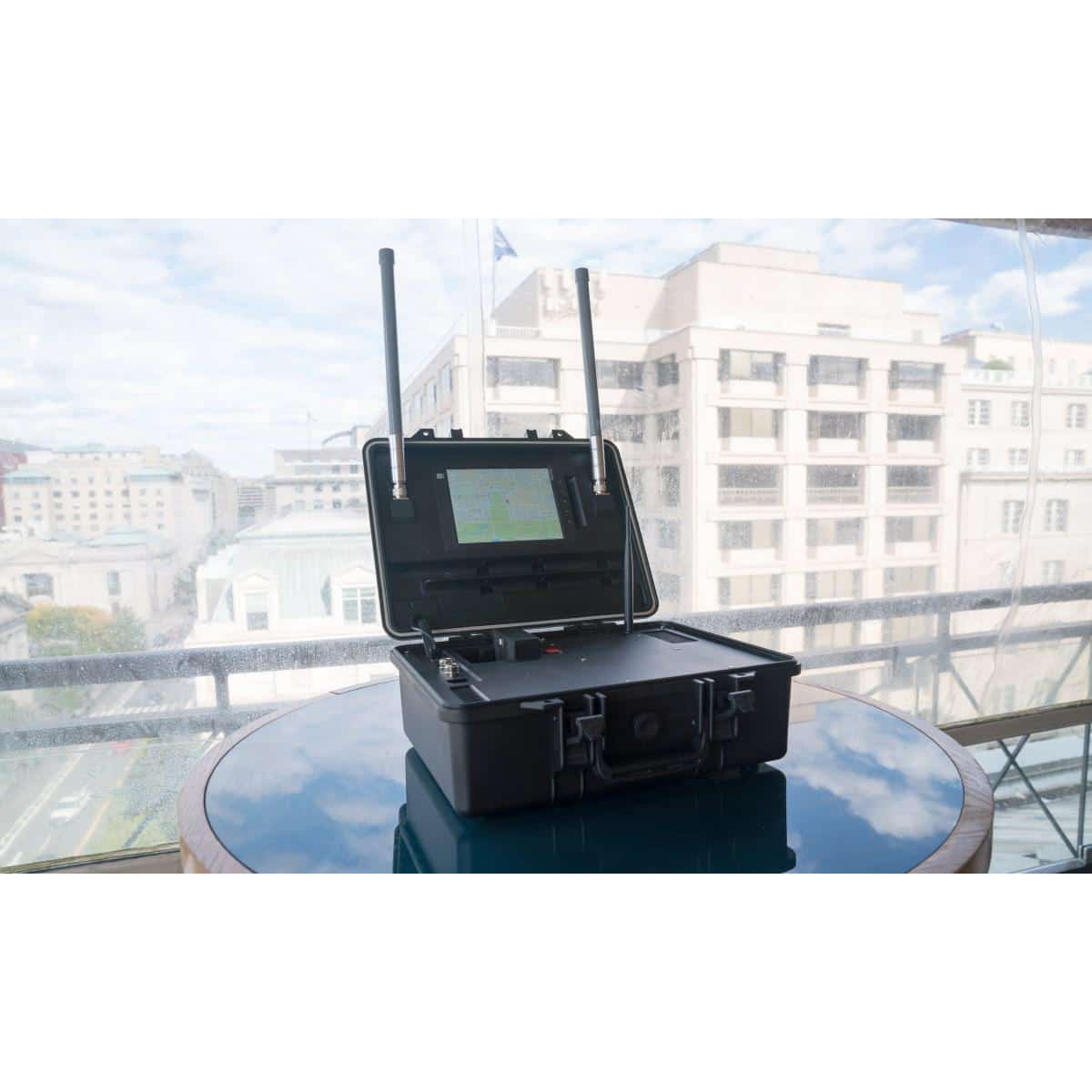

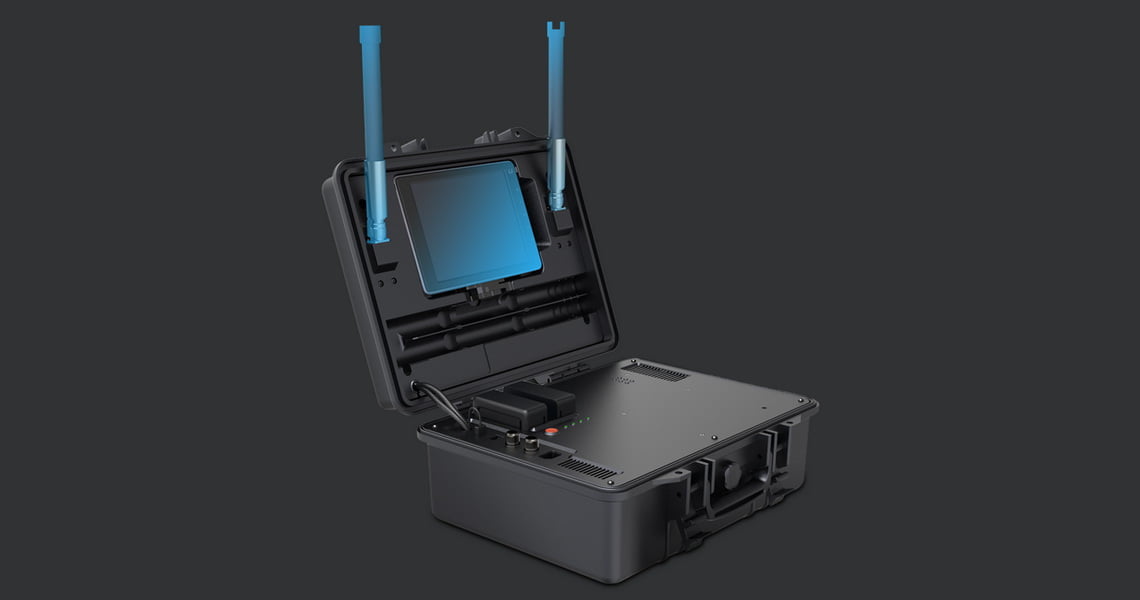

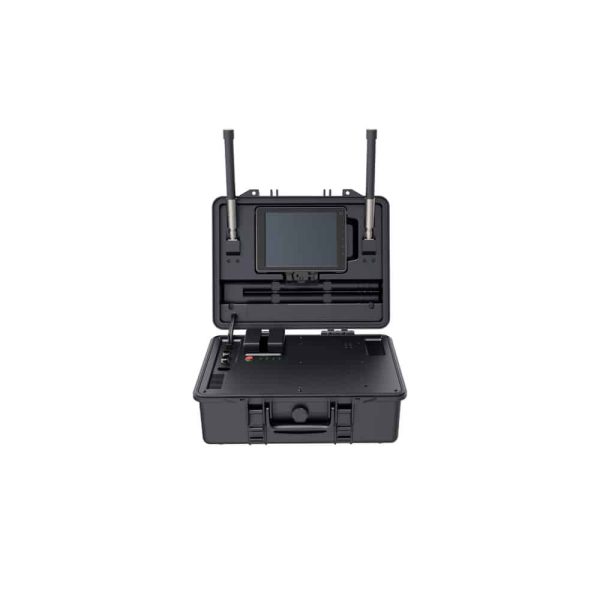

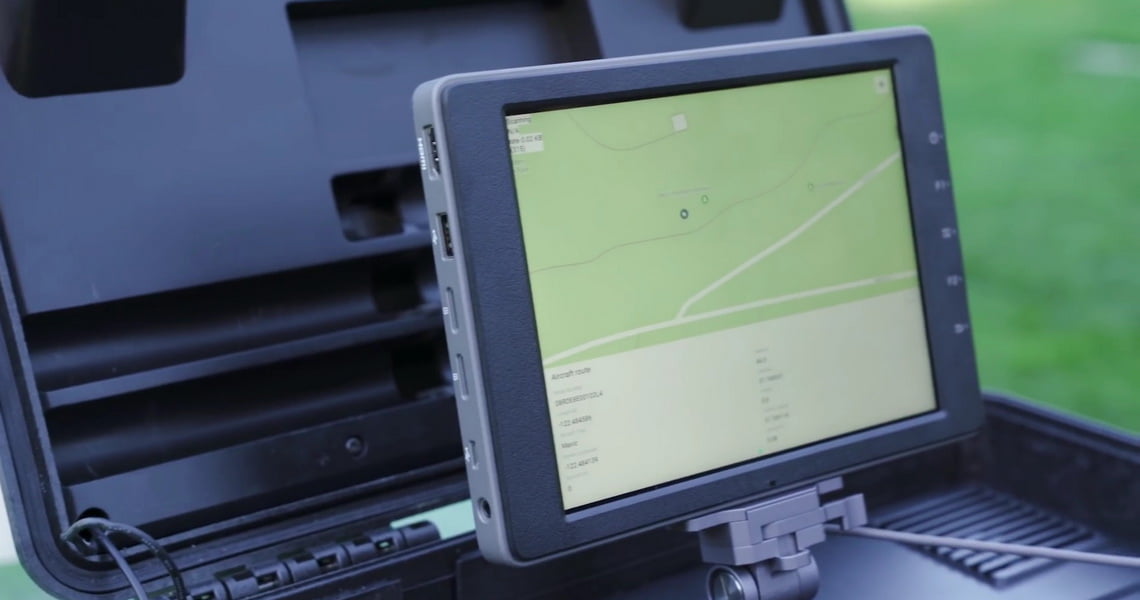

AeroScope Portable Unit

The portable unit allows quick deployment and start-up of the system in the field. The device is a single unit, ready for operation. The system can be powered either from TB50 smart batteries or from power sources located at the temporary system location. The portable unit is ideal for emergency use where there is no need to deploy a fixed unit. For a full-fledged mode of operation, connection to the information network is not required.

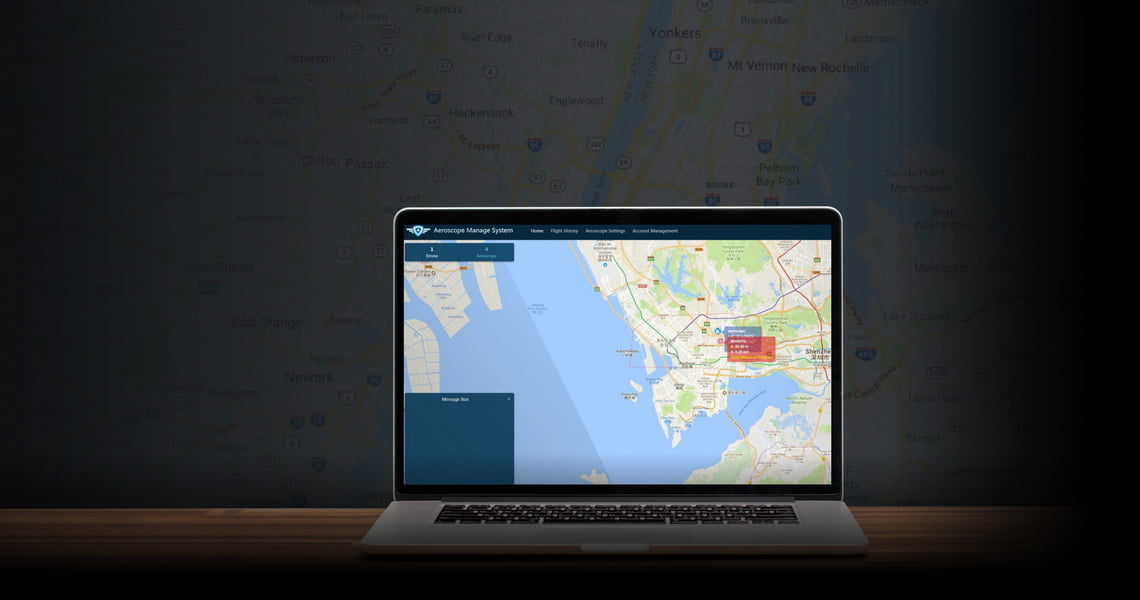

Backstage Management System & SDK

The AeroScope Backstage Management System is the core of a comprehensive drone security system. Using advanced information management technology, this system provides central monitoring, command, and investigation tools, integrating with data collected from previous flights. The AeroScope Backstage Management System is a comprehensive and convenient system for enterprises to monitor drones and help make the public airspace safer. It also supports a Software Development Kit (SDK) to meet customers’ specific demands and support the integration of different systems.

Airports

Ensuring the safety of the airport in order to prevent the appearance of unmanned aerial vehicles in the runway area.

Government Sites

Preventing drones from entering the territory adjacent to government buildings to prevent terrorist activities.

Prisons

Prevention of transmission by unmanned aerial vehicles of prohibited items.

Power Plants

The use of a drone detection system in the territories of power plants as a component of the global security system of the facility.

Prohibited Military Zones

Deployment of a security system in sensitive areas belonging to the armed forces.

Secure Locations

Ensuring the safety of civilian facilities and territories during emergency and emergency situations.

Додаткова інформація

Модель	AS-P1800
Operating weather conditions	IP54 (folded)
Electromagnetic Compatibility	This equipment meets electromagnetic compatibility requirements and also meets below criteria: Europe: EN 55032: 2015 EN 55024: 2010+A1:2015 EN 61000-3-2: 2014 EN 61000-3-3: 2013 United States: 47 CFR Part 15, Subpart B:2016
Operating power consumption	Approx. 70W
Input Voltage	Voltage range: 100V AC ~ 240V AC
Робоча температура	-20…+40°C
Recommended Storage Temperature	+22…+30°C
Relative Humidity	5% RH ~ 100% RH
Absolute Humidity	1 g/m3 ~ 30 g/m3
Atmospheric Pressure	70 kPa ~ 106 kPa
Dimensions (without antennas) (H×W×D)	405×327×175 mm
Вага	6,8 kg
Supported Aircraft	Phantom series Inspire series Mavic series Spark series
Battery Model	TB50-4280mAh-22.8V
Ємність акумулятора	4280 mAh
Battery Voltage	22,8 V
Тип батареї	LiPo 6S
Енергія батареї	97,58 Wh
Battery Weight	515 g
Battery Charging Temperature	+5…+40°C
Battery Operating Temperature	-20…+40°C
Maximum Battery Charging Power	180 W
