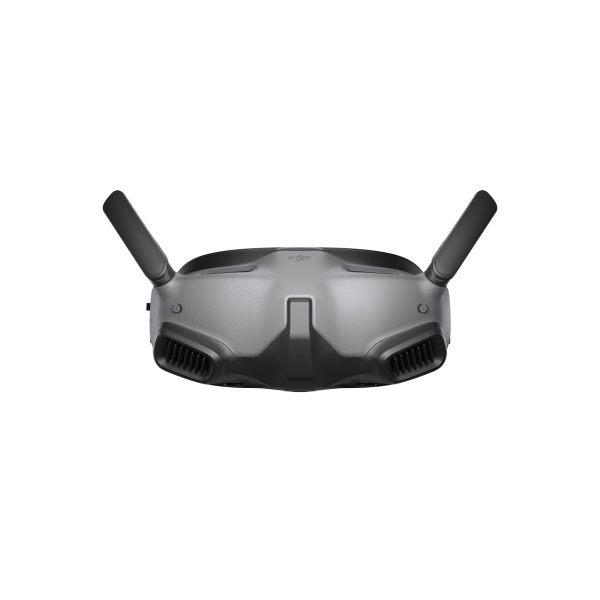

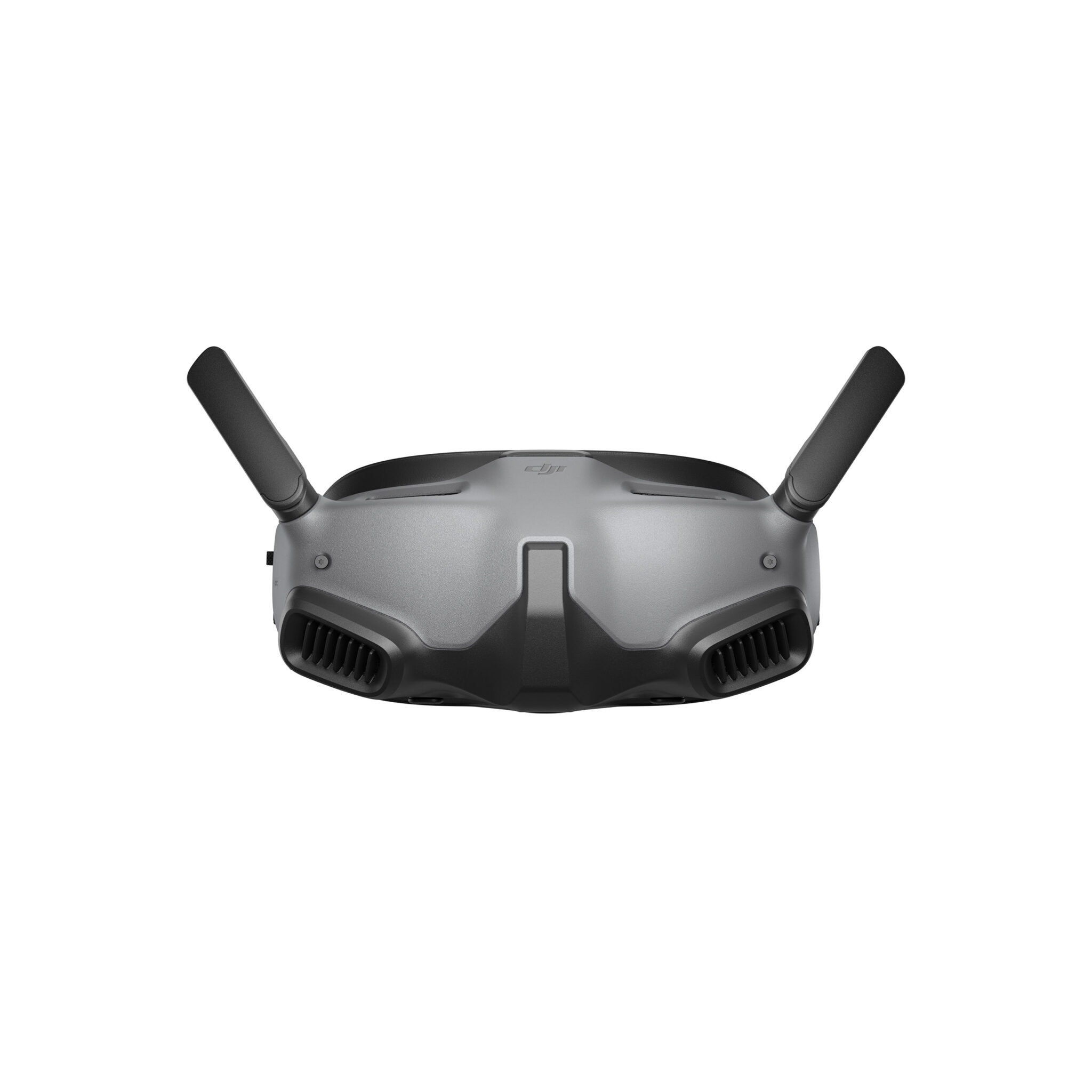

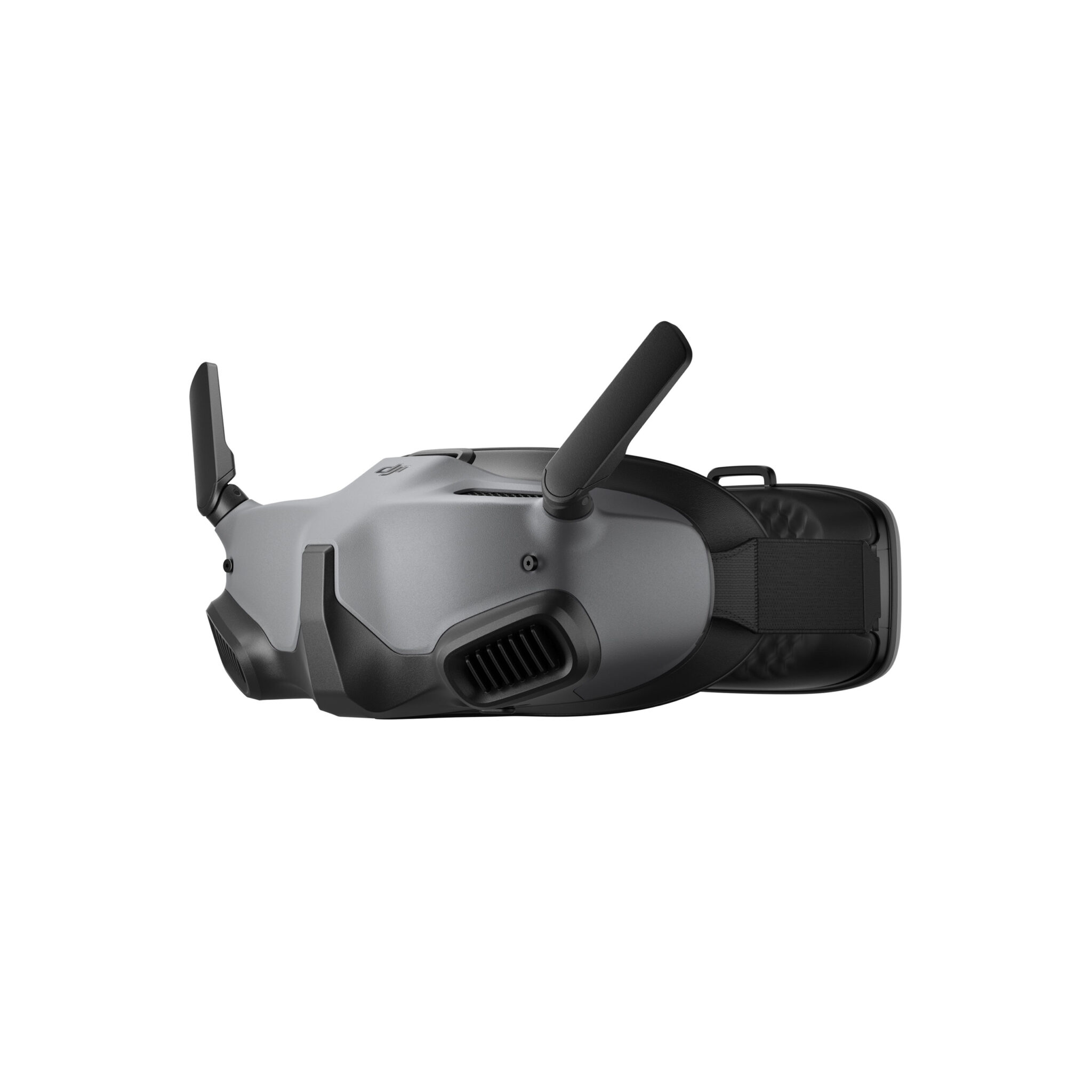

DJI Goggles Integra
DJI Goggles Integra features an integrated design, adopts two 1080p Micro-OLED screens with up to 100Hz refresh rate, and supports ultra-low-latency video transmission, delivering a more immersive flight experience.
Опис
DJI GOGGLES INTEGRA
AWAKEN!
Легкий та портативний
Micro-OLED Screens
DJI O3+ Video Transmission [1]
HD Low-Latency
Soak up the sky with DJI Goggles Integra, and extend your experience with DJI Avata and DJI RC Motion 2 for acute control and immersive, first-person flight. Use the goggles and remote control not only for precise control, but also for an incredible feeling and emotion when piloting in first person.
Combined for Convenience

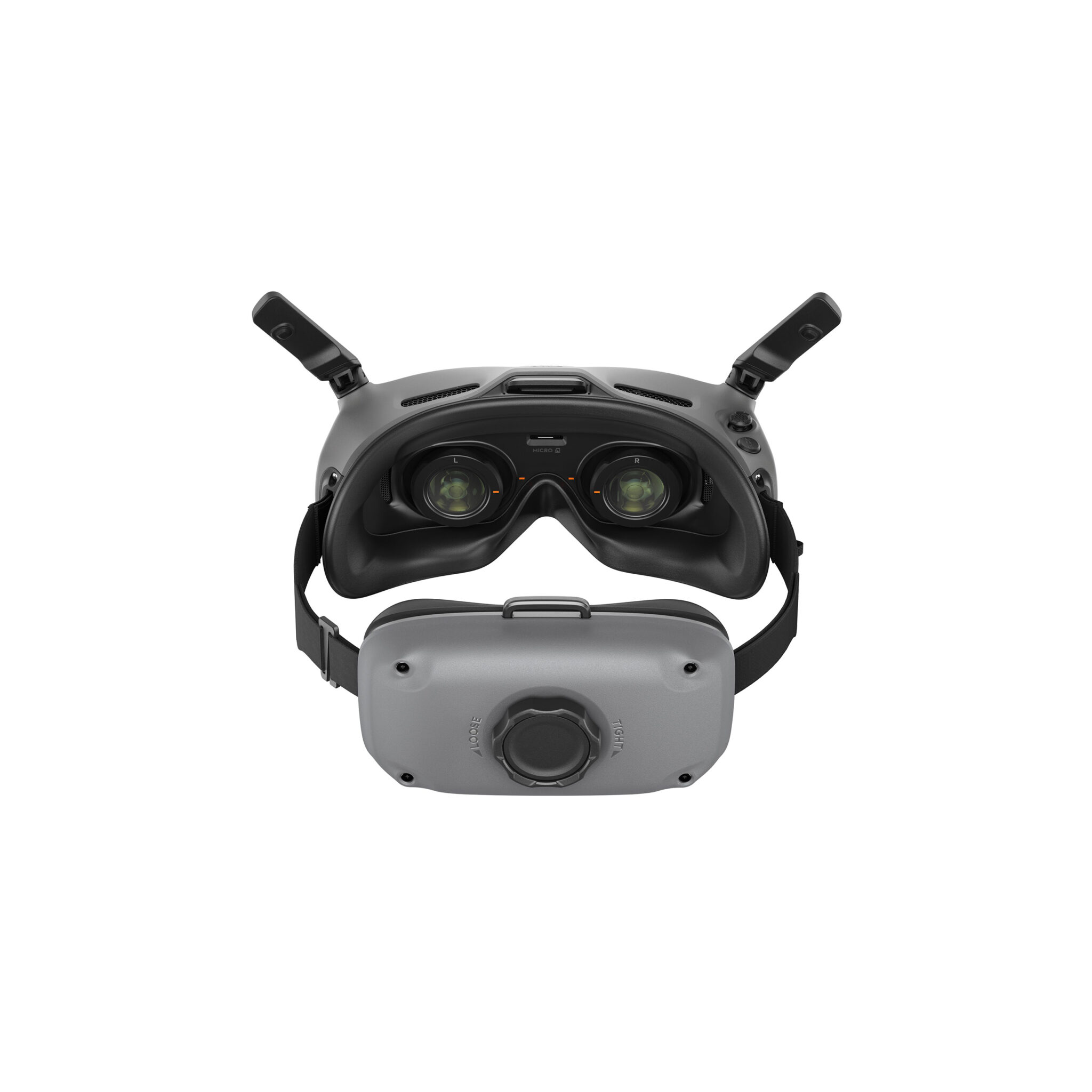

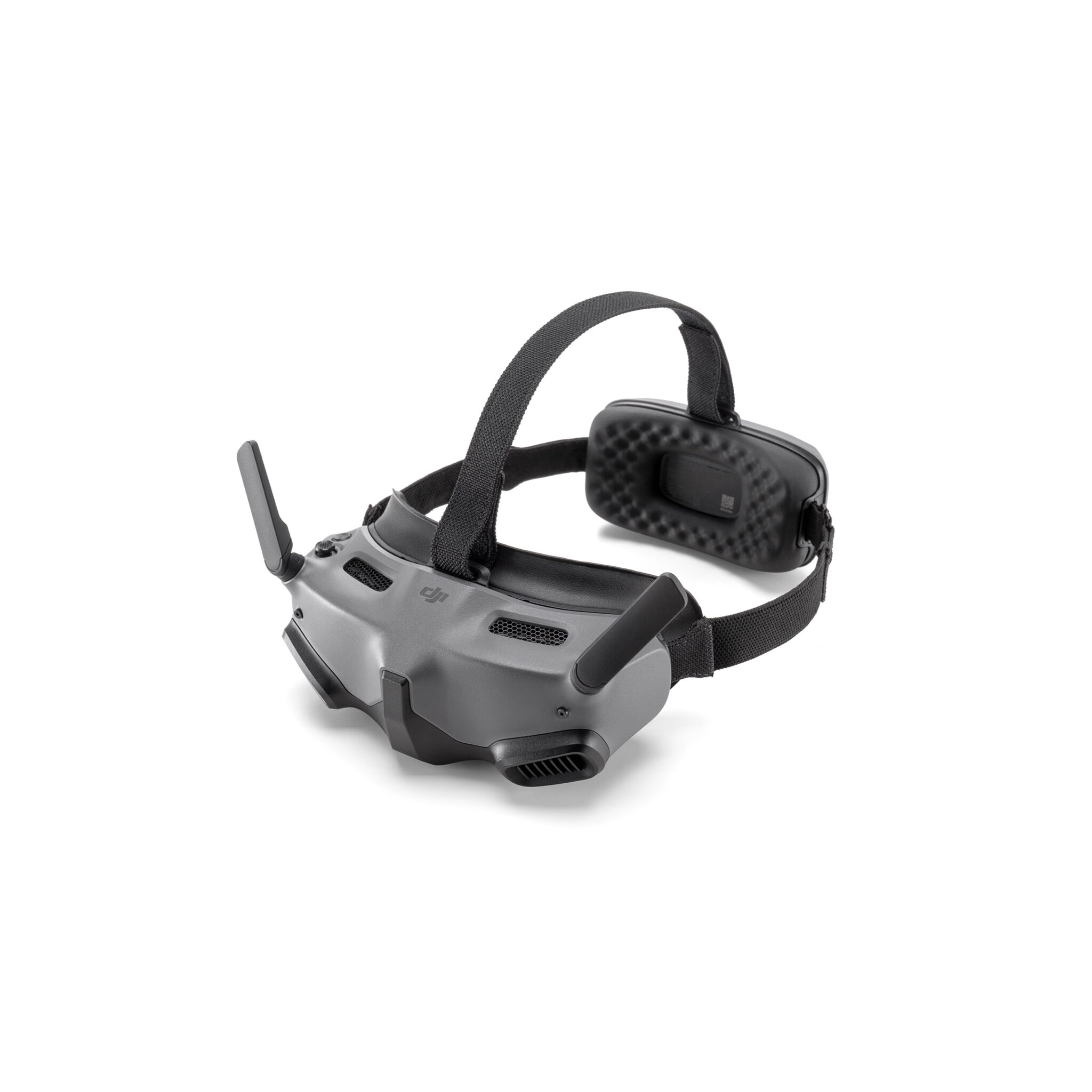

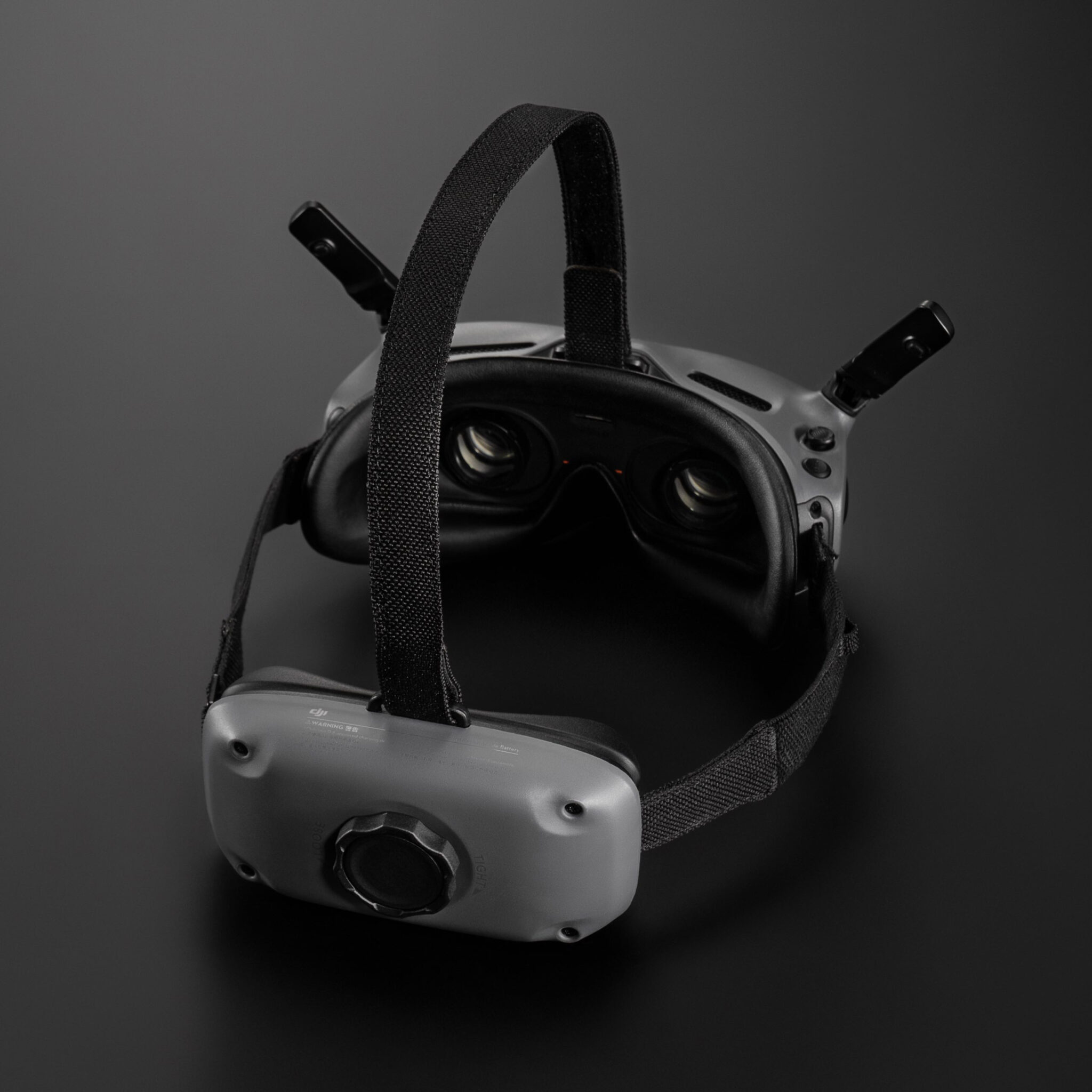

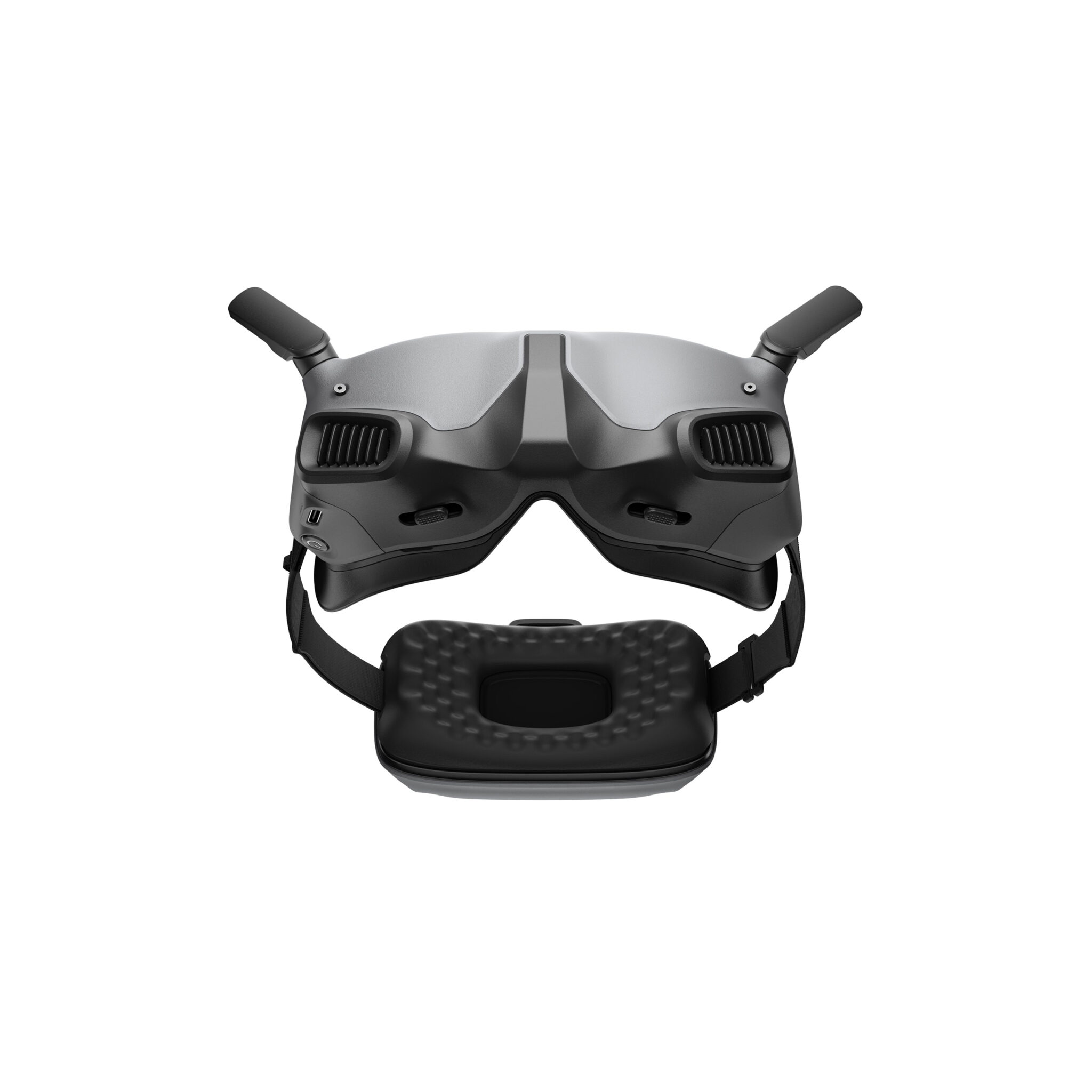

The lightweight DJI Goggles Integra adopts an integrated design that combines headband and battery into one, getting rid of pesky cables and allowing you to effortlessly take the goggles on and off. The built-in battery headband feels lightweight, balanced, and comfortable to wear. [2] DJI Goggles Integra can be used while charging and will stay powered through several full-battery drone flights. So you can keep soaring all day.
Total Weight :
Приблизно 410 г
Antenna Design:
Foldable
Max Operating Time:
Two hours [3]
Display Technology:
Micro-OLED
Screen Resolution:
1080p
Max Brightness:
700 nits
Max Screen Refresh Rate:
100 Hz [4]
Supported Codec Formats
H.264 and H.265
TÜV Rheinland Low Blue Light Certification
DJI Goggles Integra presents HD display quality while protecting your eyes with a comfortable experience.
Ultra-Low Latency, Smooth and Stable Video Transmission
DJI Goggles Integra is equipped with DJI O3+ video transmission, boasting latency as low as 30 ms. [5] The goggles automatically switch between 2.4GHz and 5.8GHz frequency bands to keep a stable signal for a fluid, immersive HD viewing experience with minimal interference. [6]
New SyncSmooth technology produces smooth, fluent video transmission for high-speed aerial photography. [7] The tracking effect of the goggles display frame aligning with the video transmission frame is optimized to cut down video transmission latency and fluctuations. Viewing footage with DJI Goggles Integra is also easier on the eyes, effectively reducing visual fatigue and dizziness.
Lowest Video Transmission Latency:
30 мс
Auto Frequency Band Selection:
2.4 GHz or 5.8 GHz
Share the Sky!
The DJI Fly App
Connect DJI Goggles Integra with the DJI Fly app on your smartphone to display a real-time camera view on your goggles and smartphone simultaneously. Share the view with friends to enjoy stunning and immersive flight together.
1. DJI Goggles Integra supports DJI O3+ video transmission with DJI Avata or the DJI O3 Air Unit.
2. Wearing and viewing experience may vary by user.
3. Measured with an ambient temperature of 25° C (77° F), screen brightness at 4, connection to DJI Avata, the video transmission mode set to 1080p/100fps, head tracking off, and the goggles’ battery fully charged and not supplying power to external devices such as smartphones.
4. The screen refresh rate changes with the video transmission frame rate. It may switch between 100 Hz and 60 Hz to adapt to the current video transmission frame rate.
5. Measured using 1080p/100fps video transmission, tested outdoors in an open, interference-free environment.
6. The 5.8GHz frequency band is banned in certain countries/regions. Check and comply with local laws and regulations before flying.
7. The frame synchronization algorithm for DJI Goggles Integra has been optimized from prior models to improve video transmission and reduce visual fatigue and dizziness.
Додаткова інформація
| Модель | RCDS13 |
|---|---|
| Размер экрана (одного) | 0.49 дюйма |
| Разрешение (одного экрана) | 1920×1080 |
| Частота обновления | До 100 Гц |
| Диапазон IPD | 56-72 мм |
| Угол обзора (одного экрана) | 44° |
| Формат записи видео | MOV |
| Поддерживаемые форматы просмотра видео | MP4, MOV |
| Діапазон робочої температури | От -10° до 40°C |
| Питание | Встроенная батарея |
| Поддерживаемые карты SD | microSD (до 512 Гб) |
| Рекомендовані карти microSD | Карта пам'яті SanDisk Extreme U3 V30 A1 32 ГБ microSDXC |
| Передача видео | При использовании с другим дроном очки автоматически выбирают нужную версию прошивки, чтобы соответствовать параметрам дрона. |
| Рабочие частоты | 2.4000-2.4835 Ггц |
| Мощность передатчика (EIRP) | 2.4000-2.4835 Ггц: |
| Задержка передачи сигнала | 1080p/100fps: всего 30 мс |
| Макс. расстояние передачи сигнала | При использовании с другим дроном очки автоматически выбирают нужную версию прошивки, чтобы соответствовать параметрам дрона. |
| Макс. швидкість передачі відео | 50 Мбит/сек |
| Вес | Около 185 г (с наголовником) |
| Размеры (Д×Ш×В) | 120×48.8×71 мм |
| Ємність | 2450 мАч |
| Напруга | 5.6-8.4 В |
| Тип батареи | Літій-іонний |
| Химический состав | LiNiMnCoO2 |
| Энергопотребление | 17.64 Втч |
| Діапазон температури зарядки | От 5° до 45°C |
| Макс. мощность зарядки | 15 Вт (зарядка в выключенном состоянии) |
| Час роботи | Около 2 часов |
