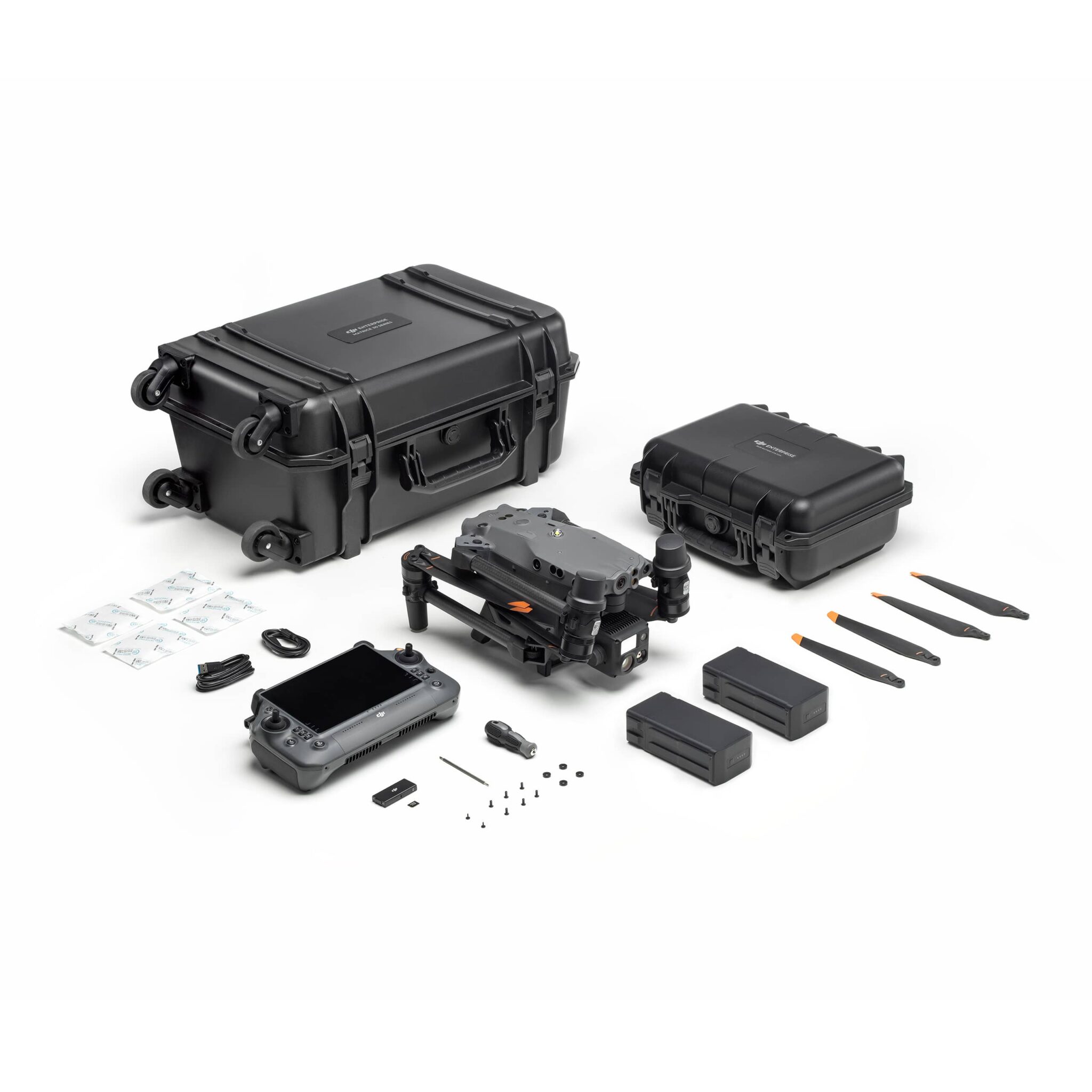

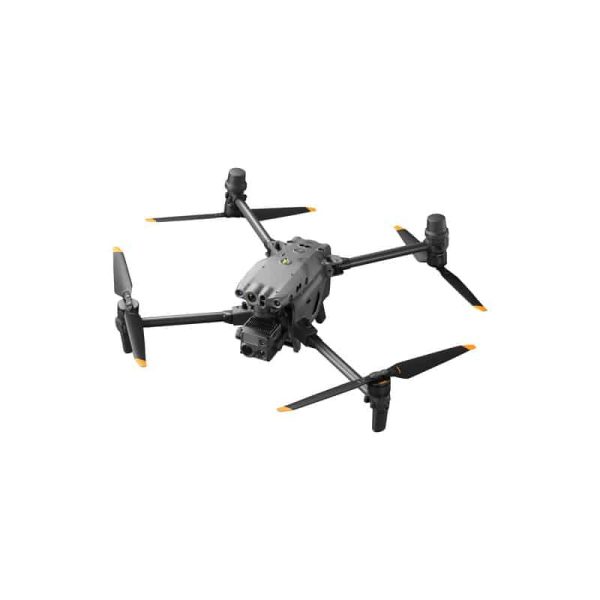

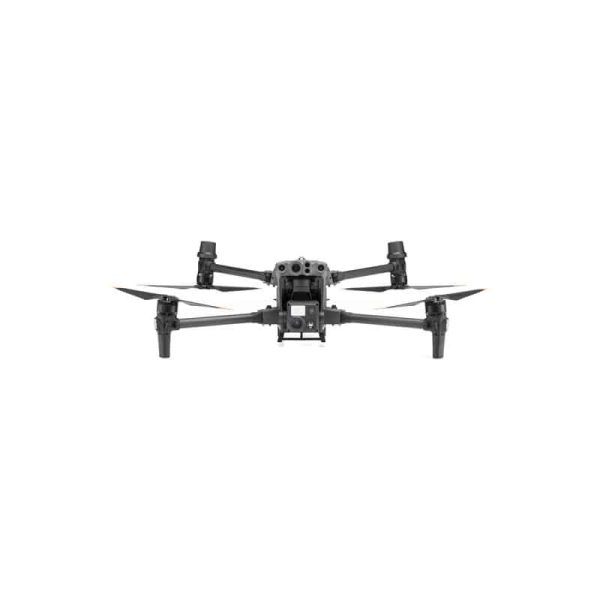

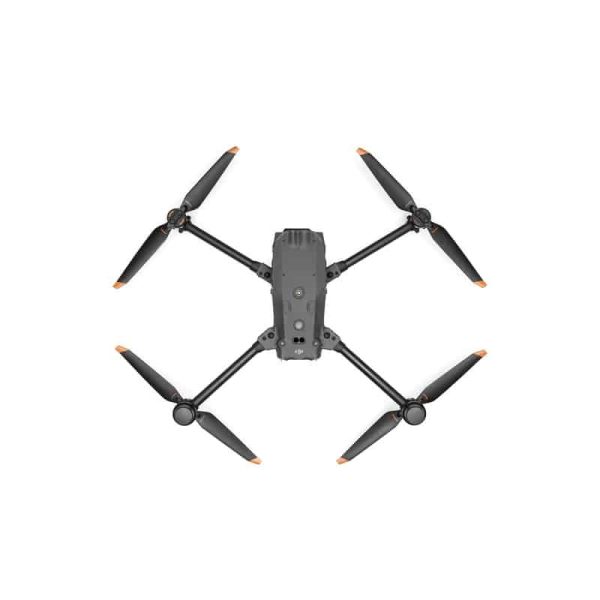

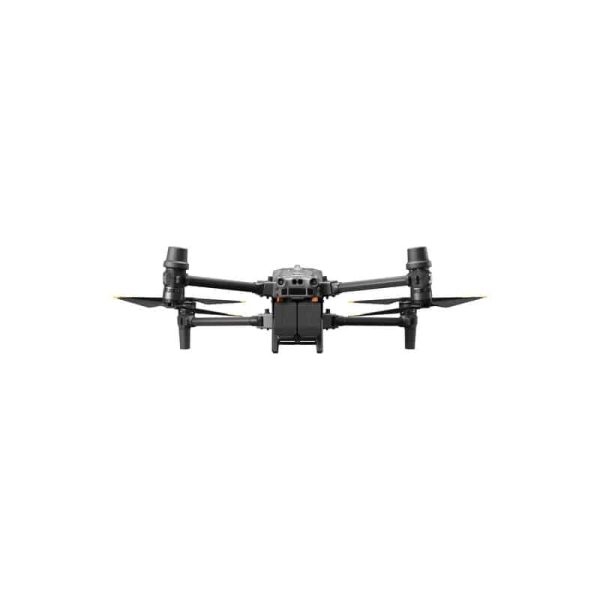

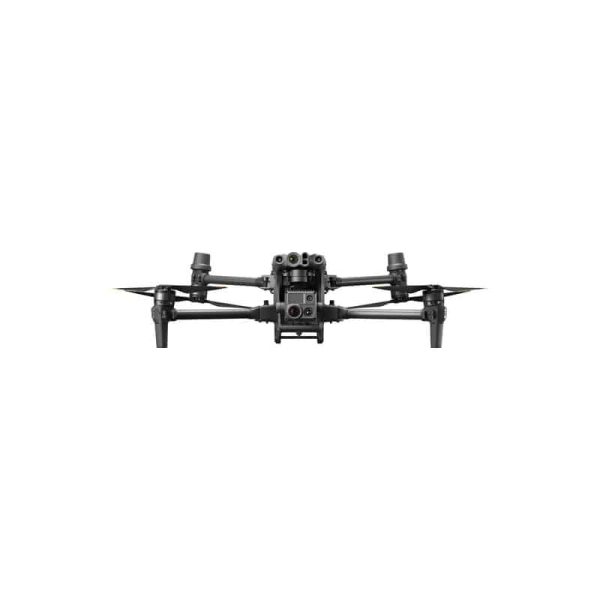

DJI Matrice 30T (With Thermal)
- Lightweight and portable, for those who are mobile
- Integrated Wide, Zoom, and Infrared cameras with a Laser Rangefinder sensor
- IP55 ingress protection, and -20° C～50° C temperature operation range
- Remote control is tailor-made for enterprise users
- 41-Min Max. Flight Time [1]
- Compatible with FlightHub 2 for efficient ground-to-cloud synergy
- Support remote deployment operations with DJI Dock
Опис
DJI Matrice 30T
POWER IN PORTABILITY
Everything for real heroes
Unique aerial intelligence to capture everything
Reliable in the harshest of environments
Portable to go wherever you go
Ready, when you are, to overcome the unknown
A New Generation of Commercial Drones
Matrice 30
Matrice 30T

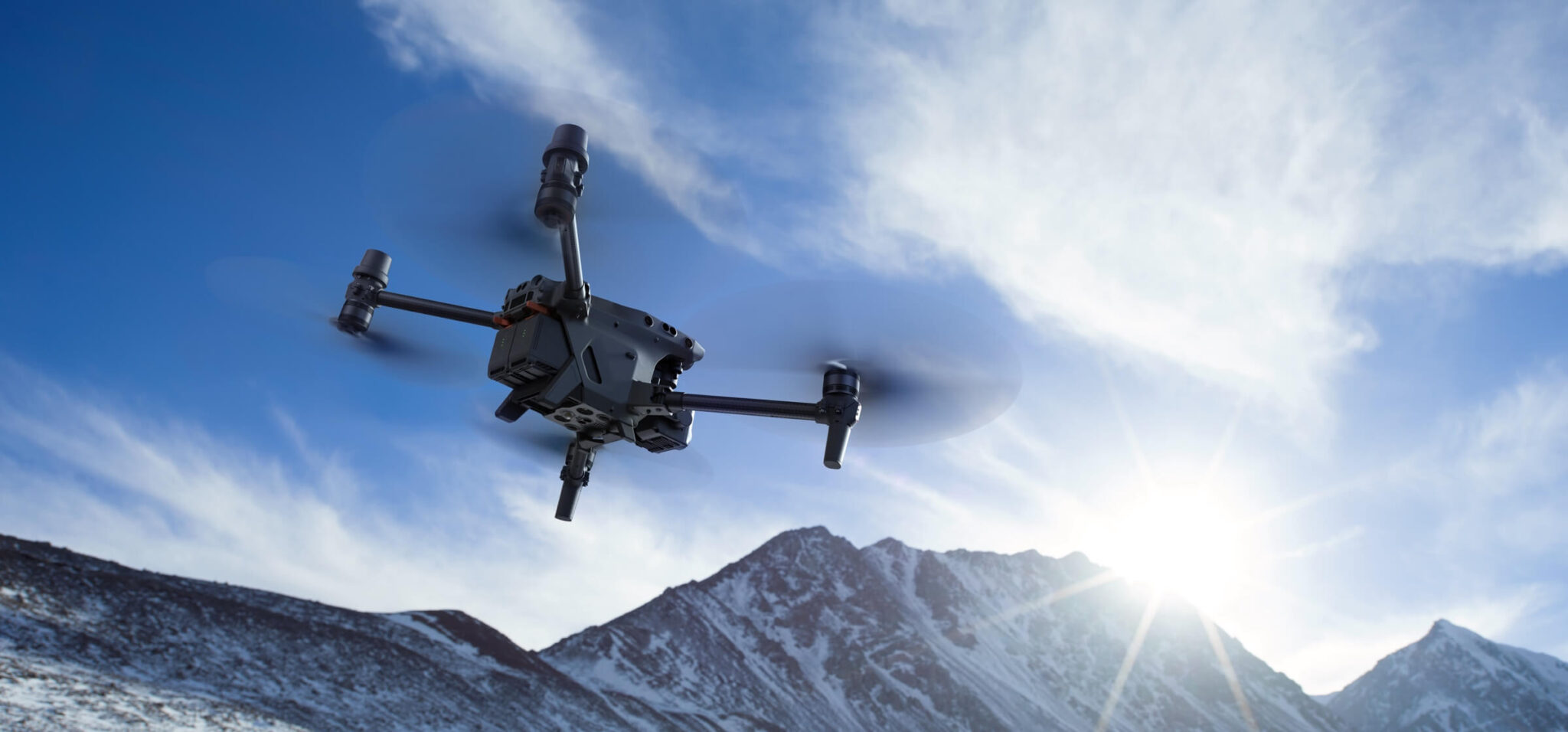

Powerful Flight Performance
A balance of power and portability delivers higher operational efficiency
41 min
Max Max Flight Time[1]
15 m/s
Max Wind Resistance[2]
7000 m
Service Ceiling[3]
23 m/s
Максимальна швидкість

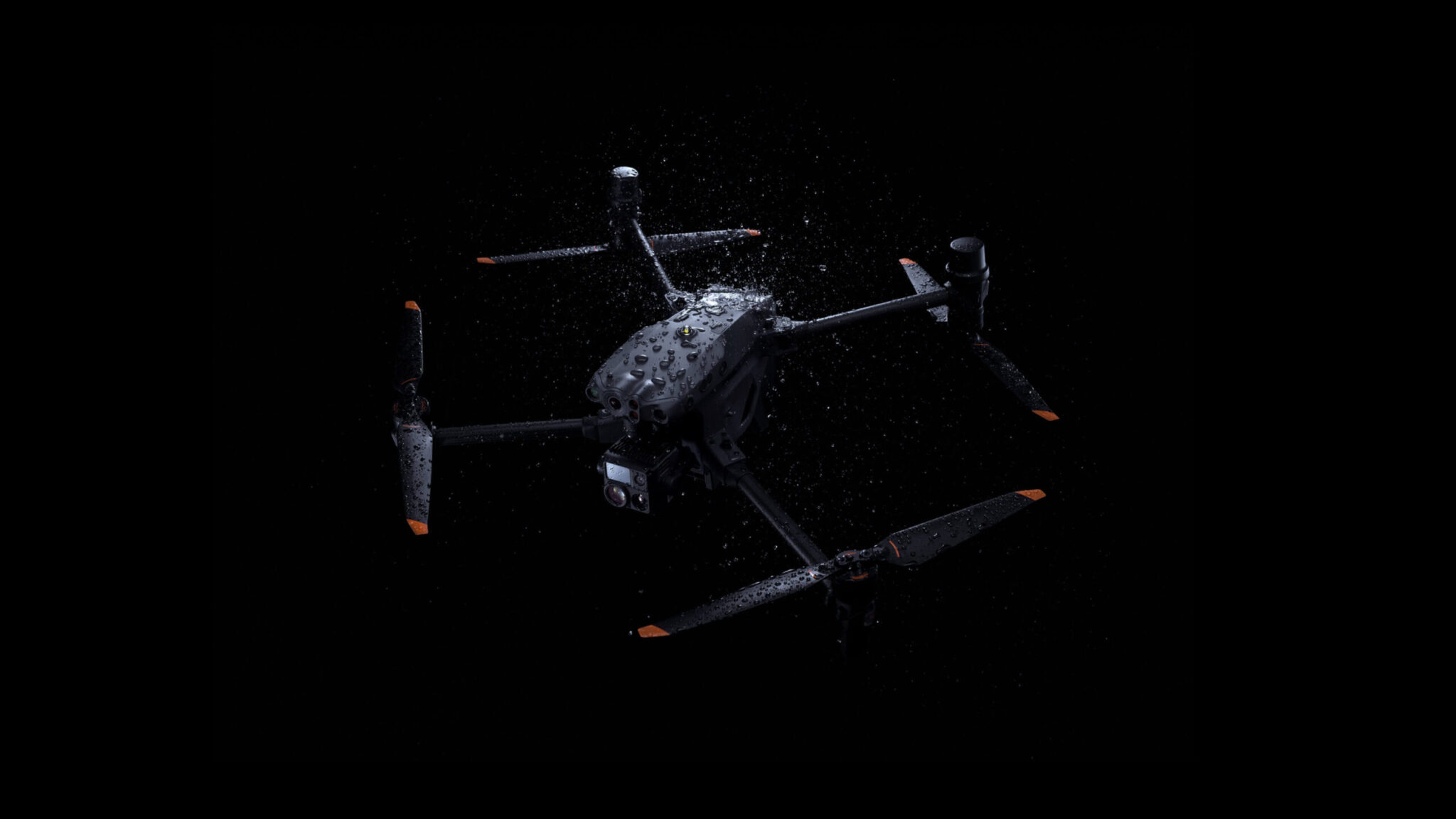

Environmental Adaptability
With IP55 protection, the M30 can easily handle adverse weather and temperatures ranging from -20° C～50° C.
Safe and Reliable
Dual-vision and ToF sensors appear on all six sides of the aircraft, keeping it and your mission safe. The built-in ADS-B receiver provides timely warnings of any incoming crewed aircraft nearby.

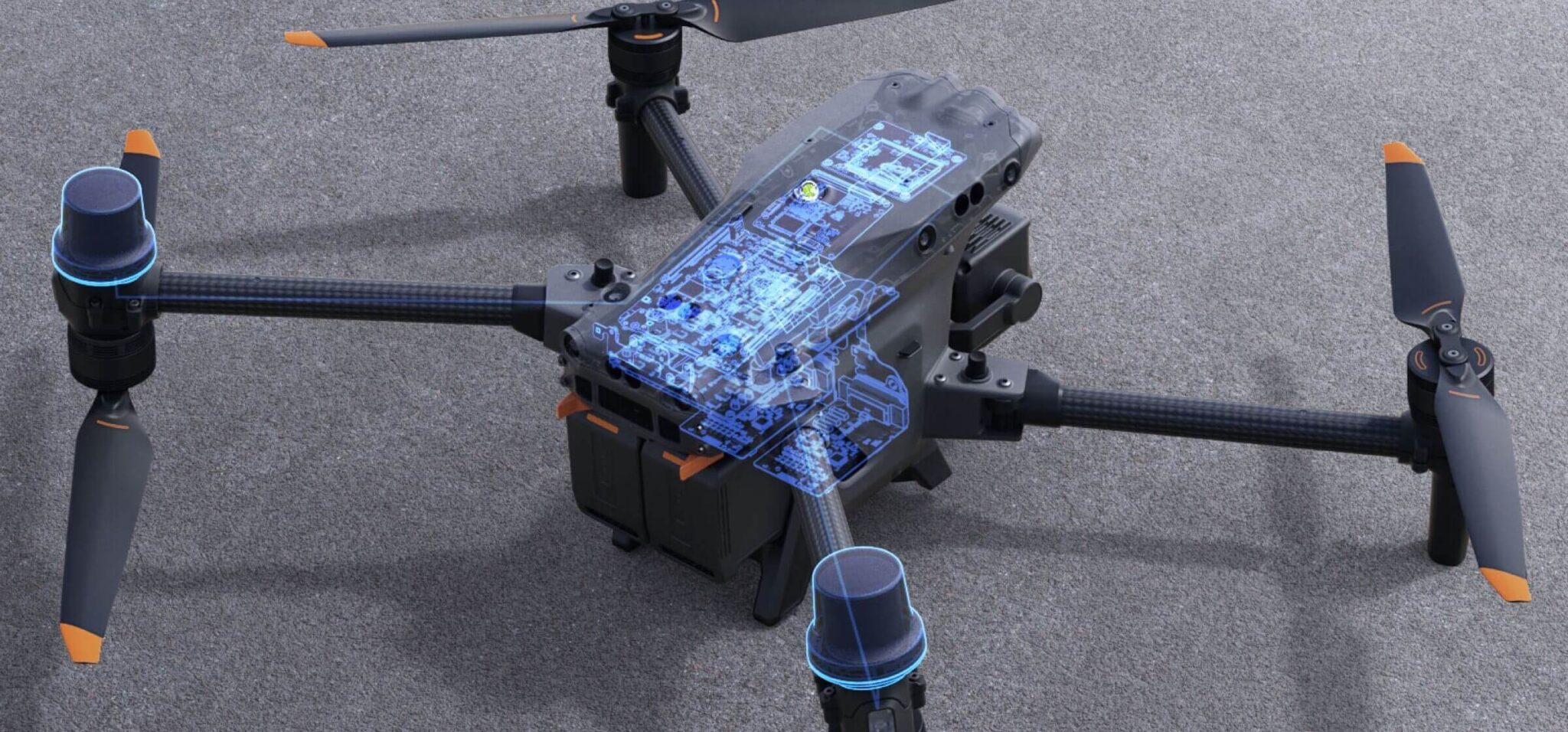

Redundancies and Backup Systems
Built-in advanced redundancy systems help keep your critical missions going even in unexpected scenarios.
Enhanced Transmission
Four built-in antennas support OcuSync 3 Enterprise, which enables triple-channel 1080p video transmission, and seamless swapping between input feeds, even in complex environments.
Bolster your connection with DJI Cellular Module, an optional 4G dongle4 that supports stable video transmission in complex, or remote work environments.

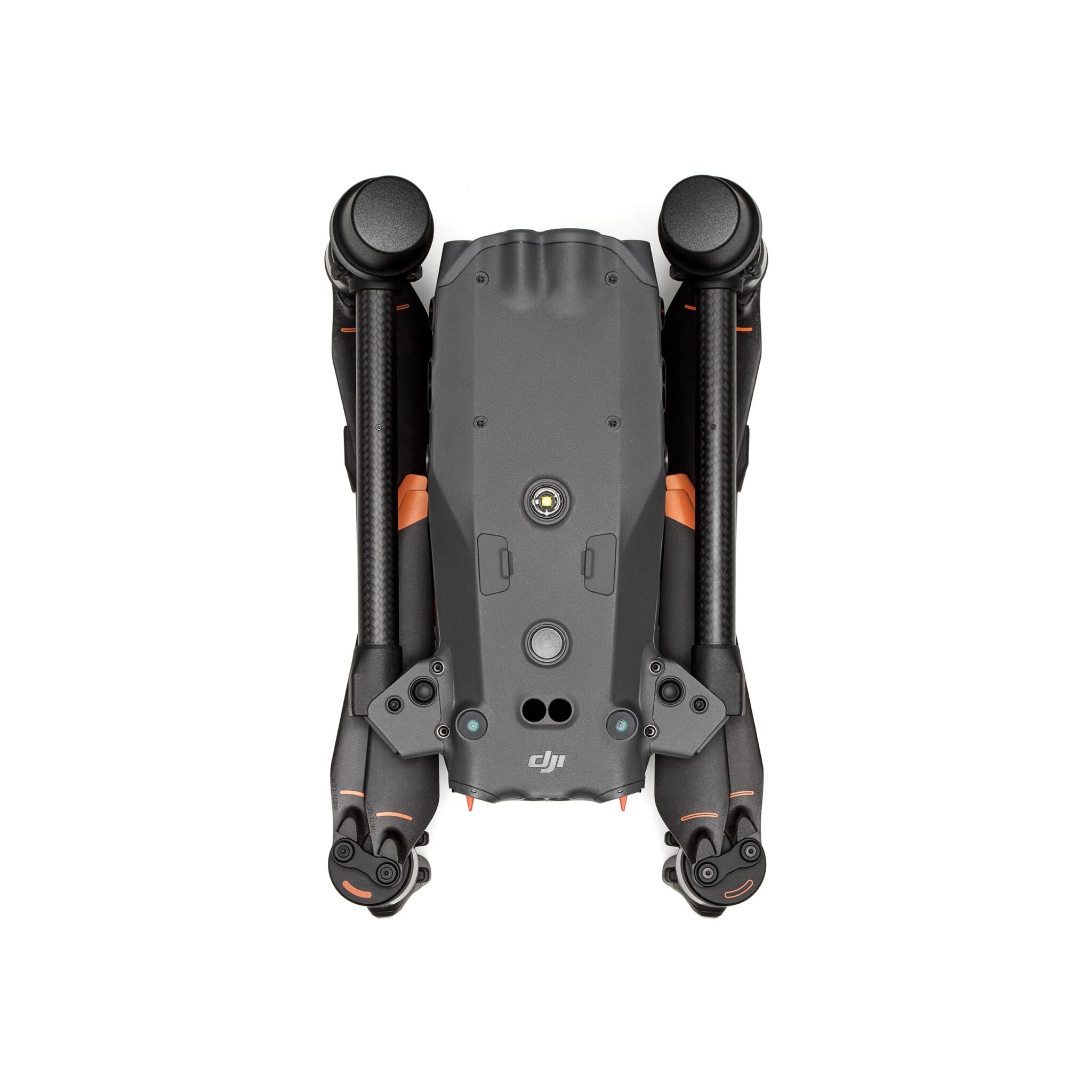

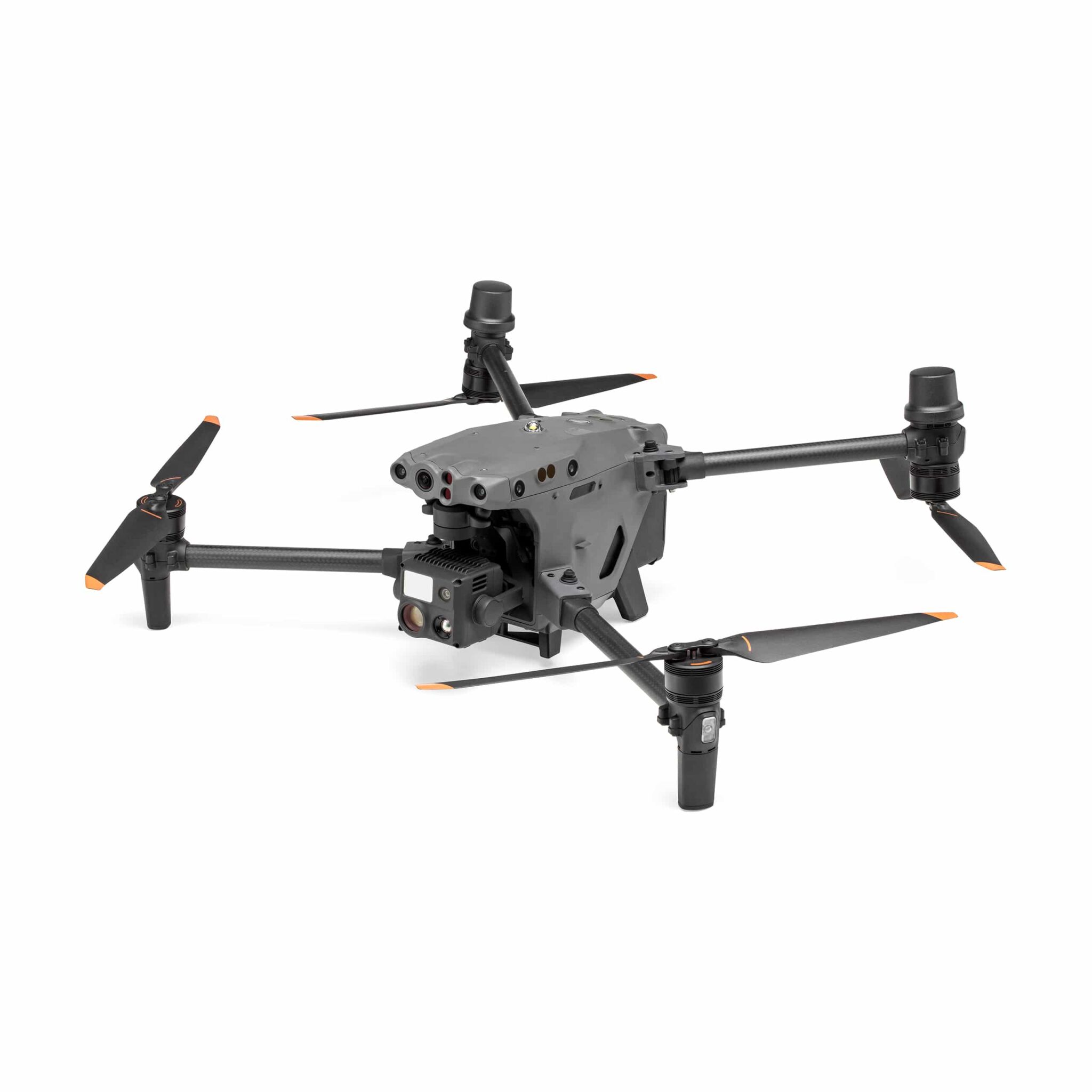

Легкий та портативний
The design of the Matrice 30 is thought out to the smallest detail. Compact and foldable, the M30 Series is easy to pack up, carry, and deploy.

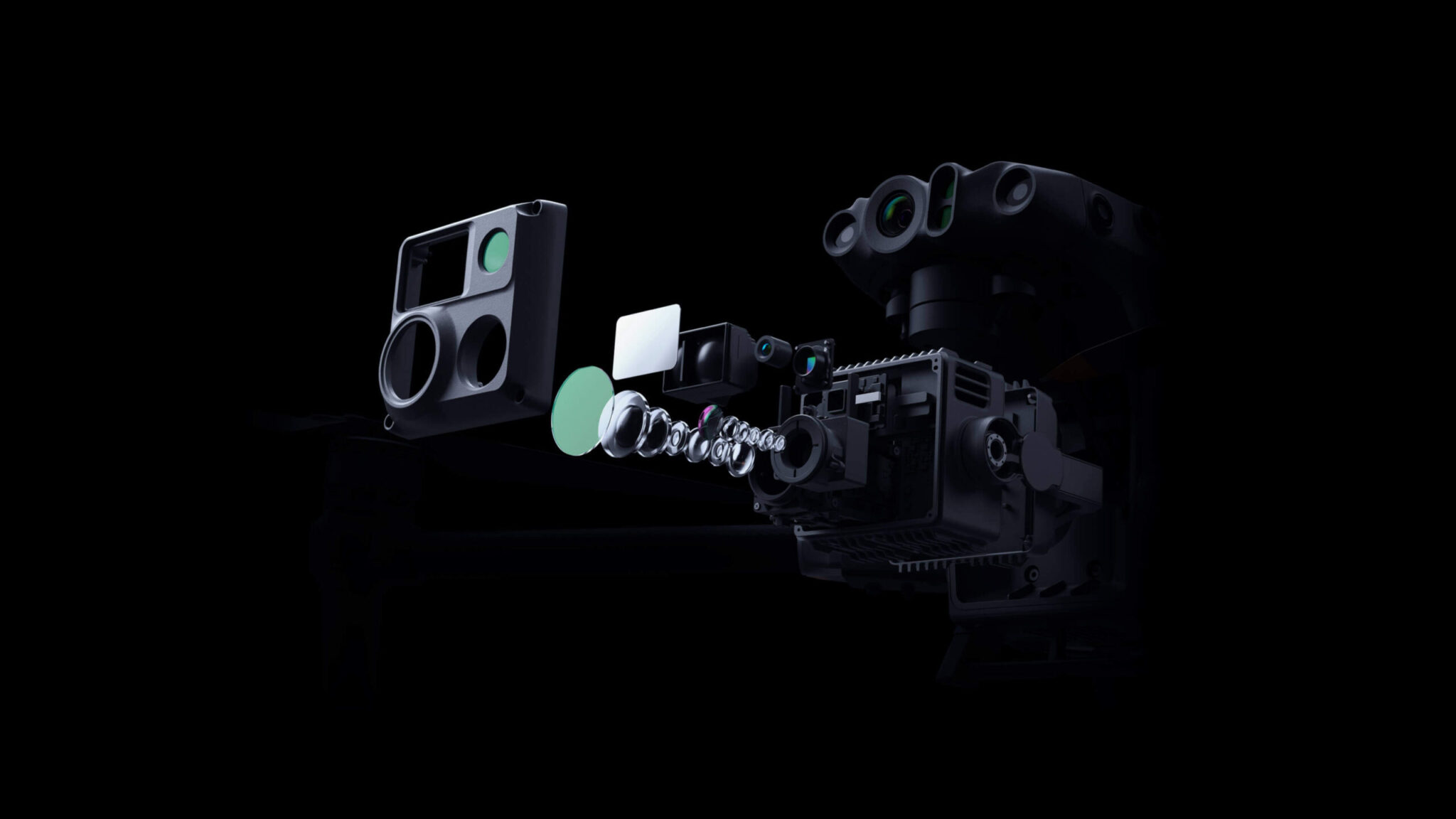

Capture Everything
The M30 Series integrates wide, zoom, and thermal cameras (M30T only) with a laser rangefinder, which together can capture the aerial data you need, when you need it.

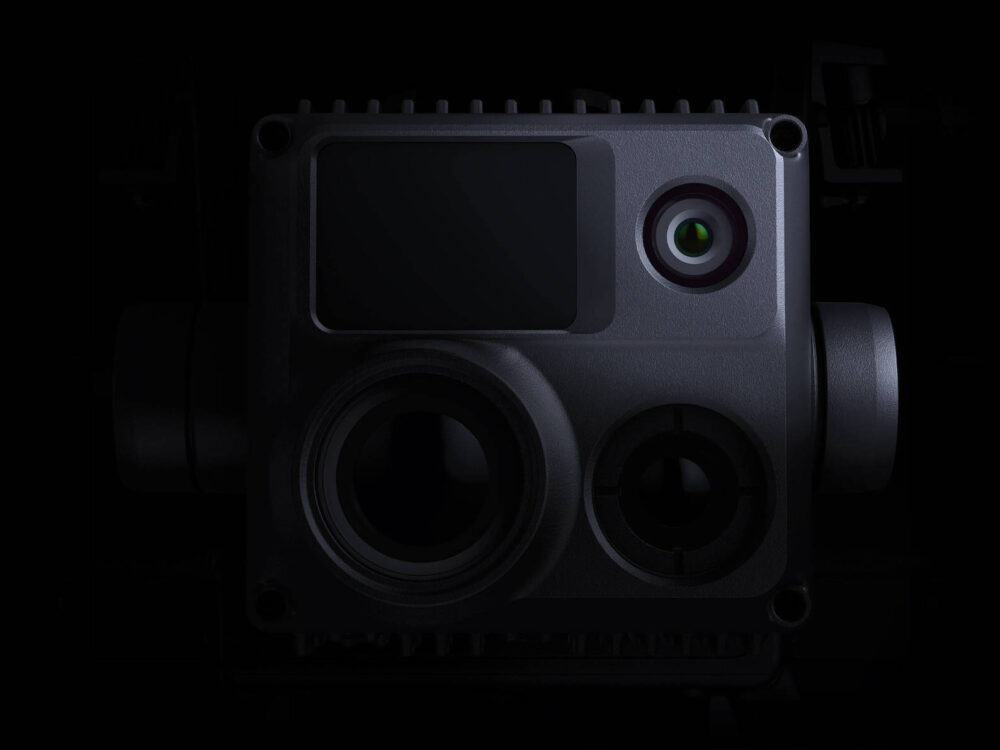

Wide Camera
Equivalent Focal Length: 24 mm, DFOV: 84°
12 MP 1/2” CMOS Sensor
Video Resolution: 4K/30fps

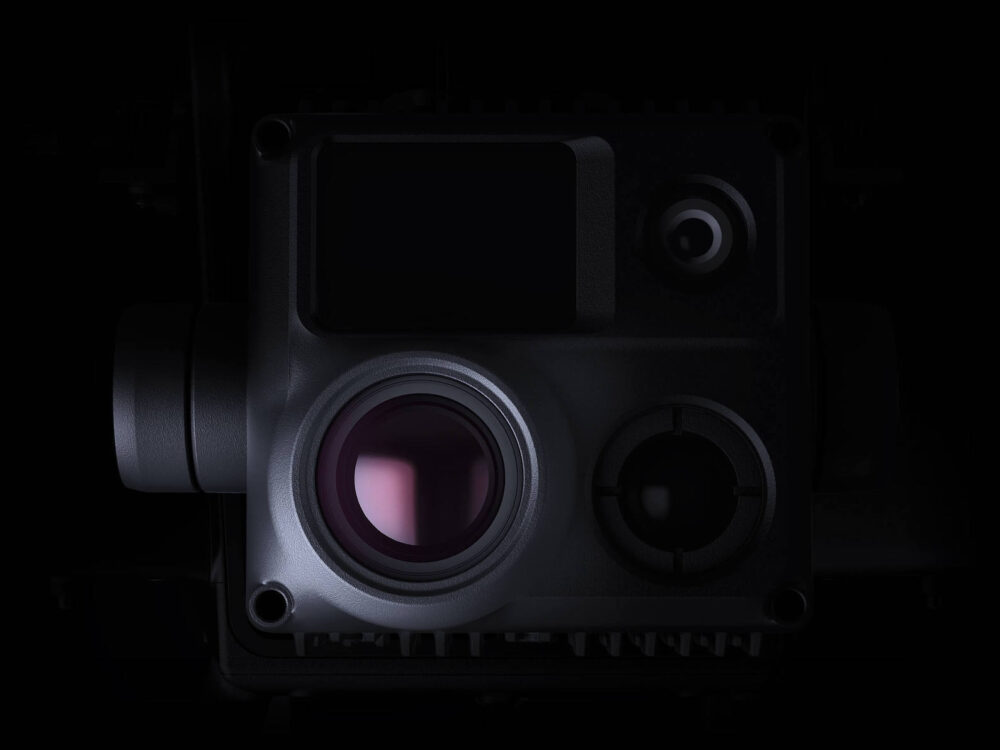

Zoom Camera
48 MP 1/2” CMOS Sensor
5x-16x Optical Zoom
Max 200x Hybrid Zoom
Photo Resolution: 8K
Video Resolution: 4K/30fps

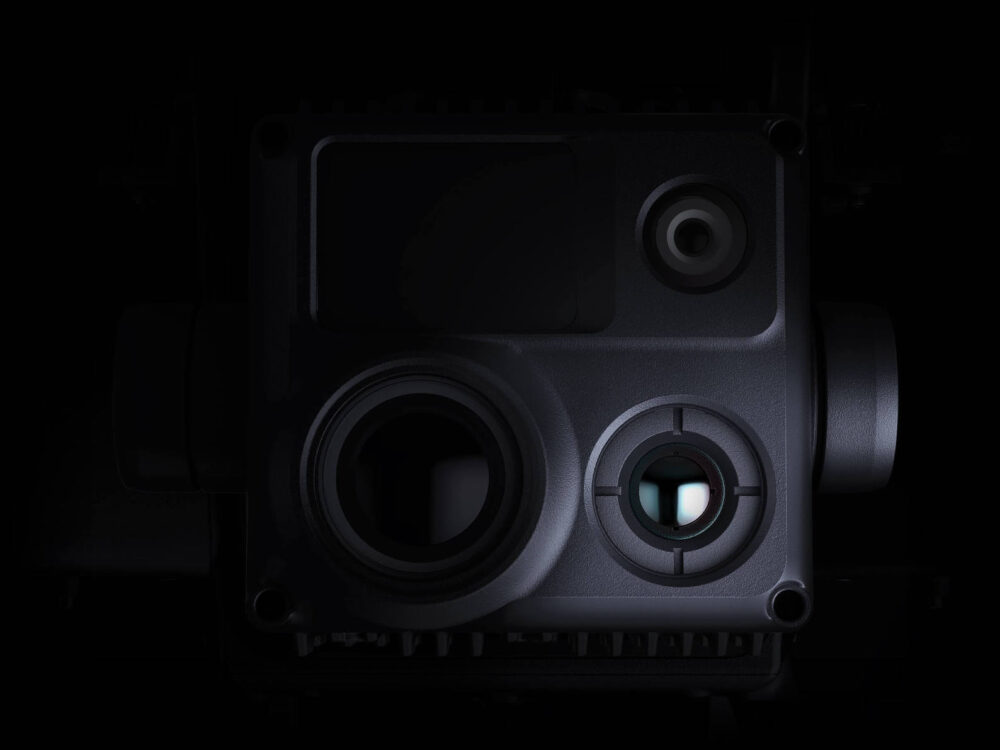

Thermal Imaging Camera
Equivalent Focal Length: 40 mm
Resolution: 640×512
Частота кадрів: 30 кадрів/с
Measurement Accuracy: ±2°C or ±2%[5]

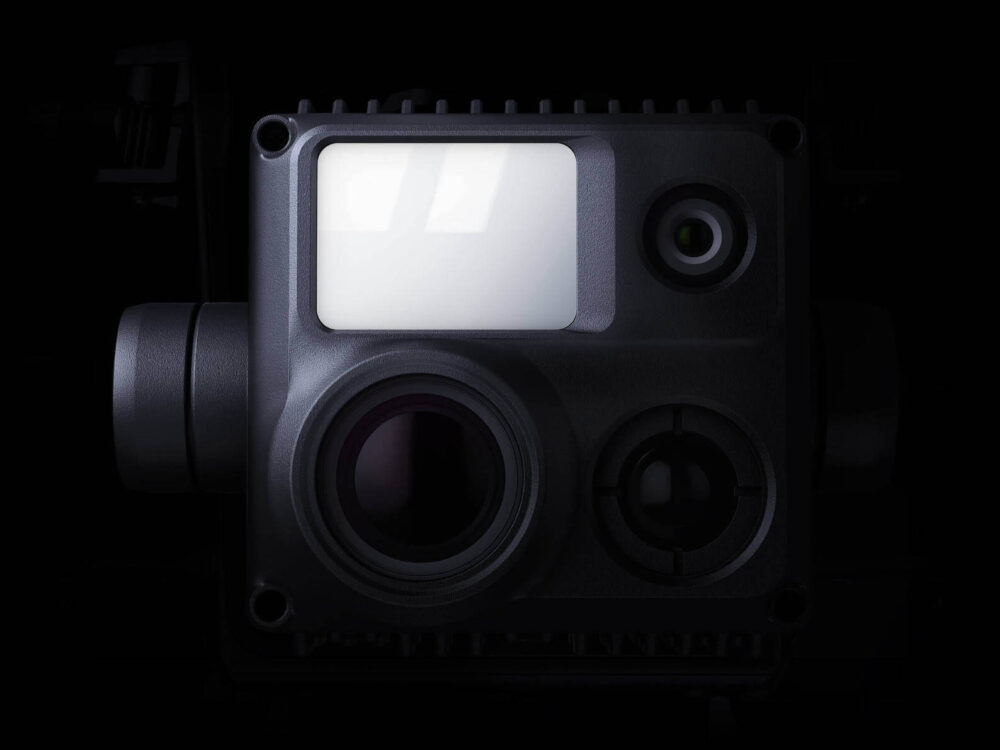

Laser Rangefinder
Range: 3 m – 1200 m
Accuracy: ±(0.2m+D×0.15%)[6]
Built For Commercial Drone Pilots

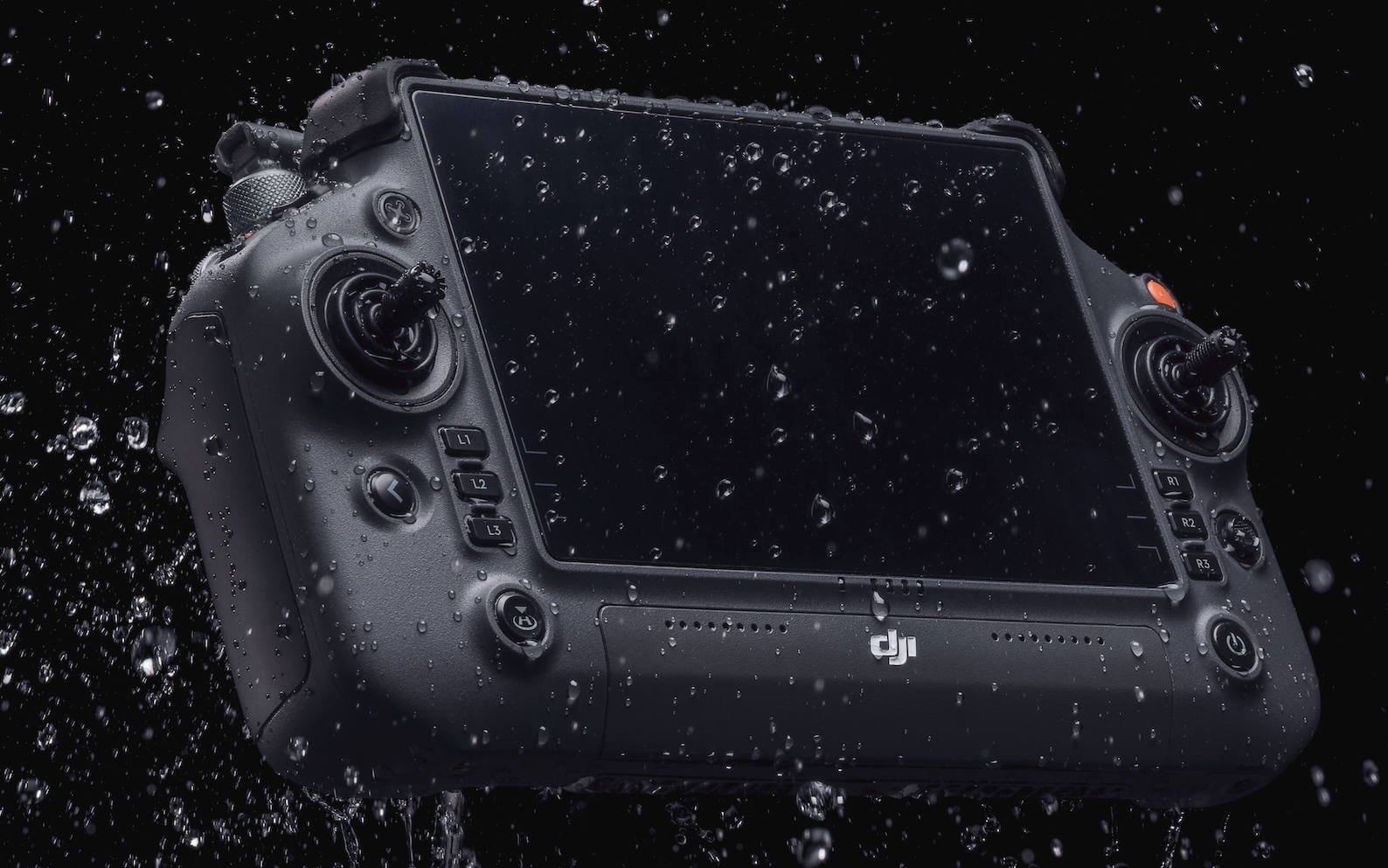

The 7-inch widescreen DJI RC Plus with dual control mode is tailor-made for Enterprise users.
The module is adapted to work with difficult environmental conditions, having an IP54 protection class, protection against water and dust, the ability to work at temperatures from -20°C to 50°C.
Improved Stability and Battery Life
Four Antenna OcuSync 3 Enterprise
Cover more area with stable video transmission and removable dual-antennas.

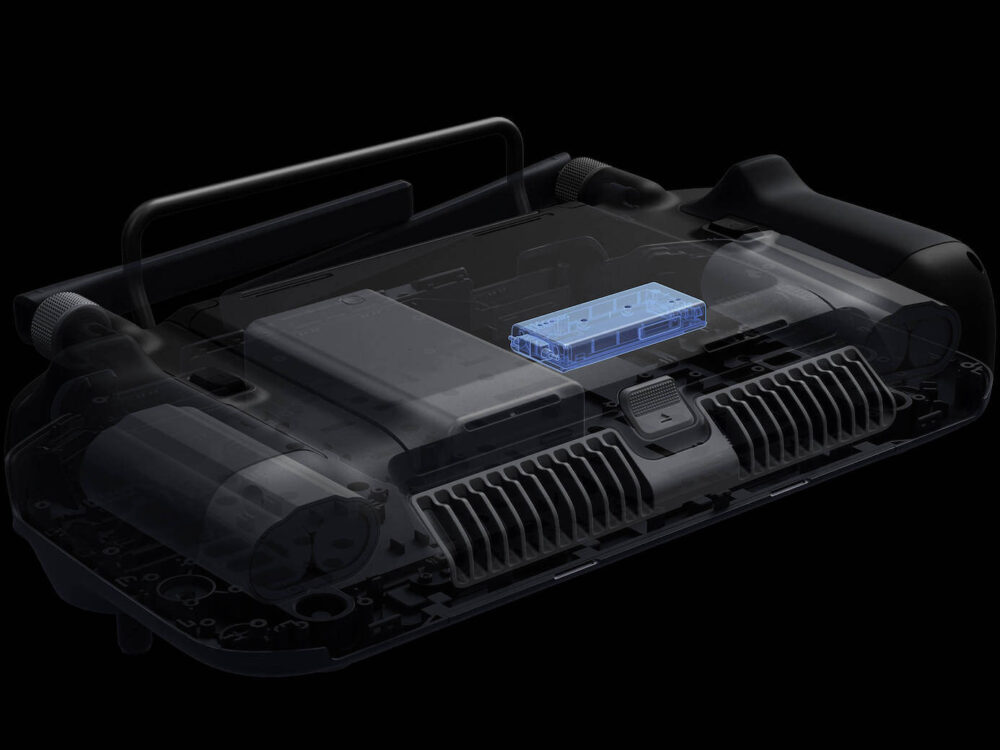

![DJI Mobile Communication Module[4]](https://crea-tor.com/wp-content/uploads/2025/06/m30t-cellural_modul-1000x750_.jpg)
DJI Cellular Module[4]
Attach a DJI Cellular Module for added 4G support to supplement OcuSync 3 Enterprise.
Extended Battery Life
Internal and external battery configuration powers 6 hours of battery life and enables hot-swapping for seamless, uninterrupted flight operations.

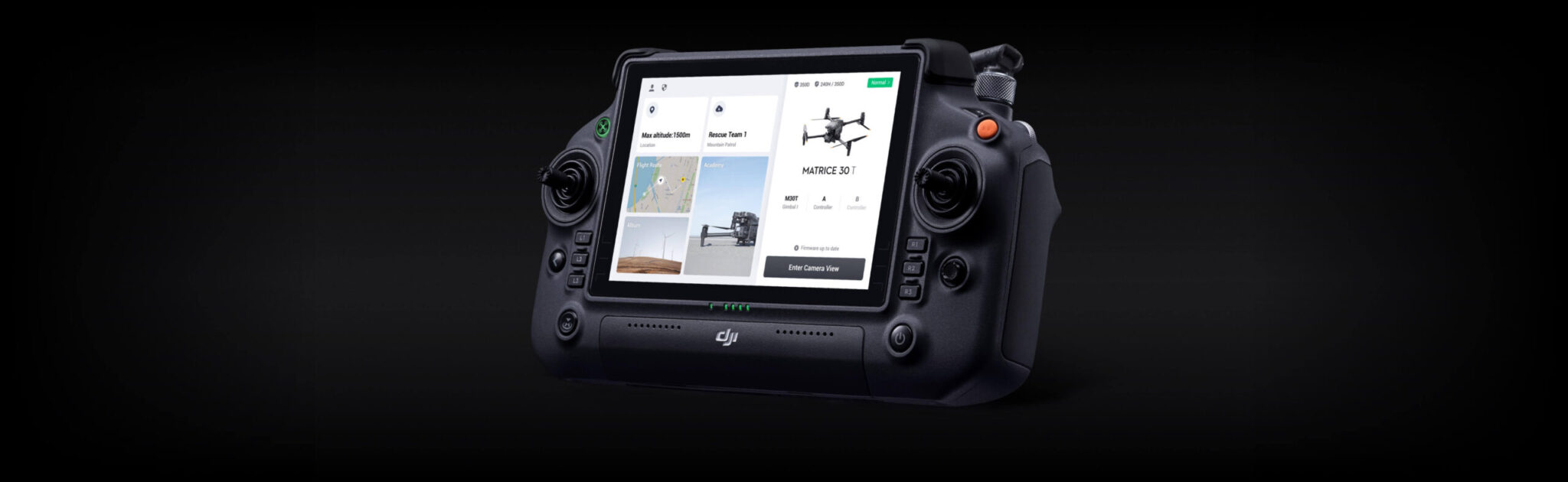

Introducing the All-new DJI Pilot 2
A revamped Enterprise flight interface designed to improve piloting efficiency and flight safety.
Pilot 2 works seamlessly with the DJI RC Plus. Screenside and customizable buttons are all within reach and enable quick operations, such as adjusting camera views and dropping PinPoints. Drone and payload controls can be easily accessed with one tap. Clear presentation of flight details and navigational information improves user experience and flight efficiency.
DJI FlightHub 2
FlightHub 2 offers a 2.5D Base Map for quick terrain awareness, One-Tap Panorama Sync for rapid site overviews, and Cloud Mapping for fast mapping in RGB or infrared. Synchronize valuable information such as teams position, drone status, mission details and more, in real time and across multiple device types, making team collaboration easier than ever.

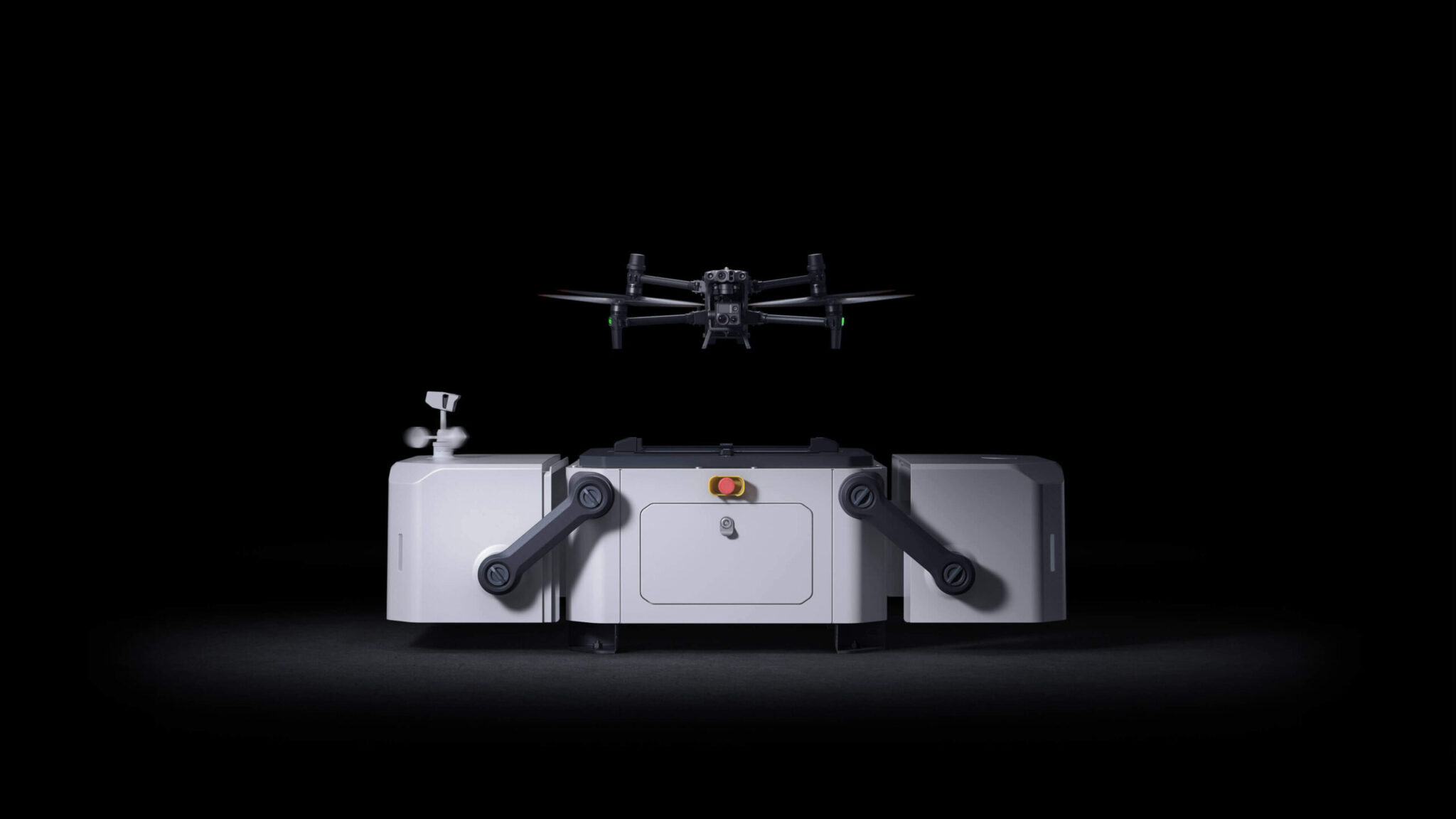

DJI Dock
The DJI Dock (M30 Series Dock Version) has flagship-level performance with a maximum operation range of 7 km8, IP55 weather resistance, and resilience in temperatures ranging from -35℃ to 50℃9.
1. Measured at 36 km/h uniform speed in a windless environment. Actual flight duration may vary depending on the environment, flight mode, and accessories.
2. Takeoff and landing can withstand wind speeds up to 12 m/s.
3. The service ceiling of 7000 m is achievable with high altitude propellers.
4. The DJI Cellular Dongle is currently only supported in Mainland China. Please contact your local dealer for details.
5. The maximum value is taken for both.
6. D refers to the vertical distance between the laser rangefinder and the reflective surface.
7. The Matrice 30 Series (Dock Version) has an additional integrated charging module. Please note that the M30 Series is not compatible with the DJI Dock and cannot be upgraded or modified to become a Dock Version.
8. Measured in clear environments without transmission or signal interference.
9. Based on 25℃ ambient temperature measurement. As ambient temperature increases, the battery cooling time will increase and the operating interval will be extended.
10. The TB30 can achieve up to 400 charge cycles within a 12-month period if it’s charged to 90% or higher for fewer than 120 days combined. Battery-related information can be viewed in the Health Management System on the DJI Pilot APP.
Додаткова інформація
| Dimensions (unfolded, excl. propellers) | 470×585×215 mm (L×W×H) |
|---|---|
| Dimensions (folded) | 365×215×195 mm (L×W×H) |
| Діагональна довжина | 668 mm |
| Weight (incl. two batteries) | 3770 ± 10 g |
| Максимальна злітна вага | 4000 g |
| Hovering Accuracy (windless or breezy) | Vertical: ±0.1 m (Vision System enabled); ±0.5 m (N-mode with GPS); ±0.1 m (RTK) |
| RTK Positioning Accuracy (fixed RTK enabled) | 1 cm+1 ppm (horizontal) |
| Максимальна кутова швидкість | Pitch: 150°/sec.; |
| Максимальний кут нахилу | 35° (N-mode and Forward Vision System enabled: 25°) |
| Max Ascent/Descent Speed | 6 m/s, 5 m/s |
| Max Tilt Descent Speed | 7 m/s |
| Max Horizontal Speed | 23 m/s |
| Max Service Ceiling Above Sea Level (without other payload) | 5,000 m (with 1671 propellers) 7,000 m (with 1676 propellers) |
| Опір максимальної швидкості вітру | 15 m/s 12 m/s during taking off and landing |
| Max Hover Time [2] | 36 min |
| Max Flight Time[2] | 41 min |
| Motor Model | 3511 |
| Propeller Model | 1671 / 1676 High Altitude (not included) |
| Діапазон кутових коливань | ±0,01° |
| Контрольований діапазон | Pan: ±90° |
| Механічний діапазон | Pan: ±105° |
| Датчик | 1/2" CMOS, Effective pixels: 12M |
| Thermal Imaging Camera | Uncooled VOx Microbolometer |
| Лінза | DFOV: 64° |
| Infrared TemperatureMeasurement Accuracy[4] | ±2°C or ±2% (using the larger value) |
| Роздільна здатність | 1920×1080 |
| DFOV | 161° |
| Frame Rate | 30 fps |
| Wavelength | 905 nm |
| Max Laser Power | 3.5 mW |
| Single Pulse Width | 6 ns |
| Measurement Accuracy | ± (0.2 m + D×0.15%) |
| Measuring Range | 3-1,200 m |
| Obstacle Sensing Range | 0.1 to 10 m |
| Поле зору | 30° |
| Операційне середовище | Large, diffuse, and reflective obstacles (reflectivity >10%) |
| Місткість | 5880 mAh |
| Напруга | 26.1 V |
| Тип батареї | LiPo 6S |
| Енергія | 131.6 Wh |
| Температура зберігання | 20° to 30° C (68° to 86° F) |
| Діапазон температур заряджання | -20° to 40° C (-4° to 104° F) |
| Хімічна система | LiNiMnCoO2 |
| Effective Illumination Distance | 5 m |
| Illumination Type | 60 Hz, solid glow |
| Screen | 7.02 inch LCD touchscreen, |
| Internal Battery | Type: Li-ion (6500 mAh @ 7.2 V) |
| External Battery(WB37 Intelligent Battery) | Capacity: 4920 mAh |
| Operating Time[5] | Internal Battery: Approx. 3 hours 18 min |
| ГНСС | GPS+Galileo+BeiDou |
| Максимальна відстань передачі (без перешкод, без перешкод) | 2.4000-2.4835 GHz: |
| Максимальна дальність передачі (з перешкодами) | Strong Interference (urban landscape, limited line of sight, many competing signals): 1.5-3 km (FCC/CE/SRRC/MIC) |
| Operation Frequency[1] | 2,4000–2,4835 ГГц |
| Протокол | Bluetooth 5.1 |
| Робоча частота | 2,4000–2,4835 ГГц |
| Потужність передавача (ЕІРП) | <10 дБм |
| Розміри | 353×267×148 mm |
| Net Weight | 3.95 kg |
| Compatible Battery Type | TB30 Intelligent Flight Battery |
| Вхід | 100-240 VAC, 50/60 Hz |
| Вихід | TB30 Battery Port: 26.1 V, 8.9 A |
| Output Power | 525 W |
| Порт USB-C | Max output power of 65 W |
| USB-A port | Max output power of 10 W (5 V, 2 A) |
| Power Consumption (when not charging battery) | < 8 W |
| Output Power (when warming up battery) | Approx. 30 W |
| Робоча температура | -20° to 40° C (-4° to 104° F) |
| Ingress Protection Rating[3] | IP55 (with the cover closed properly) |
| Charging Time[6] | Approx. 30 min (charging two TB30 batteries from 20% to 90%) |
| Protection Features | Anti-Backflow Protection |
| Footnotes | [1] 5.8 and 5.1GHz frequencies are prohibited in some countries. In some countries, the 5.1GHz frequency is only allowed for use indoors. [2] The maximum flight time and the hover time were tested in a lab environment and is for reference only. [3] This protection rating is not permanent and may reduce over time after long-term use. [4] Infrared temperature measurement accuracy was tested in a lab environment and is for reference only. [5] The maximum operating time was tested in a lab environment and is for reference only. [6] The charging time was tested in a lab environment at room temperature. The value provided should be used for reference only. |
