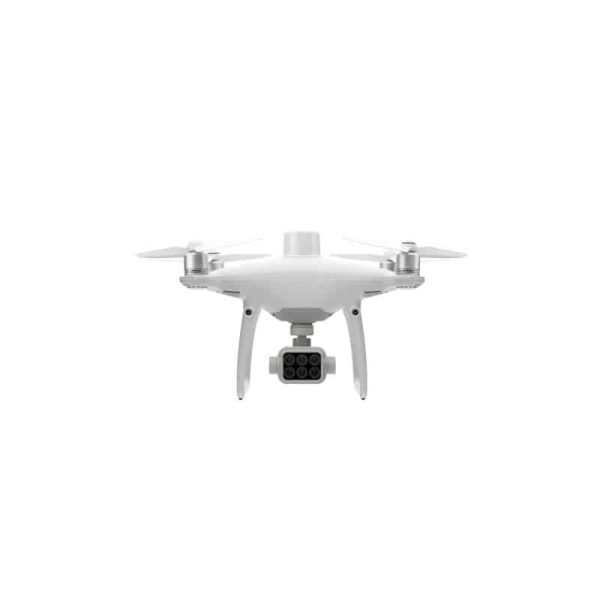

Мультиспектральний дрон DJI Phantom 4
The DJI Phantom 4 Multispectral (P4M) drone is a compact multispectral aerial photography tool. You can use it in agriculture, forestry and other areas where multispectral imaging is required.
Опис
Phantom 4 Multispectral
Plant Intelligence for Targeted Action
Gather precise plant-level data using the P4 Multispectral – a high-precision drone with a seamlessly integrated multispectral imaging system built for agriculture missions, environmental monitoring, and more.
Phantom 4 Multispectral
Plant Intelligence for Targeted Action
Gather precise plant-level data using the P4 Multispectral – a high-precision drone with a seamlessly integrated multispectral imaging system built for agriculture missions, environmental monitoring, and more.
Farm to Figures
The P4 Multispectral consolidates the process of capturing data that gives insight into crop health and vegetation management. DJI has created this platform with the same powerful performance standards that DJI is known for, including 27 minutes max flight time and up to 7 km transmission range with the OcuSync system.
See Beneath the Surface
Agriculture imagery collection is now simpler and more efficient than ever before with a built-in stabilized imaging system that collects comprehensive data sets right out of the box. Access information collected by 1 RGB camera and a multispectral camera array with 5 cameras covering Blue, Green, Red, Red Edge, and Near Infrared bands – all at 2 MP with global shutter, on a 3-axis stabilized gimbal.

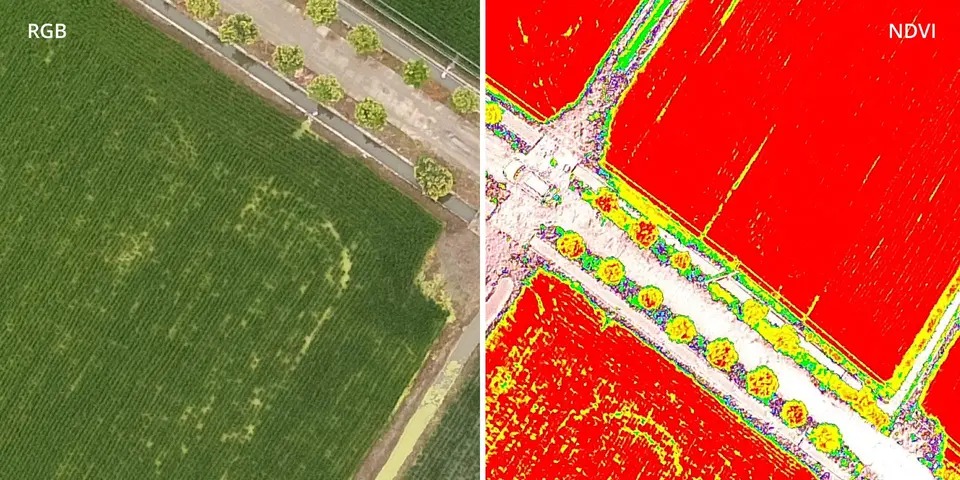

View Both RGB and NDVI Feeds
Simply having aerial imagery is not enough for ag professionals who want to know more. Switch between a preliminary Normalized Difference Vegetation Index (NDVI) analysis and the live RGB feed to immediately visualize where attention is needed, so targeted treatment decisions can be made quickly.
Centimeter-level Precision

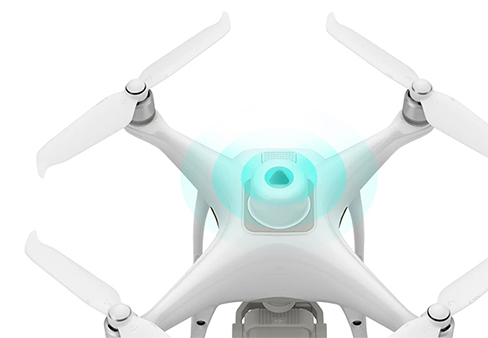

Get real-time, accurate positioning data on images captured by all six cameras with DJI’s TimeSync system, providing centimeter-level accurate measurements. The TimeSync system continually aligns the flight controller, RGB and NB cameras, and RTK module, fixing the positioning data to the center of the CMOS and ensuring each photo uses the most accurate metadata. All cameras go through a rigorous calibration process where radial and tangential lens distortions are measured. The distortion parameters gathered are saved into each image’s metadata, letting post-processing software adjust uniquely for every user.
Data Accuracy
Tight integration with the DJI Ground Station Pro flight planning app allows pilots to switch between the live view of the drone’s RGB video camera and NDVI (Normalized Difference Vegetation Index (NDVI)) output for instant information in the field . The Phantom 4 Multispectral can measure 6 indices: RGB, GNDVI, LCI, NDRE, NDVI, OSAVI.

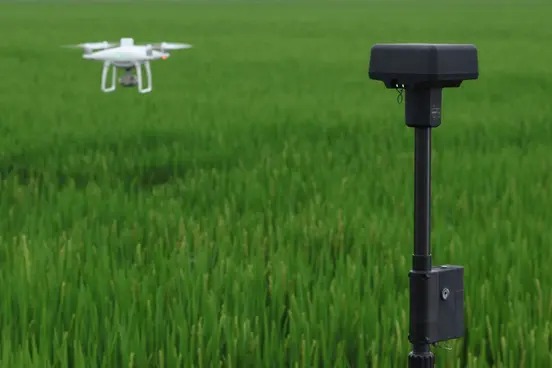

D-RTK 2 Mobile Station and NTRIP Compatibility
Enhance the accuracy of RTK positioning without internet connection by connecting the P4 Multispectral to the D-RTK 2 High Precision GNSS Mobile Station and NTRIP (Network Transport of RTCM via Internet Protocol), or store the satellite observation data to be used for Post Processed Kinematics (PPK).
The Beginning of Intelligent Agriculture Missions

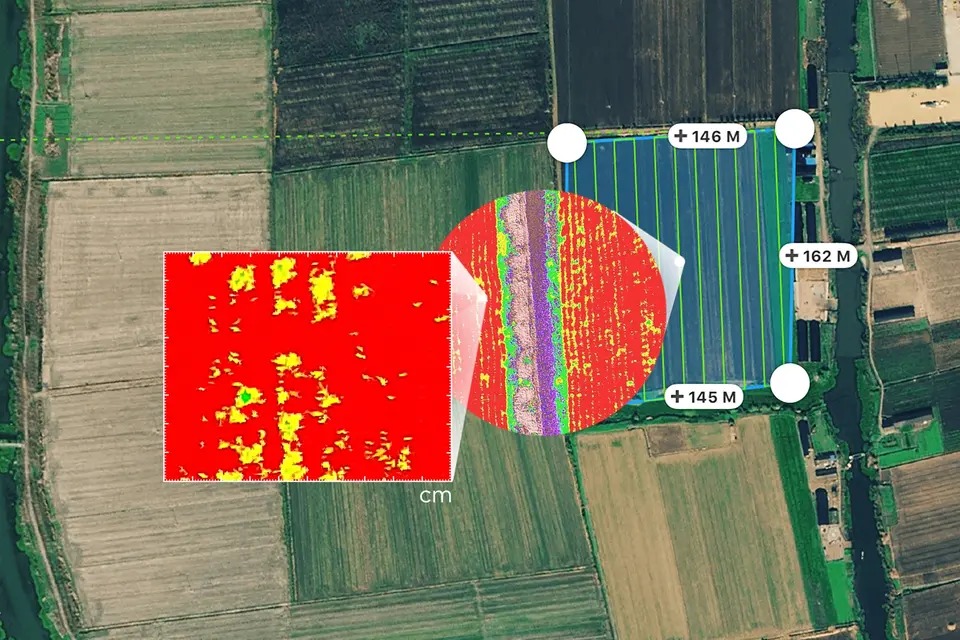

Plan Flights

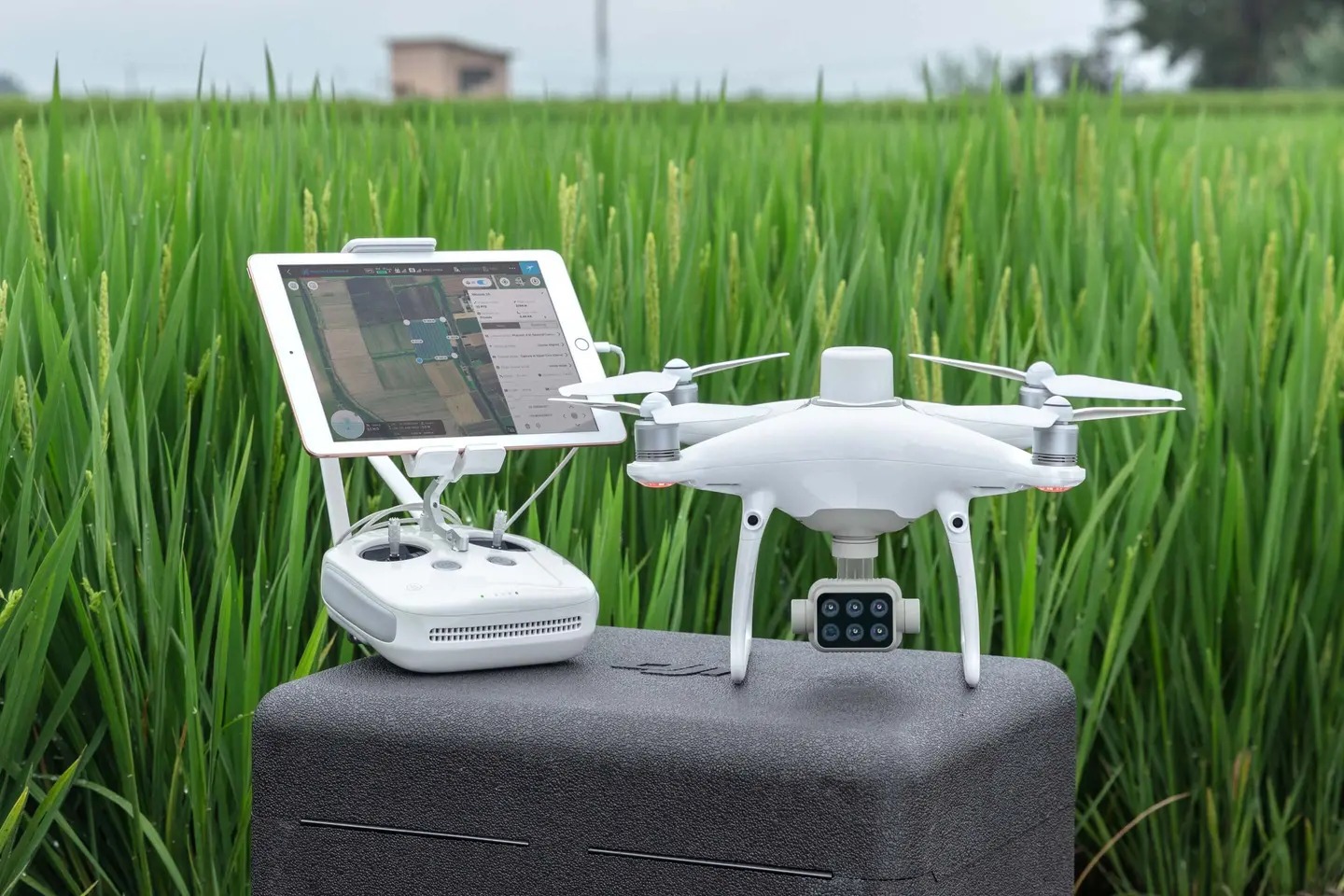

Plan flights, execute automated missions, and manage flight data using GS PRO – DJI’s leading flight planning iOS app*.
*Drone requires an iOS tablet. This drone will not work with other tablets and smartphones.
Capture Data

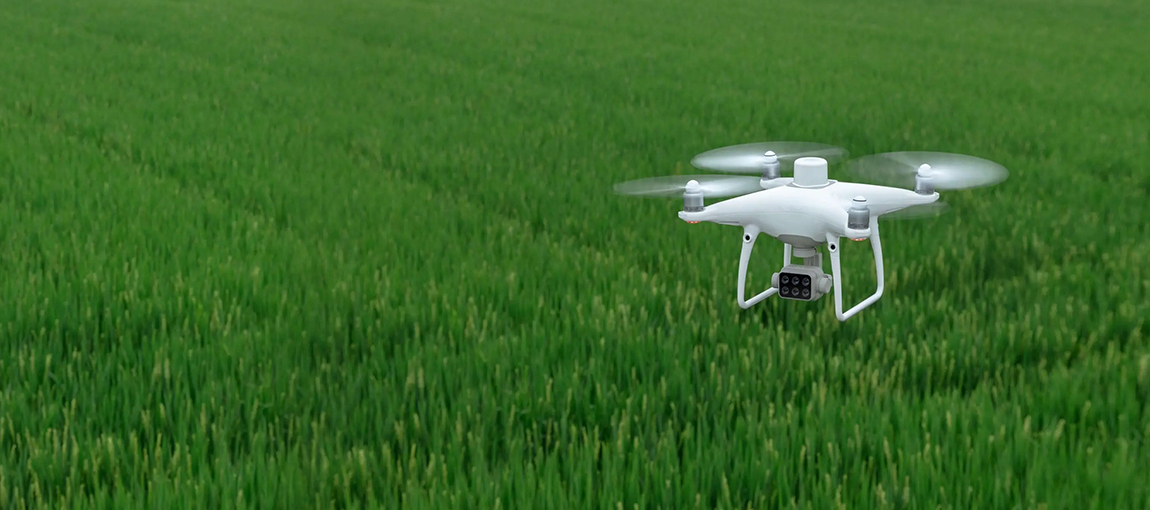

Collect multispectral images efficiently across a large area using the P4 Multispectral and gain an overview of problem areas.
Analyze Data
Easily access and process aerial data by applying plant-specific metrics and parameters to acquire the desired results on plant health.
Act on Data
Implement targeted treatments on areas that need attention based on accurate drone data.
Applications
Precision agriculture

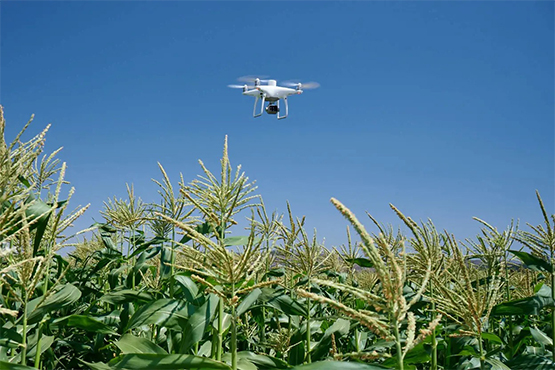

Throughout all growing seasons, multispectral imagery can be helpful to ag professionals by providing information invisible to the human eye across the electromagnetic spectrum. Having access to this data and the subsequently obtained Vegetation Index data such as NDRE and NDVI, farmers can make timely, informed decisions on crop treatment, lowering costs, saving resources, and maximizing yields.
Environmental monitoring and inspection
Routine inspections and maintenance involving plants can be made smarter and more efficient when using the P4 Multispectral – leverage its actionable multispectral insights to monitor forest health, measure biomass, map shorelines, or manage riparian vegetation while protecting habitats or ecosystems, and much more.
Додаткова інформація
| Злітна вага | 1487 g |
|---|---|
| Diagonal Distance (Propellers Excluded) | 350 mm |
| Максимальна стеля обслуговування над рівнем моря | 19685 ft (6000 m) |
| Максимальна швидкість підйому | 6 m/s (automatic flight); 5 m/s (manual control) |
| Максимальна швидкість спуску | 3 m/s |
| Максимальний час польоту | Approx. 27 minutes |
| Діапазон точності зависання | RTK enabled and functioning properly: Vertical: ± 0.1 m; Horizontal: ± 0.1 m RTK disabled: Vertical: ± 0.1 m (with vision positioning); ± 0.5 m (with GNSS positioning) Horizontal: ± 0.3 m (with vision positioning); ± 1.5 m (with GNSS positioning) |
| Image Position Compensation | The relative positions of the centers of the six cameras’ CMOS and the phase center of the onboard D-RTK antenna have been calibrated and are recorded in the EXIF data of each image. |
| Single-Frequency High-Sensitivity GNSS | GPS + BeiDou + Galileo (Asia); GPS + GLONASS + Galileo (other regions) |
| Multi-Frequency Multi-System High-Precision RTK GNSS | Frequency Used GPS: L1/L2; GLONASS: L1/L2; BeiDou: B1/B2; Galileo[2]: E1/E5 First-Fixed Time: < 50 s Positioning Accuracy: Vertical 1.5 cm + 1 ppm (RMS); Horizontal 1 cm + 1 ppm (RMS). 1 ppm indicates error with a 1 mm increase over 1 km of movement. Velocity Accuracy: 0.03 m/s |
| Ground Sample Distance (GSD) | (H/18.9) cm/pixel, H indicates the aircraft altitude relative to the area mapped (unit: m) |
| Rate of Data Collection | Max operating area of approx. 0.63 km2 for a single flight at an altitude of 180 m, i.e., GSD is approx. 9.52 cm/pixel, with a forward overlap rate of 80% and a side overlap ratio of 60%, during a flight that drains the battery from 100% to 30%. |
| Контрольований діапазон | Tilt: -90° to +30° |
| Максимальна швидкість | ≤ 31 mph (50 kph) at 6.6 ft (2 m) above ground with adequate lighting |
| Max Altitude | 0–10 m |
| Operating Range | 0–10 m |
| Obstacle Sensing Range | 0,7–30 m |
| Операційне середовище | Surfaces with clear patterns and adequate lighting > 15 lux |
| Sensors | Six 1/2.9” CMOS, including one RGB sensor for visible light imaging and five monochrome sensors for multispectral imaging. Each Sensor: Effective pixels 2.08 MP (2.12 MP in total) |
| Filters: | Blue (B): 450 nm ± 16 nm; Green (G): 560 nm ± 16 nm; Red (R): 650 nm ± 16 nm; Red edge (RE): 730 nm ± 16 nm; Near-infrared (NIR): 840 nm ± 26 nm |
| Lenses | FOV (Field of View): 62.7° Focal Length: 5.74 mm (35 mm format equivalent: 40 mm), autofocus set at ∞ Aperture: f/2.2 |
| RGB Sensor ISO Range | 200–800 |
| Monochrome Sensor Gain | 1–8x |
| Electronic Global Shutter | 1/100 – 1/20000 s (visible light imaging); 1/100 – 1/10000 s (multispectral imaging) |
| Максимальний розмір зображення | 1600×1300 (4:3,25) |
| Формат фотографії | JPEG (visible light imaging) + TIFF (multispectral imaging) |
| Підтримувана файлова система | FAT32 (≤ 32 GB); exFAT (> 32 GB) |
| Типи карт пам'яті | microSD with a minimum write speed of 15 MB/s. Max Capacity: 128 GB. Class 10 or UHS-1 rating required. |
| Частота роботи | 2.4000 GHz to 2.4835 GHz (Europe, Japan, Korea) |
| Потужність передавача (ЕІРП) | < 20 dBm (CE / MIC / KCC) |
| Max Transmission Distance | FCC / NCC: 4.3 mi (7 km) CE / MIC / KCC / SRRC: 3.1 mi (5 km)(Unobstructed, free of interference) |
| Signal Transmission System | OcuSync |
| Built-in Battery | 6000 mAh LiPo 2S |
| Робочий струм / напруга | 1.2 A @ 7.4 V |
| Mobile Device Holder | Tablets and smartphones |
| Час роботи | ~ 6 hours without recharging |
| Місткість | 5870 mAh |
| Тип | Літій-іонний 4S |
| Енергія | 89,2 Wh |
| Net Weight | 468 g |
| Температура заряджання | +5°…+40°C |
| Max charging power | 160 W |
| Робоча температура | +5°…+40°C |
| Напруга | 17,4 V |
| Номінальна потужність | 160 W |
