Дрон BetaFPV Cetus X Racing
A great option for beginners to help get an advanced level. The Cetus X brushless drone boasts lightning speed and fast launch thanks to a more powerful propulsion system.
Опис
Дрон BetaFPV Cetus X Racing

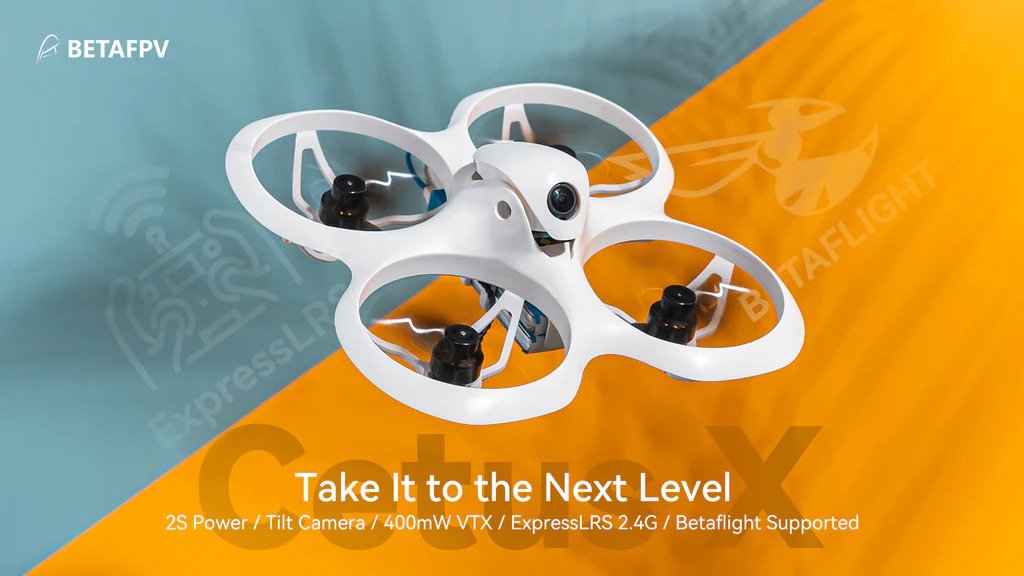

BetaFPV Cetus X Racing Drone – The Cetus X Brushless Quadcopter is a 2S powerful drone that is the main choice for beginners who want advanced flying skills. It is equipped with a more powerful power plant for a faster and more dynamic flight, capable of performing various tricks. Equipped with 400mW M04 video transmitter and C04 FPV camera optimized for longer radio and video transmission. Meanwhile, it supports Betaflight Configurator, which is a popular RC drone customization app.
Drone Cetus X
A great option for beginners to help get an advanced level. The Cetus X brushless drone boasts lightning speed and fast launch thanks to a more powerful propulsion system.
Built-in ExpressLRS 2.4G receiver, which is the most popular radio, low latency and long range control. Pilots can not only enjoy flying indoors, but also explore the outdoor scenery.

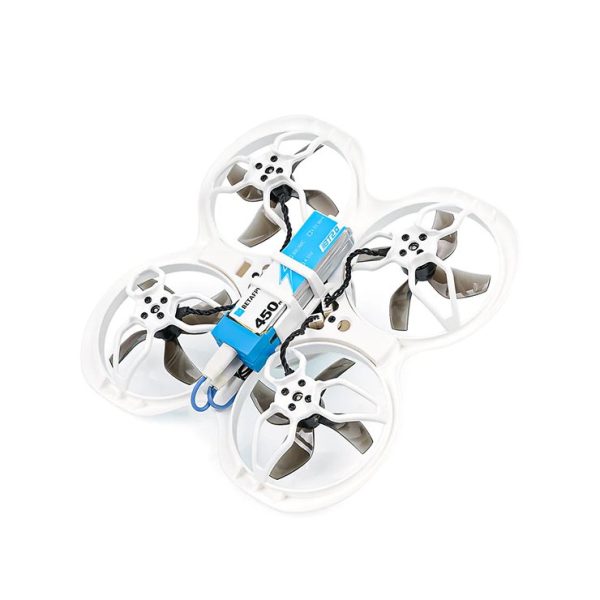

Cetus X brushless quadcopter is equipped with M04 400mW video transmitter, C04 FPV camera (based on Caddx Nano Ant Camera or Runcam Nano 4) and two 450mAh 1S 30C BT2.0 batteries for longer radio and video transmission and longer flight time . The Cetus X brushless quadcopter allows beginners to get more achievement in FPV flight.
Knowing how to fly a drone is the first step to becoming a drone master, and the next step is setting it up. With support for the Betaflight configurator, beginners can learn how to set up a flight controller, which is an important way to gain experience with a drone.

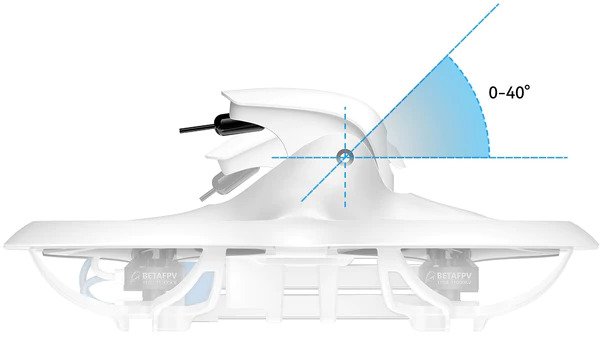

Classic white design inherited from the Cetus series and made of PA12 material, the Cetus X frame has excellent drop and impact resistance. 360° frame protection ensures safe flying both indoors and outdoors. Meanwhile, the FPV camera supports adjustable degrees from 0° to 40°, providing different views for pilots.

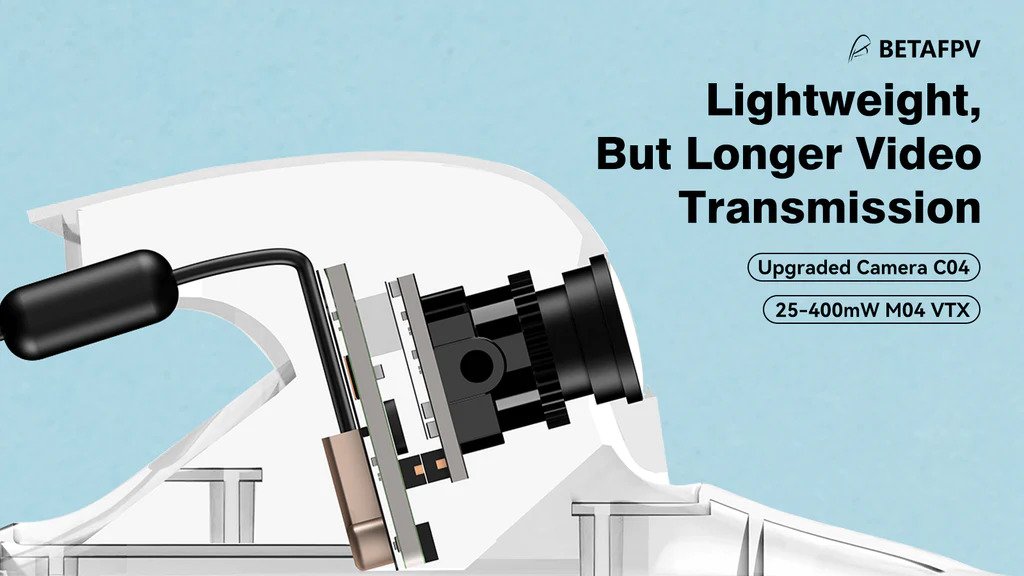

Improved Video Transmission
Cetus X comes with M04 25-400mW VTX and C04 FPV camera. Both VTX features a lightweight and adjustable output power for longer distance flying. Combining this VTX and the excellent radio link ExpressLRS 2.4G, pilots can fly whoop drones longer to explore more possibilities and have fun. In addition, C04 FPV camera (based on Caddx Nano Ant Camera/Runcam Nano 4) shows better quality in FPV flight compared with C02 FPV camera.

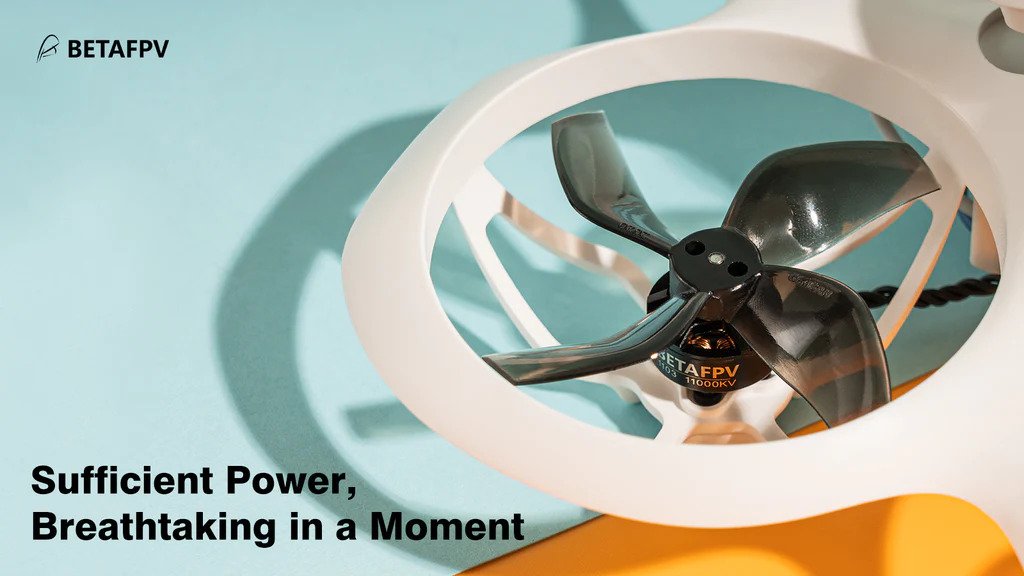

Powerful Propulsion System
Equipped with 1103 11000KV Brushless Motor and Gemfan 2020 4-blade props, Cetus X Brushless Quadcopter delivers powerful propulsion, making it a 2S power whoop drone with some real punch to it. Besides, the whole quadcopter is light and durable enough, offering pilots a high-efficiency flight experience.

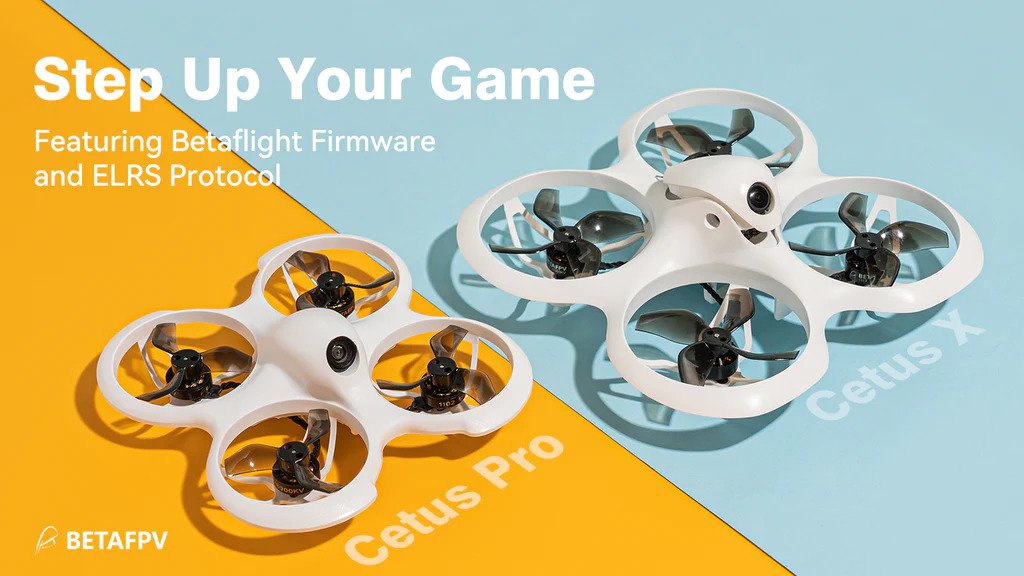

The main choice for the next level
The Cetus X Brushless Qaducopter Betaflight FC version supports configuration in the Betaflight configurator. This is the main choice for beginners who are starting to learn how to set up drones, which helps beginners get an advanced level. With the Betaflight configurator, you can calibrate the accelerometer, custom OSD content, set up a video transmitter, and more.
Note: Please DO NOT change the ESC or Motor settings in the Betaflight configurator.
F4 1S 12A FC V2.2
The F4 1S 12A FC V2.2 board is used for the first time on the Cetus X BNF drone. Below is the specification of F4 1S 12A FC (ELRS) V2.2.
- Processor: STM32F411CEU6 (100MHz)
- Six axes: BMI270 (SPI connection)
- Firmware version: betaflight_4.3.1_BETAFPVF4SX1280
- OSD: Embedded BetaFlight OSD (STM32 controls OSD chip via SPI in DMA mode)
- Receiver: SPI ELRS 2.4G
- Motor pin connector: 1.25mm pins
- Mounting hole size: 26mm x 26mm (Suitable for scream-shaped mounting hole)
- USB port: SH1.0 4 pin
- Built-in ESC with 12A constant current and 25A peak current
- ESC input voltage: 1S-2S
- Firmware ESC: C_X_30_REV16_7_20220802.hex for BB51 BLHeli_S equipment
- Signal support: D-shot150, D-shot300, D-shot600, Oneshot125, Multishot, PWM
As you know, the yaw axis sometimes does not work on the ICM20689 gyro. Listening to feedback from pilots, working with a developer on Betaflight, contacting FAE via TDK. But the issue has not yet been resolved. Therefore, we are updating the gyroscope to BOSH BMI270 starting from version V2.2. In addition, all Betaflight FC boards will upgrade the gyro to BOSH BMI270 or TDK ICM42688.
Please note, ONLY the latest Betaflight 4.3.1 firmware starts supporting the BMI270 or ICM42688 gyro. Please follow the link below to download the firmware.
Download firmware for flight controller
betaflight_4.3.1_BETAFPVF4SX1280.hex
BLHeli_S firmware can now support BB51 hardware. This V2.2 board is powered by BB51 equipment. If you want to change ESC settings, please update it to the latest version BLHeliSuite-16714902a first.
Download the latest BLHeliSuite-16714902a here.
Download Firmware BB51 ESC
C_X_30_REV16_7_20220802.hex
Додаткова інформація
| Вага | 55 g |
|---|---|
| Колісна база | 95 mm |
| Motors | 1103 11000KV |
| Пропелери | Gemfan 2020 4-Blades Props |
| Camera | C04 FPV Camera (Caddx Nano Ant Camera/Runcam Nano 4) |
| Camera Adjustable Angle | 0° – 40° |
| Receiver protocol | Frsky D8 |
| VTX | M04 25-400mW |
| Акумулятор | BT2.0 450mAh 1S 30C Battery x 2 |
| Flight time | ~5 mins |
| Signal Support | D-shot150, D- shot300, D-shot600, Oneshot125, Multishot, PWM |
| Flight controller | F4 1S 12A FC V2.2 (ELRS 2.4G) |
