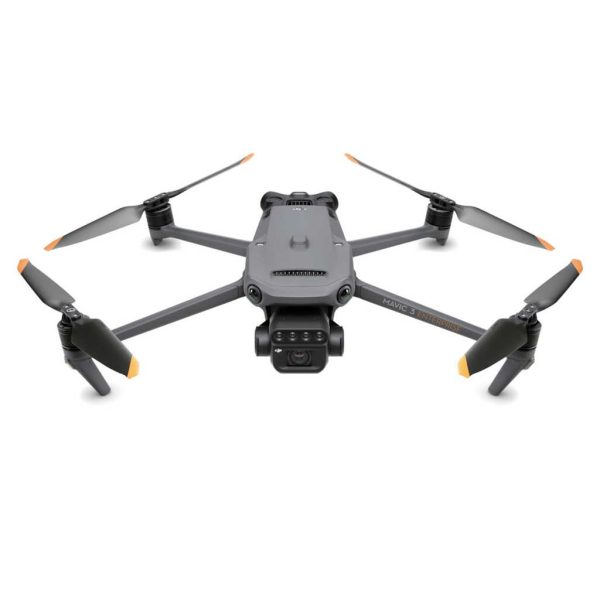

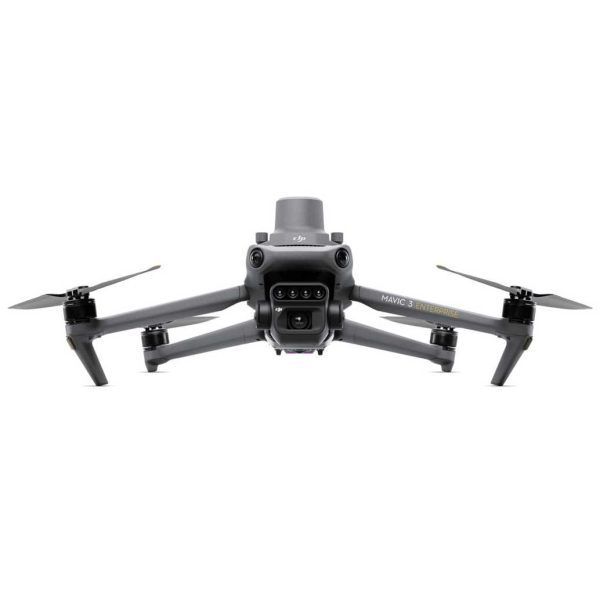

Drone DJI Mavic 3 Multispectral

В наявності

DJI Mavic 3 Multispectral (Mavic 3M) is a special version of the compact drone of the Mavic 3 series, equipped with a hybrid camera consisting of two modules. The visual module has a 4/3 CMOS matrix with a resolution of 20 megapixels. The second module is a 4 × 5 MP G/R/RE/NIR multispectral camera. To ensure high positioning accuracy, the aircraft is also equipped with an RTK module on the upper plane.

Compatible programs

DJI Terra
DJI SmartFarm

Опис
Додаткова інформація

Опис

DJI MAVIC 3 MULTISPECTRAL

See More, Work Smarter

Effective aerial surveying needs to see the invisible. That’s why Mavic 3 Multispectral has two forms of sight. It combines an RGB camera with a multispectral camera to scan and analyze crop growth with total clarity. Agricultural production management requires precision and data, and Mavic 3M delivers both.

Compact and portable

Foldable for easy storage

Safe and stable

Omnidirectional Obstacle Avoidance [1]

Max 15km Transmission Distance [2]

Multispectral Camera

4 × 5MP
G/R/RE/NIR

Compact and portable

Centimeter-level RTK positioning

Microsecond-level time synchronization

RGB camera

20 MP
4/3 CMOS, mechanical shutter

Efficient aerial surveying

Up to 200 hectares per flight [3]

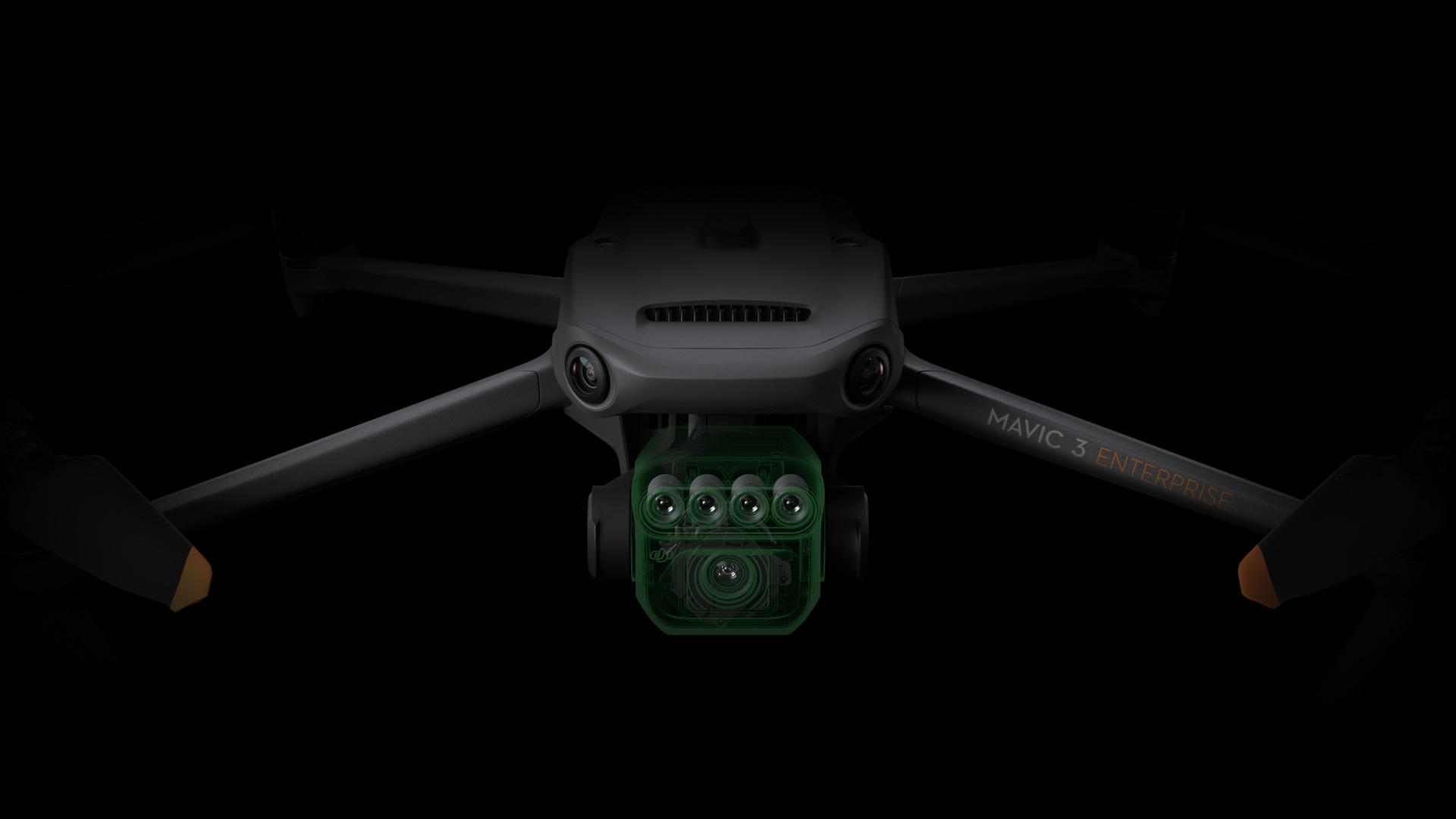

Highly integrated imaging system

The Mavic 3M Hybrid Camera is equipped with an integrated image processing system. It includes multispectral and RGB processing. Newly upgraded imaging system with one 20MP RGB camera and four 5MP multispectral cameras (green, red, red edge, and near infrared). Enables applications such as high-precision aerial surveying, crop growth monitoring, and natural resource surveys.

Highly integrated imaging system

5 MP Multispectral Camera

Near-infrared (NIR) 860 nm ± 26 nm
Red edge (RE) 730 nm ± 16 nm
Red (R) 650 nm ± 16 nm
Green (G) 560 nm ± 16 nm

RGB camera characteristics

4/3 CMOS, 20MP image sensor
Fastest mechanical shutter speed 1/2000s
High-speed burst when RGB camera is used 0.7s

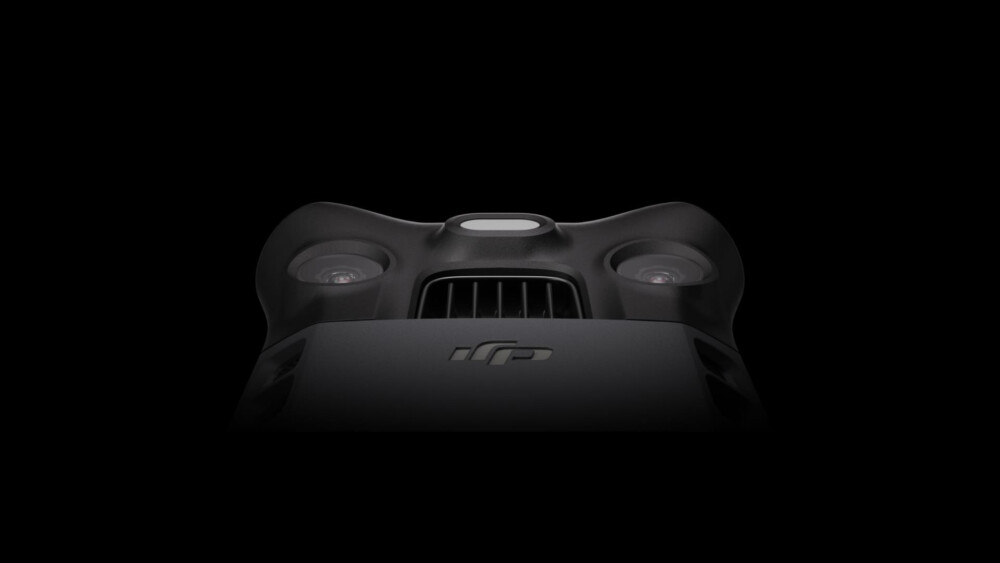

Sunlight Sensor

The built-in sunlight sensor captures solar irradiance and records it in an image file, allowing for light compensation of image data during 2D reconstruction. This results in more accurate NDVI results, as well as improved accuracy and consistency of data acquired over time.

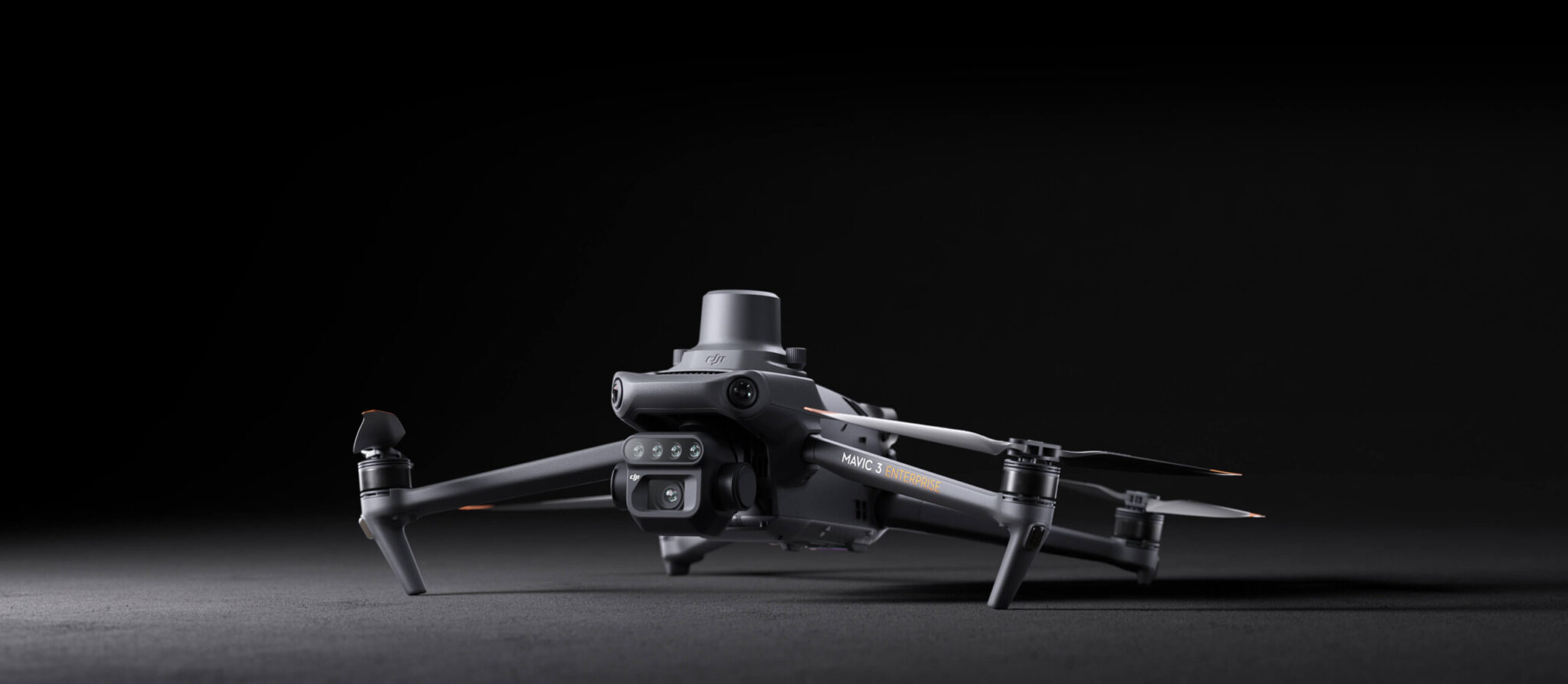

RTK MODULE ACCURATE IMAGES THAT CAPTURE EVERY PIXEL

Mavic 3M with RTK module for centimeter-level positioning. Flight control, the camera, and the RTK module sync in microseconds to accurately capture the location of each camera’s imaging center. This enables Mavic 3M to do high-precision aerial surveying without using ground control points.

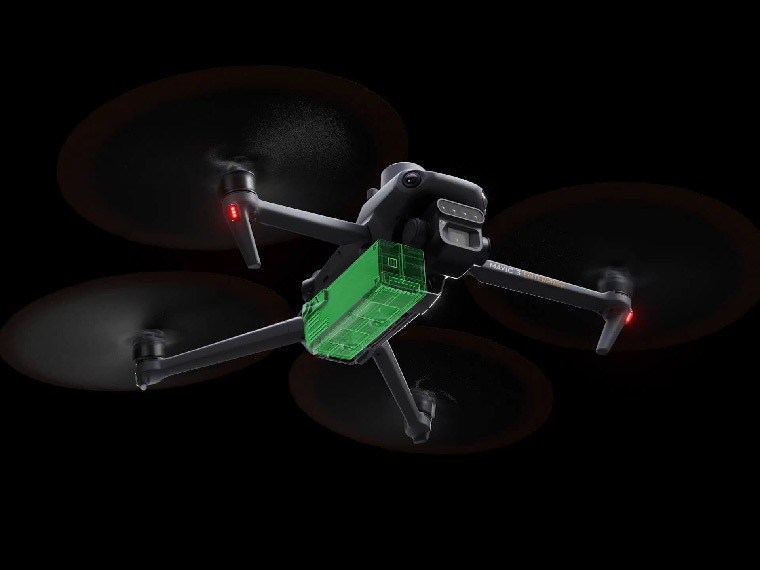

Efficient and reliable battery life

Ultra-long battery life, fast bursts
Cruise time 43 minutes [4]
A single flight can complete mapping operations over an area of 200 hectares [3]

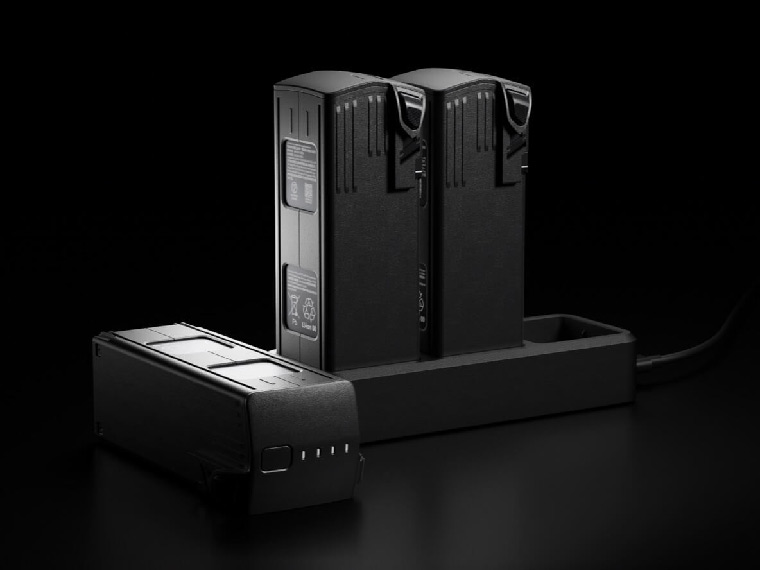

Fast charging

100W Battery Charging Hub
High-efficiency fast charging
88W fast charging

O3 Transmission System

The O3 transmission integrates two transmitting signals and four receiving signals.
Supports up to 15km ultra-long transmission distances.
Stable signal, smooth image transmission

Omnidirectional obstacle sensing [1], terrain-follow aerial surveying

The aircraft features multiple wide-FOV vision sensors that accurately detect obstacles in all directions for omnidirectional obstacle avoidance. The terrain-follow aerial surveying can be easily performed in steep-slope landscapes.

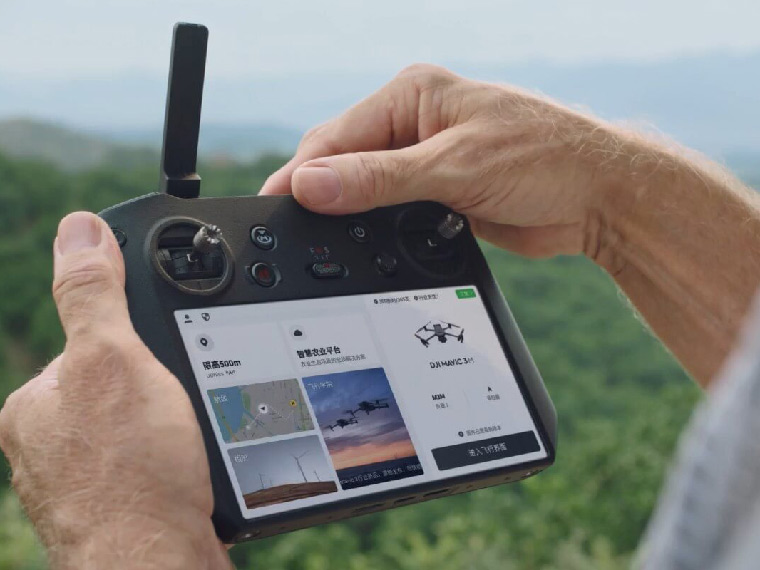

DJI Terra / DJI SmartFarm Platform [6] for Mapping and Smart Agriculture

Mavic 3M allows terrain-follow aerial surveying of orchards, even on sloped landscapes. Together with DJI Terra or DJI SmartFarm Platform [6] to reconstruct high-resolution orchard maps, automatically identify the number of trees, distinguish trees from other obstacles or objects, and generate three-dimensional operation routes for agricultural drones, making operations safer and more efficient.

DJI SmartFarm Platform

For rice fertilization, cotton growth regulation, and potato foliar fertilizer spraying, the Mavic 3M is used to obtain multi-spectral images of crops. DJI Terra or the DJI SmartFarm Platform [6] can then generate NDVI and other vegetation indices maps, capturing differences in crop potential and generating prescription maps that allow agricultural drones to execute variable-rate application. This ultimately allows users to reduce costs, increase yield, and protect the environment.

1. DO NOT fly in severe weather conditions, such as in strong winds (wind speeds of 12 m/s or more), snow, rain, or lightning.

DO NOT fly in areas that are 6,000 meters or higher above sea level.

DO NOT fly the aircraft in environments where the temperature is below -10° C (14° F) or above 40° C (104° F). DO NOT take off from moving objects, such as cars and ships.

DO NOT fly close to reflective surfaces, such as water or snow. Otherwise, the vision positioning system may not work properly.

When the GNSS signal is weak, fly the aircraft in environments with good lighting and visibility. The vision system may not work properly in poor light conditions.

Be aware of flight safety when flying near sources of electromagnetic interference. Common sources of electromagnetic interference include high-voltage power lines, high-voltage transmission stations, radar stations, cell phone base stations, broadcast towers, Wi-Fi hotspots, routers, and Bluetooth devices.

2. The 15km transmission distance can only be achieved under the FCC standard when measured in an outdoor environment without interference. The SRRC standard is adopted in mainland China, and the furthest transmission distance is 8 km. The above data are the furthest communication distances for one-way, non-return flights under each standard. During flight, pay attention to RTH reminders in the DJI Pilot 2 App.

3. Specific test conditions: In a sunny environment without wind, the orthographic flight aerial photography is obtained with a flight speed of 15 m/s, a flight altitude of 217 m, a ground sampling distance (GSD) of 5.73 cm for visible and 10 cm for multispectral, a fore-and-aft overlap rate of 70%, and a side overlap rate of 60%.

4. Data was measured using a DJI Mavic 3M flying at a constant speed of 36 kph at sea level in a windless environment until 0% power remained. Data is for reference only. Please pay attention to RTH prompts in the DJI Pilot 2 app when flying.

5. Optional accessories. This service is not available in some countries. Please consult your local distributor for details. Do not install the DJI Cellular module when using a multispectral camera to capture data, in order to avoid blocking the intensity sensor.

6. The DJI Smart Agricultural Platform will be supported in Q2 of 2023. This service is not available in some countries. Please consult your local distributor for details. Do not install the DJI Cellular module when using a multispectral camera to capture data, in order to avoid blocking the intensity sensor.

Додаткова інформація

Net Weight (with propellers and RTK module) [1]	951 g
Максимальна злітна вага	1050 g
Розміри (складені/розкладені)	Folded (without propellers): 223×96.3×122.2 mm (Length×Width×Height) Unfolded (without propellers): 347.5×283×139.6 mm (Length×Width×Height)
Діагональна довжина	380,1 мм
Максимальна швидкість підйому	6 m/s (Normal Mode) 8 m/s (Sport Mode)
Максимальна швидкість спуску	6 m/s (Normal Mode) 6 m/s (Sport Mode)
Max Speed (at sea level, no wind) [2]	15 m/s (Normal Mode) Flying forward: 21 m/s, flying sideways: 20 m/s, flying backwards: 19 m/s (Sport mode) [2]
Опір максимальної швидкості вітру	12 m/s [3]
Max Take-off Altitude Above Sea Level	6000 m (without a payload)
Max Flight Time (without wind)	43 minutes [4]
Max Hover Time (without wind)	37 minutes [4]
Максимальна дальність польоту	32 km [6]
Максимальний кут нахилу	30° (Normal Mode) 35° (Sport Mode)
Максимальна кутова швидкість	200°/с
Діапазон точності зависання	Вертикальний: Vertical: ±0.1 m (Vision Positioning enabled); ±0.5 m (GNSS Positioning enabled); ±0.1 m (D-RTK enabled) Горизонтальний: Horizontal: ±0.3 m (Vision Positioning enabled); ±0.5 m (HD Positioning enabled); ±0,1 м (RTK увімкнено)
Внутрішня пам'ять	Немає даних
Motor Model Number	2008
Propeller Model Number	9453F Enterprise Edition
Light Sensor	Built-in module
Діапазон ISO	100–6400
Підтримувана файлова система	exFAT
Датчик	1/2.8-inch CMOS, effective pixels: 5 MP
Лінза	FOV: 73.91° (61.2° x 48.10°) Equivalent focal length: 25 mm Aperture: f/2.0 Focus: Fixed Focus
Multispectral Camera Band	Green (G): 560 ± 16 nm; Red (R): 650 ± 16 nm; Red Edge (RE): 730 ± 16 nm; Near infrared (NIR): 860 ± 26 nm;
Gain Range	1x-32x
Витримка	Electronic Shutter: 1/30~1/12800 s
Максимальний розмір зображення	2592×1944
Image Format	TIFF
Формат відео	MP4 (MPEG-4 AVC/H.264)
Режим фотозйомки	Single shot: 5 MP Timelapse: 5 MP TIFF: 2/3/5/7/10/15/20/30/60 s
Роздільна здатність відео	H.264 FHD: 1920 x 1080@30fps Video content: NDVI/GNDVI/NDRE
Максимальний бітрейт відео	Stream: 60 Mbps
Supported microSD Cards	Drone: Please use a memory card with a speed rating of V30 or higher, or use a memory card from the recommended list
Рекомендовані карти microSD	Пульт дистанційного керування: Карта пам'яті SanDisk Extreme PRO 64 ГБ V30 A2 microSDXC Карта пам'яті SanDisk High Endurance 64 ГБ V30 microSDXC Карта пам'яті SanDisk Extreme 128 ГБ V30 A2 microSDXC Карта пам'яті SanDisk Extreme 256 ГБ V30 A2 microSDXC Карта пам'яті SanDisk Extreme 512 ГБ V30 A2 microSDXC Lexar 667x 64 ГБ V30 A2 microSDXC Картка пам'яті Lexar High-Endurance V30 microSDXC 64 ГБ Картка пам'яті Lexar High-Endurance V30 microSDXC 128 ГБ Lexar 667x 256 ГБ V30 A2 microSDXC Lexar 667x V30, 512 ГБ V30 microSDXC Samsung EVO Plus 64 GB V30 microSDXC Samsung EVO Plus 128 ГБ V30 microSDXC Samsung EVO Plus 256 ГБ V30 microSDXC Samsung EVO Plus 512 GB V30 microSDXC Kingston Canvas Go! Plus 128 GB V30 A2 microSDXC Kingston Canvas React Plus 128 GB V90 A1 microSDXC Drone: SanDisk Extreme 32 GB V30 A1 microSDHC SanDisk Extreme PRO 32 GB V30 A1 microSDHC Карта пам'яті SanDisk Extreme 512 ГБ V30 A2 microSDXC Lexar 1066x 64 GB V30 A2 microSDXC Kingston Canvas Go! Plus 64 GB V30 A2 microSDXC Kingston Canvas React Plus 64 GB V90 A1 microSDXC Kingston Canvas Go! Plus 128 GB V30 A2 microSDXC Kingston Canvas React Plus 128 GB V90 A1 microSDXC Kingston Canvas React Plus 256 GB V90 A2 microSDXC Samsung PRO Plus 256 GB V30 A2 microSDXC
Standard Voltage	15,4 В
Max Charging Voltage	17,6 В
Тип батареї	Літій-іонний 4S
Хімічна система	Lithium Cobalt
Місткість	77 watt-hours
Output Power	100 W
Вхід	USB-C: 5V to 20V, 5.0A
Вихід	Battery Port: 12V to 17.6V, 8.0A
Interface	USB-C
Вхідна потужність	Approximately 1.2 watts
Точність позиціонування RTK	Fixed RTK: Horizontal: 1 cm + 1 ppm; Vertical: 1.5 cm + 1 ppm
Stabilized System	3-осьовий механічний карданний підвіс (нахил, крен, панорамування)
Механічний діапазон	Tilt: -135° to 45° Крен: від -45° до 45° Панорамування: від -27° до 27°
Контрольований діапазон	Нахил: від -90° до 35° Pan: Uncontrollable
Максимальна швидкість керування (нахил)	100°/с
Діапазон кутових коливань	±0,007°
Sensing System Type	Omnidirectional binocular vision system, with an infrared sensor at the bottom of the aircraft
Вперед	Distance Measuring Range: 0.5 m to 20 m Detection Range: 0.5 m to 200 m Effective Obstacle Avoidance Speed: Flight Speed ≤15 m/s FOV: Horizontal 90°, vertical 103°
Назад	Distance Measuring Range: 0.5 m to 16 m Effective Obstacle Avoidance Speed: Flight speed ≤12 m/s FOV: Horizontal 90°, vertical 103°
Бічний	Distance Measuring Range: 0.5 m to 25 m Effective Obstacle Avoidance Speed: Flight Speed ≤15 m/s FOV: Horizontal 90°, vertical 85°
Вгору	Distance Measuring Range: 0.2 m to 10 m Effective Obstacle Avoidance Speed: Flight Speed ≤6 m/s Кут огляду: спереду та ззаду 100°, зліва та справа 90°
Вниз	Distance Measuring Range: 0.3 m to 18 m Effective Obstacle Avoidance Speed: Flight Speed ≤6 m/s Кут огляду: спереду та ззаду 130°, зліва та справа 160°
Операційне середовище	Front, Rear, Left, Right, Above: Surfaces with clear patterns and adequate lighting (> 15 lux, environments with normal indoor fluorescent light exposure) Below: Surfaces with diffuse reflection material and a reflectivity of >20% (such as walls, trees, people, etc.); Adequate lighting (> 15 lux, environments with normal indoor fluorescent light exposure)
Якість перегляду в реальному часі	Remote Controller: 1080p/30fps
Operating Band [7]	2400–24835 ГГц 5,725–5,850 ГГц
Max Transmission Distance (Obstructed) [9]	Strong Interference (urban landscapes, residential areas, etc.): 1.5-3 km (FCC/CE/SRRC/MIC) Medium Interference (suburban landscapes, city parks, etc.): 3-9 km (FCC), 3-6 km (CE/SRRC/MIC) Weak Interference (remote fields, open farmland, etc.): 9-15 km (FCC), 6-8 km (CE/SRRC/MIC)
Максимальна швидкість завантаження	15 MB/s (with DJI RC Pro Industry Edition)
Latency (depending on environment and mobile device)	Approximately 200 milliseconds
Потужність передавача (ЕІРП)	2,4 GHz: <33 dBm (FCC), <20 dBm (CE/SRRC/MIC) 5.8 GHz: <33 dBm (FCC), <30 dBm (SRRC), <14 dBm (CE)
Система передачі відео	DJI O3 Image Transmission Industry Edition
Max Effective Signal Distance (Unobstructed, No interference) [8]	ФКК: 15 км CE: 8 км SRRC: 8 км МІК: 8 км
Operating Band of Image Transmission [7]	2400–24835 ГГц 5,725-5,850 GHz
Антени	4 antennas, 2 transmitting and 4 receiving
Operating Band of Image Transmission and Transmitter Power (EIRP)	2,4 GHz: < 33 dBm (FCC); <20 dBm (CE/SRRC/MIC) 5,8 GHz: <33 dBm (FCC); <14 dBm (CE); <23 dBm (SRRC)
Протокол Wi-Fi	802,11 a/b/g/n/ac/ax Support 2×2 MIMO Wi-Fi
Wi-Fi Operating Band [7]	2400–24835 ГГц 5,150-5,250 GHz 5,725-5,850 GHz
Wi-Fi Operating Band and Transmitter Power (EIRP)	2,4 GHz: < 26 dBm (FCC); < 20 dBm (CE/SRRC/MIC) 5.1 GHz: <26 dBm (FCC); <23 dBm (CE/SRRC/MIC) 5.8 GHz: <26 dBm (FCC/SRRC); <14 dBm (CE)
Протокол Bluetooth	Bluetooth 5.1
Bluetooth Operating Band	2400–24835 ГГц
Bluetooth Transmitter Power (EIRP)	< 10 дБм
Screen Resolution	1920×1080
Screen Size	5.5 inches
Screen Frame Rate	60 fps
Screen Brightness	1000 nits
Touch-Screen	10-point multi-touch
Акумулятор	Lithium-ion battery (5000 mAh, 7.2 V)
Тип заряджання	100W Battery Charging Hub or USB charger with 12V or 15V specifications is recommended
Номінальна потужність	12 Вт
Storage Capacity	Internal Memory (ROM): 64 GB Supports microSD card usage to increase storage capacity
Час заряджання	Approx. 1,5 hours (measured when only using the 100W Battery Charging Hub to charge the remote control, or when using a 15V USB charger) Approximately 2 hours (measured using a 12V USB charger) Approximately 2 hours and 50 minutes (measured using the 100W Battery Charging Hub to charge the aircraft and remote control at the same time)
Час роботи	Approx. 3 hours
Video Output Port	Mini-HDMI Port
Робоча температура	від -10° до 40°C (від 14° до 104°F)
Storage Temperature Range	< <1 month: -30° to 60° C (-22° to 140° F) One to three months: -30° to 45° C (-22° to 113° F) Three to six months: -30° to 35° C (-22° to 95° F) More than six months: -30° to 25° C (-22° to 77° F)
Температура заряджання	від 5° до 40° C (від 41° до 104° F)
Supported DJI Aircraft [10]	DJI Mavic 3E DJI Mavic 3T DJI Mavic 3M
ГНСС	GPS+GLONASS+GALILEO
Розміри	Antenna is folded and no control sticks are installed: 183.27×137.41×47.6 mm (Length×Width×Height) Antenna unfolded and control sticks are installed: 183.27×203.35×59.84 mm (Length×Width×Height)
Вага	Approx. 680 g
Model Number	RM510B
Footnotes	1. Standard weight of the aircraft (including battery, propellers, and microSD card). Actual product weight may vary due to differences in batch materials and external factors. Use for reference only. 2. The max speed in the EU cannot exceed 19 m/s. 3. Max wind resistance during takeoff and landing. 4. Data measured using the DJI Mavic 3M in a wind-free environment while flying at sea level at a constant speed of 36 kph until there was 0% power remaining. For reference only. Please pay attention to RTH prompts in the DJI Pilot 2 app when flying. 5. Data measured using the DJI Mavic 3M in a wind-free environment hovering over the sea level until there was 0% power remaining. For reference only. Please pay attention to RTH prompts in the DJI Pilot 2 app when flying. 6. Data measured using the DJI Mavic 3M in a wind-free environment while flying at sea level at 57.6 kph until there was 0% power remaining. For reference only. Please pay attention to RTH prompts in the DJI Pilot 2 app when flying. 7. In some countries, the 5.1/5.8GHz frequencies are prohibited, or the 5.1GHz frequency is only allowed for indoor use. Please refer to local laws and regulations before use. 8. Data measured flying in an unobstructed outdoor environment free of interference. It shows the farthest communication distance for one-way, non-RTH flights under each standard. Please pay attention to RTH prompts in the DJI Pilot 2 app when flying. 9. Data measured in an unobstructed environment with typical interference under various standards. The actual flight distance may vary and is for reference only. 10. The DJI RC Plus will support more DJI aircraft in the future.
