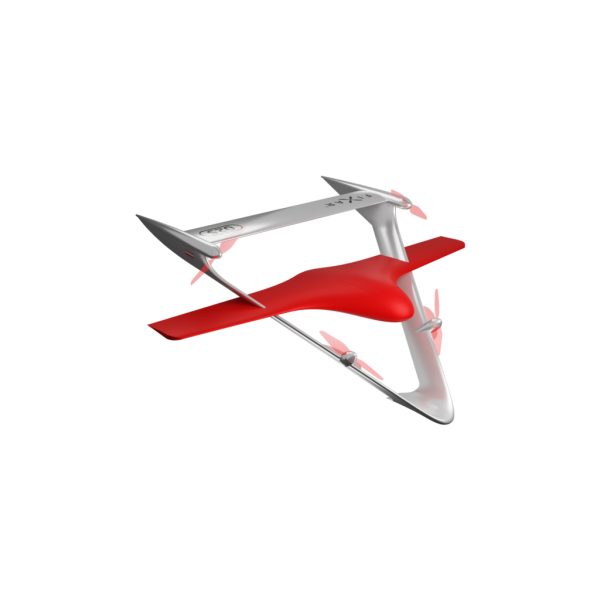

FIXAR 025 VTOL

В наявності

The FIXAR 025 UAV is an excellent tool for safe and stress-free BVLOS missions, which is ensured by an advanced payload security system, BlackBox data backup, UTM API and no additional equipment for launch or landing.

Опис
Додаткова інформація

Опис

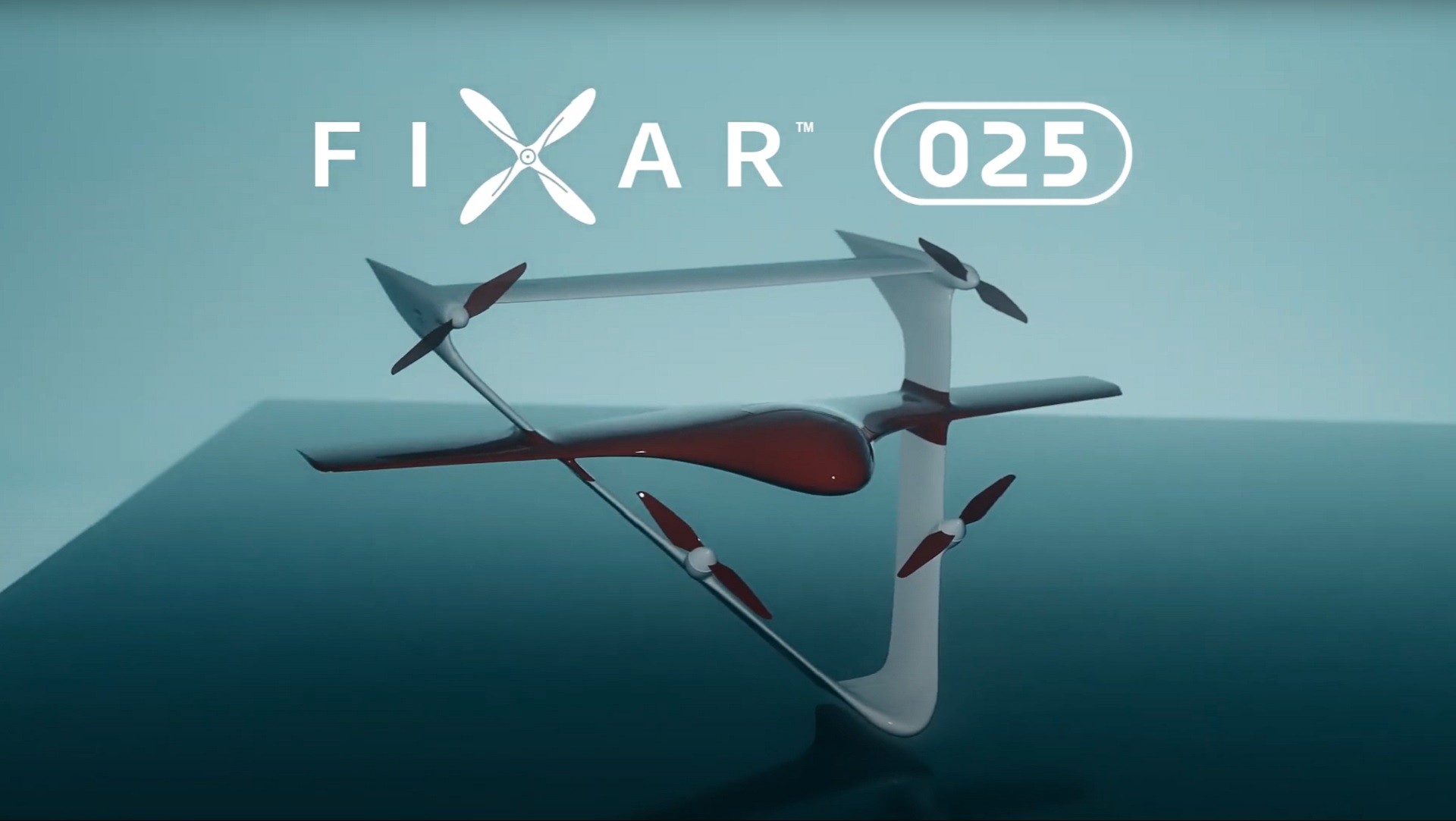

FIXAR 025

VERTICAL TAKEOFF AND LANDING UAV

For Commercial Operations

Enhanced Flight Performance

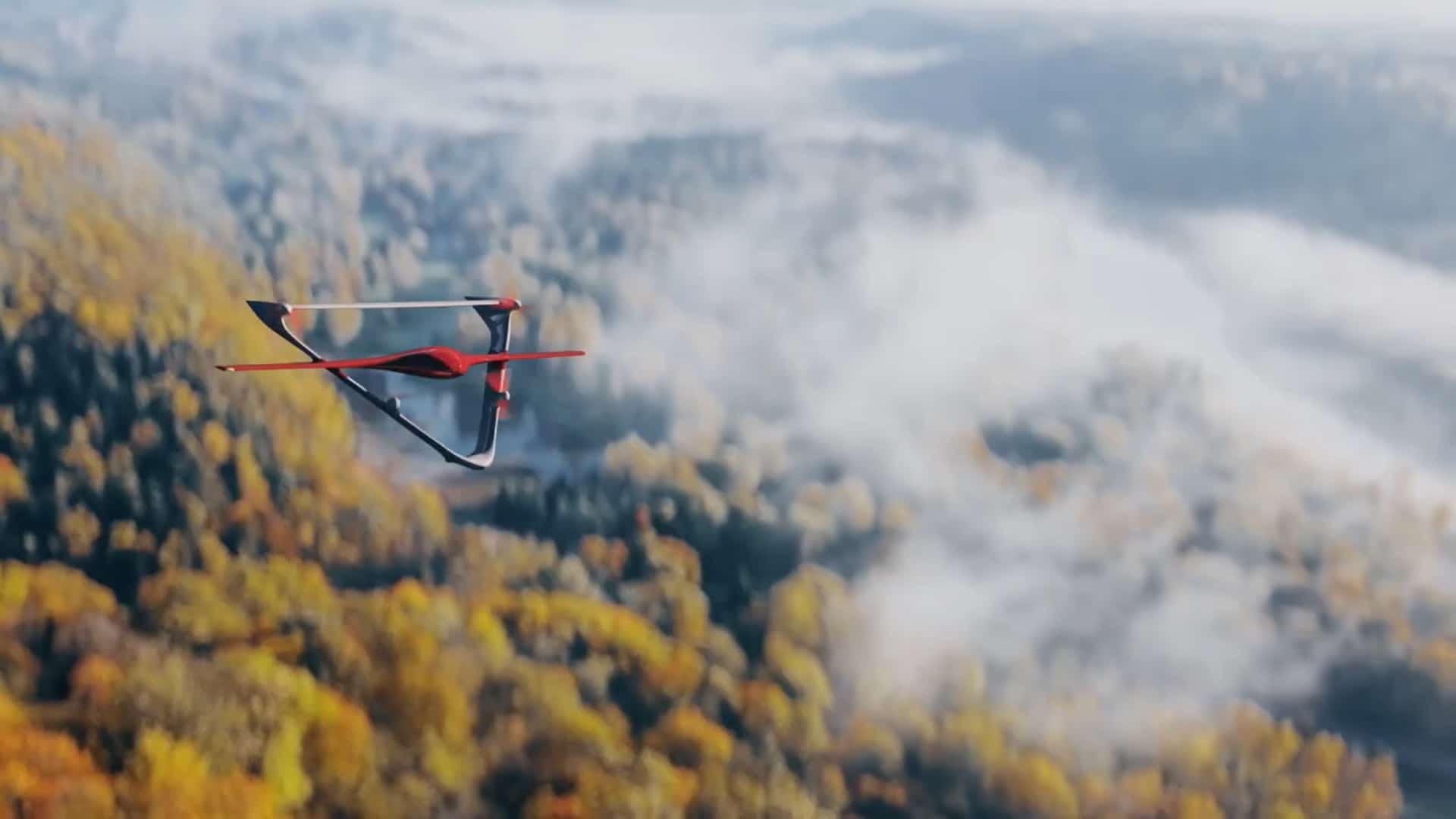

The FIXAR 025 is an autonomous full-electric drone designed to handle large-scale and long-range missions for commercial and industrial applications, such as mapping and inspections, aerial imaging, remote sensing, surveillance and monitoring, and more.

The low-maintenance and easy-to-use drone supports the integration of heavier and more sophisticated professional payload modules and UTM infrastructure to support operations for a single drone or a drone fleet, and the drone autopilot is AI compatible.

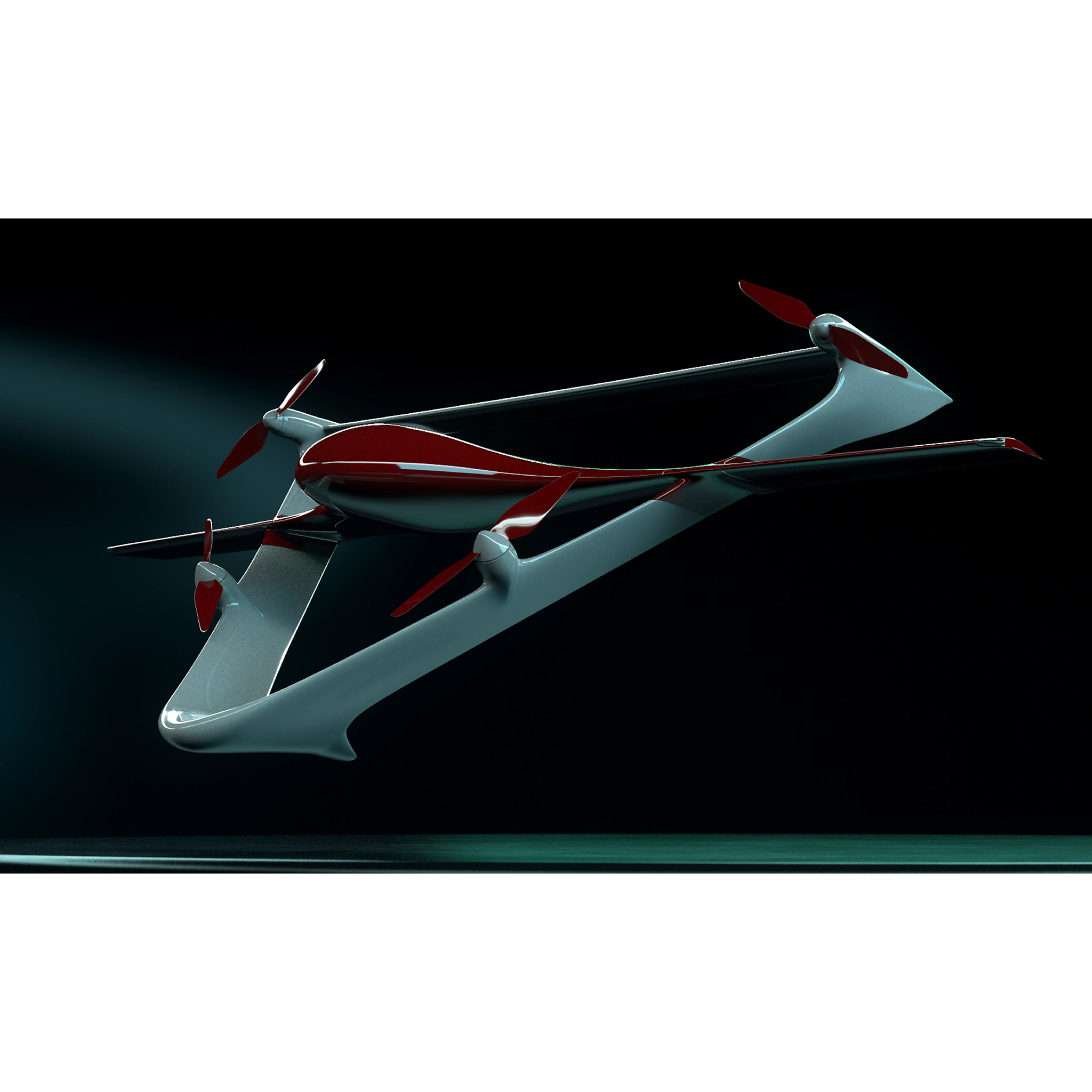

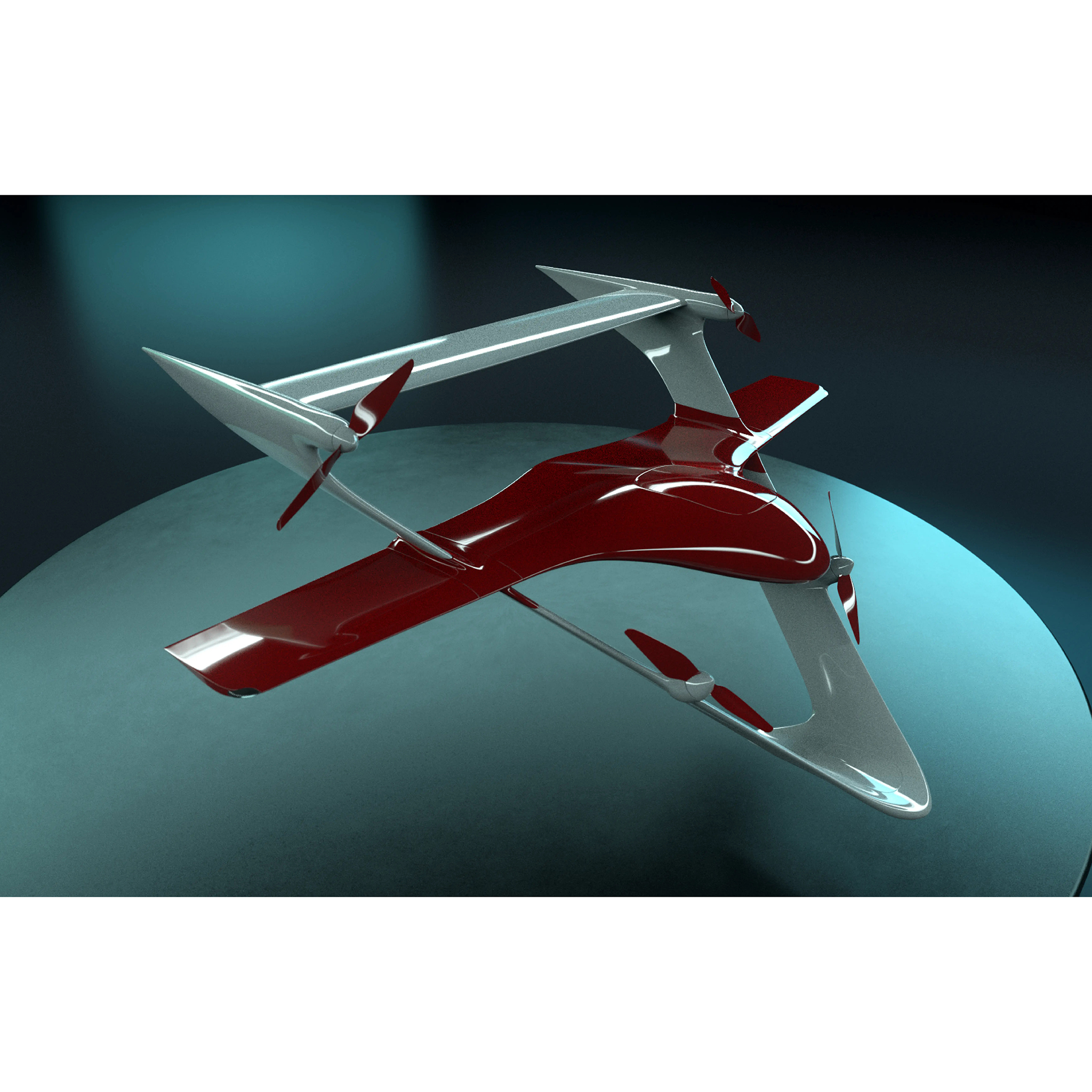

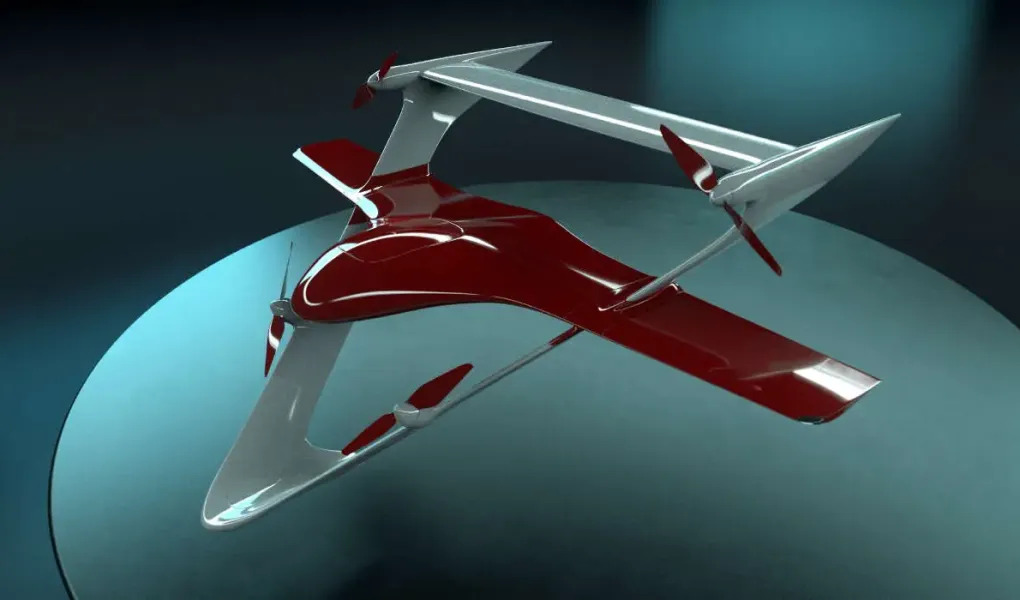

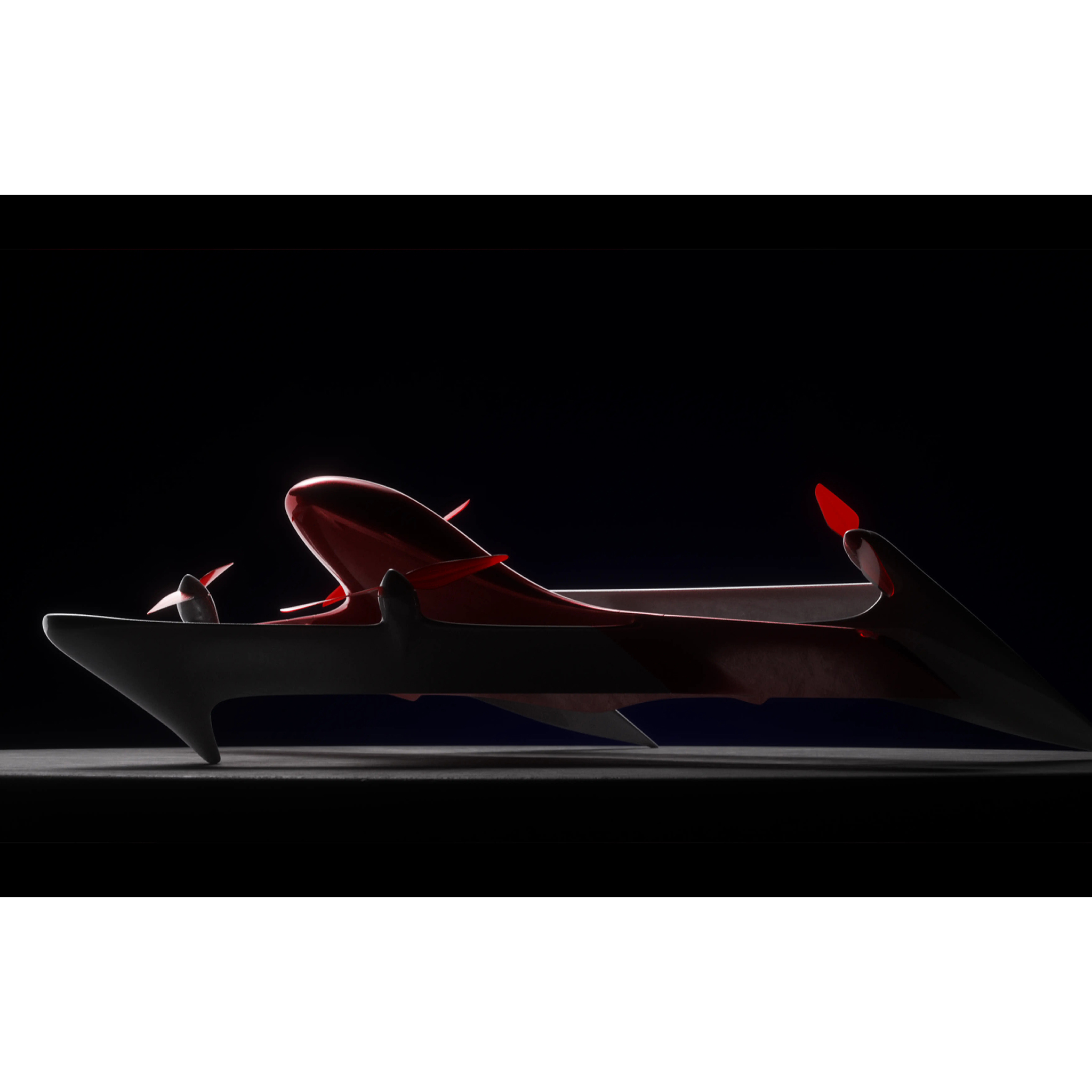

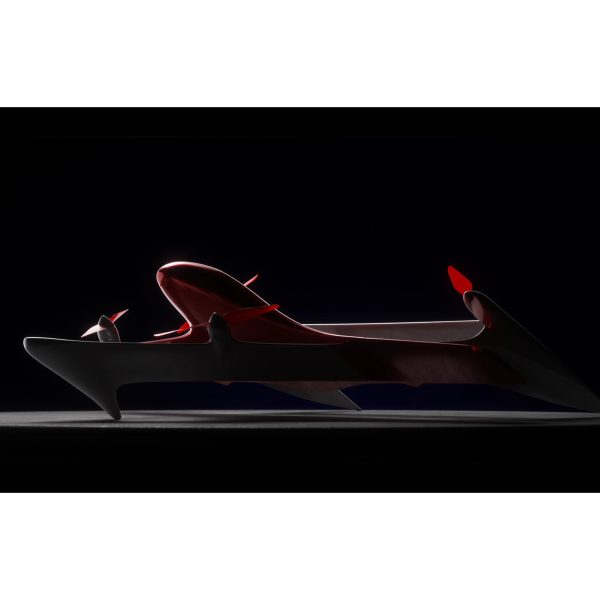

FIXAR 025 UAV

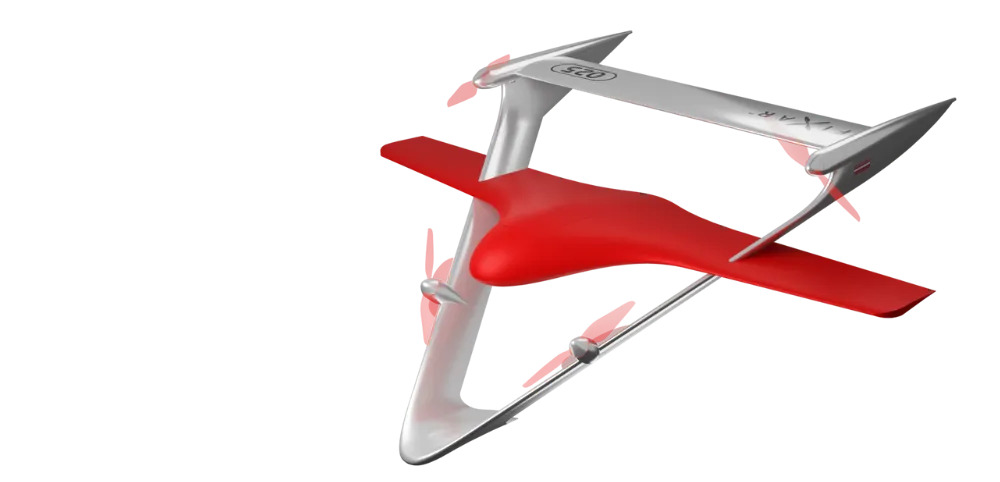

The FIXAR 025’s full-body lift design ensures efficient resource consumption and endurance for long-distance flights.

The FIXAR 025 outdoor drone is fully electric and runs on lithium polymer batteries in comparison with similar-size solutions that run on fuel.

FIXAR XGROUND CONTROL SOFTWARE

The closed-source software allows to build and edit a flight mission and monitor missions in real-time using 3D visualization for one or multiple drones simultaneously. The software has automated mission planning and data flow to make the process even easier and faster.

The setting option is available for experienced operators who prefer to manually adjust mission parameters such as steering angles, etc.

FIXAR AUTOPILOT

Already self-proven in operations with FIXAR 007, the improved proprietary autopilot software version 2.0 provides an autonomous flight.

It is also protected against confidential data breaches and is now compatible with AI and LTE.

Multi-Purpose Drone for Heavy Payloads

FIXAR 025 is a versatile customizable drone providing advanced technology solutions for a wide range of industries.

The drone can be equipped with a variety of heavier sensors and deliver results in fewer flights based on increased flight range and time. FIXAR 025 features a convenient and flexible design of the payload allowing integration with any third-party sensors: RGB, hyperspectral cameras, video cameras, LiDAR scanners, night vision cameras, special dispensers and more.

The FIXAR 025 model features a high drone payload capacity of up to 10 kg (22 lbs) allowing to combine sensors and load heavier equipment onboard. The increased load capacity unlocks an array of more complex and sophisticated sensor integration to serve industries long awaiting to give wings to their data collectors and fly longer distances.

Often sensors carried by commercial UAVs significantly exceed the price of a drone itself, therefore it is crucial that the sensor is well secured. The FIXAR 025 drone is equipped with a payload safety system, which ensures the protection of the payload at every stage of the mission from takeoff to landing.

Додаткова інформація

Тип	Hybrid (VTOL & fixed-wing)
Wingspan	2 800 mm (9.2 ft)
Number of rotors	4
Max Payload	10 kg (22 lbs)
Максимальна злітна вага	25 kg (55 lbs)
Take-off method	Vertical, fully autonomous
Landing method	Vertical, fully autonomous
Protection	Protection against strong electromagnetic fields (resulting from proximity to high voltage power lines, radio or mobile phone base stations, large metal objects, etc.)
Тип батареї	Li-Po
Control Options	CE 868-869 MHz, 500 mW FCC 902-928MHz, 1000mW LTE 4G Satellite navigation
Ability to land / take off at several points	Yes
Change the Flight Path	Yes
Can Land and Take off Anytime and Anywhere	Yes
Flight Time	Up to 3.5 hours
Flight distance	Up to 300 km (186 mi)
Cruise Speed	85 km/h (52.8 mph)
Max Telemetry Range	100 km (62 mi) or unlimited with satellite/GSM
Max Flight Altitude Above Sea Level	5 000 m (16 404 ft)
Wind Resistance	12 m/s (27 mph) during landing and take-off 15 m/s (33 mph) during mission mode
Operating temperature	-30 °С to +60 °С (-22 °F to 140 °F)
Operating weather conditions	IP54
Auto Landing Accuracy	3 meters
Possibility to control without GPSa	Yes, RTH
Control method	xGroundControl software
Operating system	Windows, macOS
Photogrammetry software	Compatible with Drone Deploy, Pix4D, Agisoft Metashape, Bently Context Capture, Reality Capture and more
Supported Files	.KML, .KMZ, .GeoTIFF, .MBTiles, .WMTS
Updates	Free
Security Features	Data logging system BlackBox, Payload safety system, operations and payload data safety system White Box
Various payloads	RGB Camera, Gimbal video camera, LiDAR sensor, Multispectral camera, Self-engineered bulk dispenser etc.
